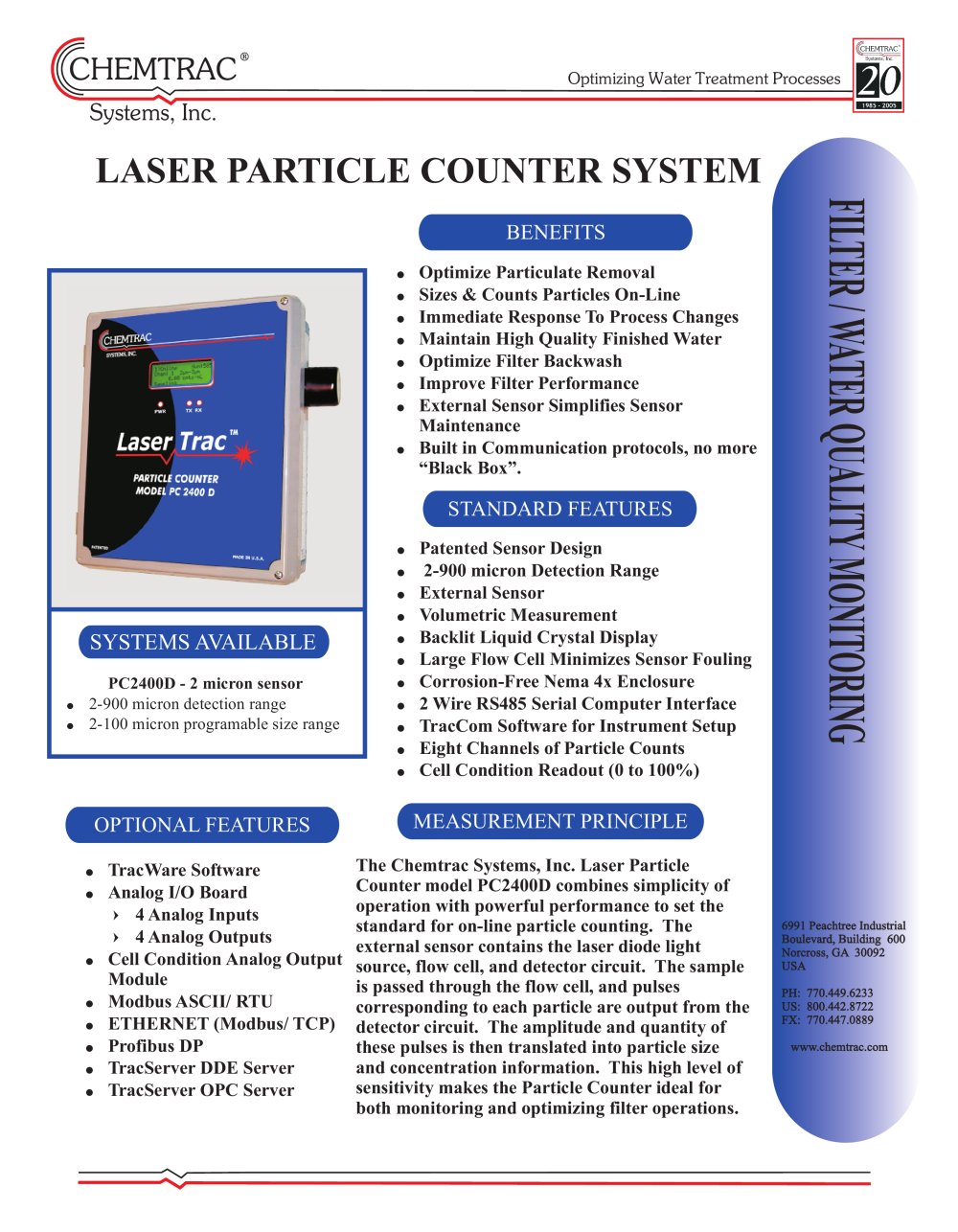

Optimizing Water Treatment Processes FILTER / WATER QUALITY MONITORING ! Optimize Particulate Removal ! Sizes & Counts Particles On-Line ! Immediate Response To Process Changes ! Maintain High Quality Finished Water ! Optimize Filter Backwash ! Improve Filter Performance ! External Sensor Simplifies Sensor Maintenance ! Built in Communication protocols, no more ΓBlack Box. > ! Patented Sensor Design ! 2-900 micron ! External Sensor ! Volumetric Measurement > ! Backlit Liquid Crystal Display ! Large Flow Cell Minimizes Sensor Fouling > PC2400D - 2 micron sensor ! Corrosion-Free Nema 4x Enclosure > ! 2-900 micron detection range ! 2 Wire RS485 Serial Computer Interface > ! 2-100 micron programable size range ! TracCom Software for Instrument Setup ! Eight Channels of Particle Counts ! Cell Condition Readout (0 to 100%) Detection Range > ! TracWare Software The Chemtrac Systems, Inc. Laser Particle Counter model PC2400D combines simplicity of operation with powerful performance to set the standard for on-line particle counting. The external sensor contains the laser diode light source, flow cell, and detector circuit. The sample is passed through the flow cell, and pulses corresponding to ! Analog I/O Board = 4 Analog Inputs = 4 Analog Outputs > 6991 Peachtree Industrial Boulevard, Building 600Norcross, GA 30092 USA PH: 770.449.6233 US: 800.442.8722 FX: 770.447.0889 www.chemtrac.com 6991 Peachtree Industrial Boulevard, Building 600 ! Cell Condition Analog Output Module > Norcross, GA 30092 USA ! Modbus ASCII/ RTU > PH: 770.449.6233 each particle are output from the detector circuit. The amplitude and quantity of these pulses is then translated into particle size and concentration information. This high level of sensitivity makes the Particle Counter ideal for both monitoring and optimizing filter operations. > US: 800.442.8722 ! ETHERNET (Modbus/ TCP) > FX: 770.447.0889 ! Profibus DP > www .chemtrac.com ! TracServer DDE Server ! TracServer OPC Server >

Open the catalog to page 1

HEAD APPROX. 16.0" VENTWEIRWATER(TYP. OF 2)WEIR ARM > R SYSTEMS, INC. SENSOR PWRTX RX TMTMTMTM SAMPLE DRAIN TUBEOVERFLOW > PATENT PENDING MADE IN USA TUBINGDETECTORLOW FLOW TO DRAIN (TYP. OF 3) FLUSHVALVE DRAIN SAMPLE TUBINGMOUNTING CLAMPS INLET VALVEFLUSH DRAIN >

Open the catalog to page 2
