CHLORINE RESIDUAL ANALYZER

Product catalog summary

Overview: The Chlorine Residual Analyzer Model CRA3500 is designed for water treatment applications, including remote sites, chlorine dosing control, and influent/effluent monitoring. It offers low purchase and ownership costs, reduced pH dependency, and various communication protocols for remote interfacing.

Specifications:

Probe Type: Membrane-covered amperometric polarographic three-electrode system.
Measurement: Free or Total Residual Chlorine.
Probe Ranges: 0-2, 0-5, 0-10 mg/l (ppm).
Resolution: 0.01 mg/l (ppm).
Reproducibility: ±5%.
Stability: -2% per month without calibration.
Temperature Range: > 0 up to 40 °C with automatic compensation.
pH Range: 4 to 9.5.
Flow Rate: Approximately 0.5 l/min.
Maintenance: Membrane yearly, electrolyte and calibration reagent quarterly.

Analyzer Features:

Power: 110-240 VAC.
Display: LCD Backlit 128x64 graphical.
Outputs: 2 configurable alarms (relays), 2 4-20mA outputs.
Inputs: Low flow and low buffer alarms.
Communication: Bluetooth (optional), RS485, TCP/IP (Webserver), USB, TTL.
Datalogging: One year at 15-minute intervals.
Event Logging: 500 events.

Optional Features:

Automatic Calibration.
Bluetooth Communications.
Webserver for remote data access.
Carbon Dioxide or Acid Buffer for pH correction if required.

Benefits: The CRA3500 provides reliable chlorine measurement with minimal maintenance and operational costs. It supports remote monitoring and control, enhancing efficiency in water treatment processes.

Catalog excerpts

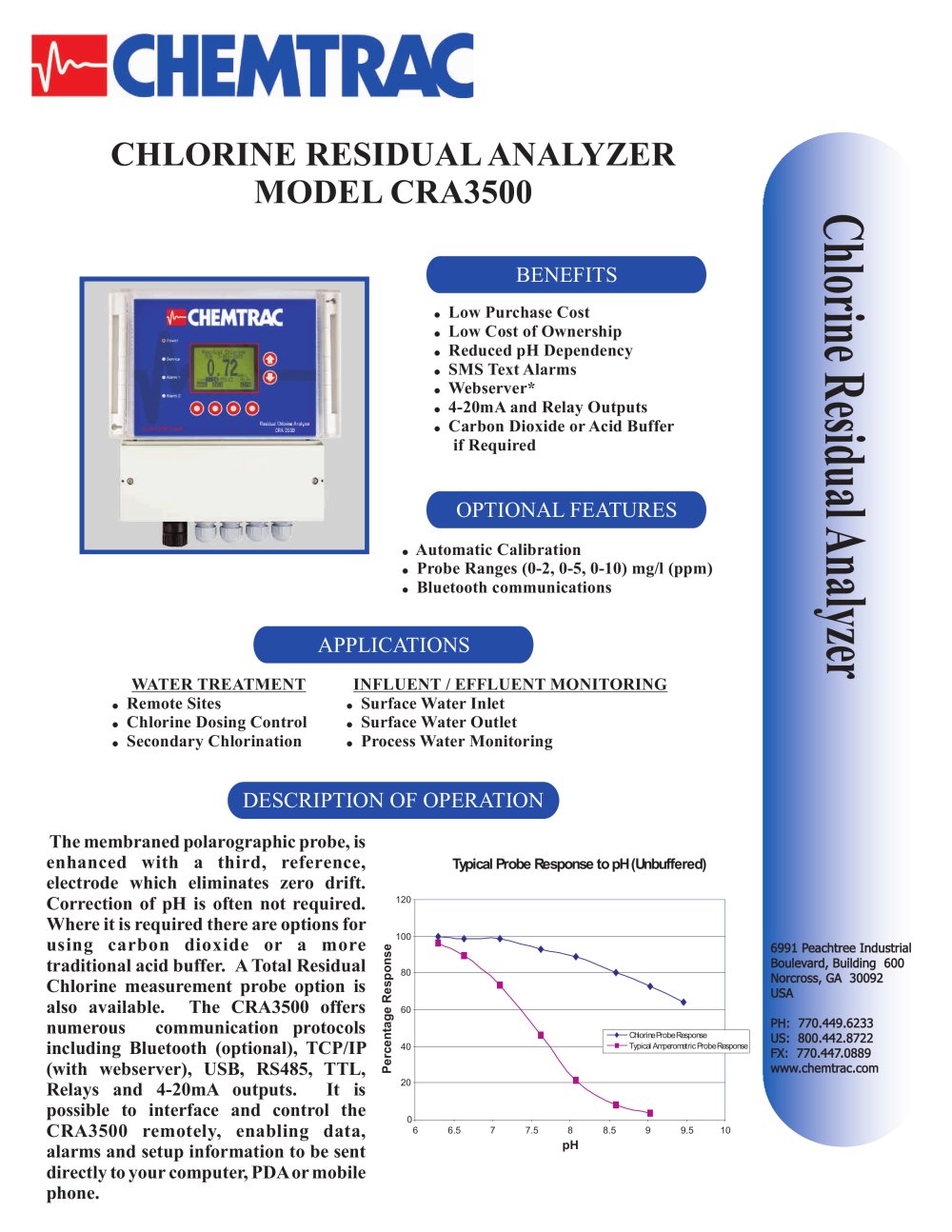

Chlorine Residual Analyzer ! Low Purchase Cost > ! Low Cost of Ownership > ! Reduced pH Dependency > ! SMS Text Alarms > ! Webserver* > ! 4-20mA and Relay Outputs > ! Carbon Dioxide or Acid Buffer if Required > ! Automatic Calibration > ! Probe Ranges (0-2, 0-5, 0-10) mg/l (ppm) > ! Bluetooth communications > WATER TREATMENT INFLUENT / EFFLUENT MONITORING > ! Remote Sites > ! Surface Water Inlet > ! Chlorine Dosing Control > ! Surface Water Outlet > ! Secondary Chlorination > ! Process Water Monitoring > Typical Probe Response to pH (Unbuffered) 6 6991 Peachtree Industrial Boulevard, Building 600Norcross, GA 30092 USA PH: 770.449.6233 Chlorine Probe Response Typical Amperometric Probe Response US: 800.442.8722 FX: 770.447.0889www.chemtrac.com Percentage Response 020406080100120 0204060 80100120 66.577.588.599.510 66.577.588.599.510 820 pH pH size="-2">

Open the catalog to page 1

Type: Membrane covered amperometric polarographic three-electrode systemMeasured: Free Residual Chlorine or Total Residual ChlorineOptional Probe Ranges: 0-2, 0-5, 0-10 mg/l (ppm) Resolution: 0.01 mg/l (ppm) Reproducibility: 5% Stability: -2% per month (without calibration) Working electrode: Gold CathodeCounter electrode: Stainless steel AnodeReference electrode: Silver / silver halide Membrane material: Micro-porous hydrophillic membrane Flow rate: Approximately 0.5 l/min. Temperature range: > 0 up to 40 ѰC Temperature compensation: Automatically by an integrated thermistor pH - range: pH 4...

Open the catalog to page 2
