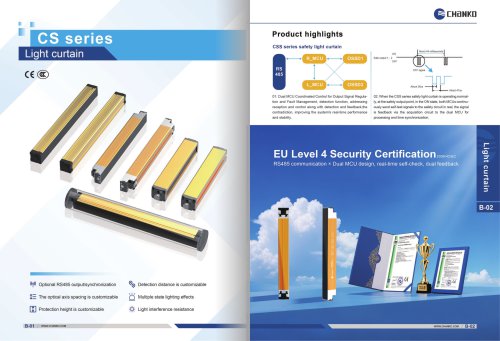

| CS seriesLight curtainC€® ((<!>>) Optional RS485 output/synchronization ^<5 Detection distance is customizable The optical axis spacing is customizable Q Multiple state lighting effects CD Protection height is customizable -j6- Light interference resistance

0CH0NKD Product highlights Achieve remote control and multiple functions Matched with the CSS-RUA series safety light curtain relay control unit & Curtain software Product highlights Area light curtain Optional RS485 output or switch mode output Light projector Light receiver Light curtain VWWV.CHANKO COM / B-04

Detect whether the vehicle exceeds the length or width limits Selection guide CSS series safety light curtain • Minimum detectable object 010mm • Dual detection circuit with dual safety outputs • The 485 synchronous mode is more stable and reliable CSA series area light curtain {Universal Type) • Detectable object ©15-95mm • Customizable sunproof and IP67 model • The detection blind zone is small, with optional switch mode or 485 output Light curtain Light curtain •J Detection of workpiece drop Detection of the presence or absence of workpieces CSF series area light curtain {Ultra-Thin Type)...

0CH0NKD Selection guide Selection guide CSG series area light curtain (Enhanced Type) CSM series area light curtain (measurement type) ■ RS485/Modbus/4-20mA three output modes • Suitable for high-precision detection and measurement CSS-RUA series safety light curtain relay control unit « Pluggable module design, convenient for users to use • Can be directly connected to CSS safety light curtain, eliminating the need for wiring * Divided into NPN and PNP types CSS series safety light curtain optical axis spacing detectable object detection distance protection height connection method output format...

Model naming CSS series safety light curtain Q Minimum detection object $ 10mm o Dual detection circuit, two safely outputs © The RS485 synchronous mode is stable and reliable Power supply voltage Light curtain sensor Output method N:NPN output P:PNP output E:NPN+PNP T: re lay L:4-20mA current M:modbus Technical specifications Minimum detection object Optical axis spacing Number of optical axes Protection height Detection distance Opaque objects £ UlOmm 8/16/32mm 8-192 Light curtain Light curtain category S: Safety light curtain A: Universal type area light curtain F: Front ultra-thin type light...

0CHatiKD Selectiojyaara meters Optica! axis spacing: 8mm Cable connection method: M16 relay type/cable Detection distance: 0.i-3m □: N; NPN output P: PNP output Light curtain X- Note: the safety light curtain needs to be used with a safety light curtain relay control unit. For PNP type, it is recommended to use a CSS-RUAP safety light curtain relay control unit; NPN type is recommended to be paired with CSS-RUAN safety light curtain relay control unit For specific selection, please visit the official website/flagship store for consultation or contact the customer hotline 1. When selecting RWP...

0CH0NKD CSS series safety light curtain, installation bracket size diagram CSS-series safety light curtain control output diagram 0 Light curtain LTotal height of light curtain H Protection height F:Aluminum profile length D;Optical axis spacing 8mm H=(Number of optical axes -1) * Optical axis spacing L=H+20

0CH0NKD CSS-RUA series safety light curtain relay control unit 0 The pluggable type modular design makes it easy for users to operate © It can be directly connected to the CSS safety light curtain, omit cabling © Have NPN and PNP types CSS-RUA series outline dimensions diagram Light projector Technical specifications Model CSS-RUAN CSS-RUAP Input parameters Rated voltage Power consumption 24VDC, maximum 1.5W (excluding safety light curtain) Rated load Contact parameters Light curtain Frequency: 10-55 Hz, single amplitude: 0.35 mm (double amplitude: 0.7 mm); Direction: vertical, front-back, left-right;...

Q Detectable object size <P15-95mm 0 Customizable sunproof and IP67 model Minimum detection objects Optical axis spacing Number of optical axes Protection height Detection distance Response time Switch quantity light curtain JS Note 1 - Anti-light Interference Treatment: The CSA model offers an optional sunlight resistance function, designated by suffix IS its anti-light interference performance is enhanced to 120,000 lx Note 2 - Line Synchronization and RS485 Synchronization: For the CSA 3m sensing range version (receiver + transmitter): If total bus length s 5m, line-synchronized models can...

Optical axis spacing: 30mm Detection distance Q. 1-3m Cable connection method: M12 connector □ : N.NPN P.PNP

0CHBNKD Light curtain B-21 Optical axis spacing: 7Qmm Detection distance 0 1-3m Cable connection method. M12 connector □ : NNPNPPNP S: Upper blind spot D: Optical axis spacing F: Aluminum profile length H: Light curtain protection height H=(Number of optical axes -1) * optical axis spacing L: Total height of light curtain Optical axis spacing 10mm: L=H+54 Optical axis spacing 20mm: L=H+64 Optical axis spacing 40mm: L=H+84 Note: please refer to the rated specificationa'performance parameter table for specific model specifications, dimensions, the optical axis spacing and the total height Light...

CSA series area light curtain control output diagramCA series area light curtain (standard type)Light curtain B-23 O Detectable object $20-100mm © Mo detection distance blind zone €> Self checking program and multiple circuit protection effectively resist interference Technical Specifications Minimum detection object SG Note: the R5485 light curtain needs to be powered off before switching to NO/NC, It defaults to normally dosed. After connecting the black wire at the transmitting end to the positive pole, the power can be switched to normally open when the power is turned off and restarted....

Optical axis spacing: 10mm Detection distance: 0.1-3m Cable connection method: cabie/M12 relay type Cable connection method: cable/M12 relay type Cable connection method: cable/M12 relay type Optical axis spacing: 40mm Cable connection method: cable/M12 relay type Number of Protection height Overall length optical axes (n) H (mm) L (mm)
