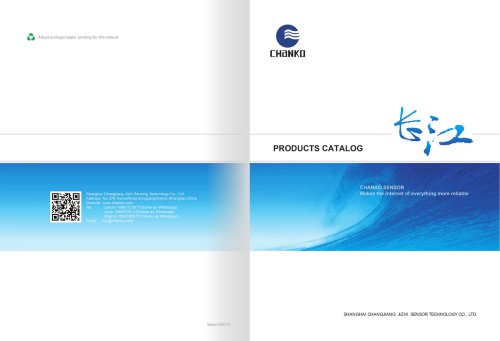

Adopt ecologiol paper printing for this manual CHdNKD PRODUCTS CATALOG Shanghai Changjiang Jizhi Sensing Technology Co., Ltd. Address: No.376 XunyeRoad,SongjiangDistrict.Shanghai,China Website: www.chanko.com Email: [email protected] SHANGHAI CHANGJIANG JIZHI SENSOR TECHNOLOGY CO., LTD.

As a service provider specializing in intelligent sensing technology, high-end sensing products, and comprehensive inspection solutions, Chanko sensor is leveraging its professional expertise to craft unique sensing stories that belong to the Chinese people in this era of accelerated integration between the digital economy and the real economy Become a renowned sensor manufacturing and system solutions provider

A01Intelligent optical fiber sensor D01 Photoelectric CPY smafl square{D15) CPE Square Color Standard(D63) CPA cylindricalD33) CPL Label(D67) CPH Small Square Laser{D42) CPF Short Distance Type(D72) CPG Slot type{D47) CPJ Long Bar(D77) B01Light curtain sensor C01Laser sensor CSS Safety Light Curtain(BIO) CSS Safety Light Curtain Relay Control Unit ' ‘ E01Proximitysensor Inductive type with high temperature resistance 12Q°C/150°C(E09) Inductive type, low-temperature resistant -40°C/-50°C{E11) I? Inductive Anti-Soldering Type(E13) Inductive Square(E14) Inductive cylindrical(E06) Inductive flat...

Changjiang Sensing is a technology innovation company under Shanghai Changjiang Group, focusing on the research and development of intelligent sensing technology and the manufacturing of high-end sensing products. It is committed to becoming a leading global provider of sensing technology and solution services. Headquartered in Songjiang. Shanghai, the birthplace of the G60 Science and Technology Innovation Corridor in the Yangtze River Delta, Adhering to the business philosophy of "drawing wisdom, creating intelligence, and achieving excellence", we actively promote the development of sensing...

Widely used in intelligent logistics warehousing, three-dimensional garages, access doors/gates/elevators, automotive industry, new energy, semiconductors, lithium batteries, 3C electronics, robots, packaging and filling, non-standard automation, wood furniture, textile industry, medical and pharmaceutical, food and beverage, mechanical processing, etc. Application cases Widely used in intelligent logistics warehousing, three-dimensional garages, access doors/gates/elevators, automotive industry, new energy, semiconductors, lithium batteries, 3C electronics, robots, packaging and filling, non-standard...

0CHaNKD CX6 seriesIntelligent fiber optic sensor Product features LED Dual Digital Display & Setting Adjustment Button The setup operation is simple and convenient Light compensation Quick Setting Mode Switch Output indicator L/D indicator indicator Indicator Light MODE Button Quick Setup Threshold Real-time light reception Threshold Output switch STUNE Button Digital Display quantity digital display fine-tuning button L/D button 4 response speed modes available Covering different frequency, time, accuracy, light intensity, and stability requirements High Precision (GIGA) Super High Speed (SHS)...

0CHBNKD Applications Selection Guide Fiber optic sensor A-03 CX6-DN11R CX6-DP11R * Remote batch deployment and configuration • Effectively improve the efficiency of production line installation, setup, and commissioning Upgraded Model (Intelligent Fiber Optic Sensor) • 5 delay timing modes available • Super high speed mode Response time; 50ps Standard Type (Intelligent Fiber Optic Sensor) • The fastest response time: 80ps Professional (Intelligent Fiber Optic Sensor) * The emission power can be manually adjusted Fiber optic sensor A-04 Detecting objects and moving objects within a specific area...

CHANKO CHANKOaD Fiber optic sensor A-05 Fiber optic sensor Optical fiber sensorn Product Code Product code Rated operating voltage 12-24VDC CX6 series product details Q One click adjustment of light intensity and threshold through buttons © Four response speed modes to meet diverse detection needs © Automatic compensation for light reception, ensuring stable detection © 11 powerful functions such as delayed output, zone detection, and differential function Output form N:NPN P:PNP Model NPN output PNP output Super high speed time High speed Response frequency (Action. Reset) Function 10S: Upgraded...

0CHBNKD CX6 Series Outline Dimensional Drawing Instructions Fiber optic sensor Through beam type: When detecting an object, if you want the product to enter the ON state, set it to light up from ON to D when blocking light Reflective type: When detecting an object, if you want the product to enter the ON state, set it to light up from ON to L when the light enters Want to detect the presence/absence of detected objects (2-pomt tutorial) Fiber optic sensor A-07 NPN collector open circuit output PNP collector open circuit output CD Press the STUNE button while the object is being detected Press...

0CHBNKD CX2 series fiber optic cable naming convention CX2 series regional fiber optic cable naming convention Fiber optic sensor Fiber head diameter 3: Representing thread type R3: Representing cylindrical type Temperature grade Fiber optic sensor A-09 Fiber optic cable material F: Plastic optical fiber G: Glass optical fiber Fiber optic cable length

0CHBNKD Selection Guide Selection Guide Corresponding Diffuse reflection standard type Corresponding Through beam standard type Diffuse reflection Standard form _ Fiber optic sensor • Detection distance up to 500mm • The external structure can be either straight or right angled Diffuse reflection Coaxial type • More accurate and stable detection results • Suitable for complex surfaces and precision inspection scenarios Straight line Right angle Needle tube type Straight line 0 Right angle Needle tube type Through beam Standard form • Detection distance up to 2000mm » Multiple specifications and...

0CHBNKD Applications CX2 series fiber optic cable - diffuse reflection standard type • Minimum detected object diameter{mm): 0.01 • Fiber head material: metal • Operating Temperature(°C): - 40 ~ +75 CX2-D4FL (Straight line) Size: M4 Minimum bending radius: R5 Detection distance: 0-2Q0mm Flexible protective lube Check whether the edge of the workpiece is flat - Through beam straight lines Check if the wire of the winding machine is exhausted - Through beam angle Fiber optic sensor 2-jpl Minimum bending radius: RIO Detection distance: 0-500mm . Flexible protective lube A-13 Detecting the presence...
