VACUUM CONTACTOR

Product catalog summary

Background:
CG began manufacturing vacuum contactors in 2001-02, developing the technology in-house. These contactors range from 1.1 kV to 12 kV, with approximately 7000 units supplied globally.

Salient Features:

High mechanical and electrical life
Flexible pole unit selection for specific applications
High reliability with few moving parts
Low maintenance and cost-effective
Low chopping current
Encapsulated structure for reliability in harsh environments
Vacuum interrupters produced in-house

Design:
The product design is validated using advanced electrostatic and magnetic field analysis software to ensure stress distribution.

Applications:

Capacitor switching for reactive power compensation
Switching of reactors
Resistive load switching in heaters and ventilation systems
Neutral grounding of generators and soft-starters
Motor switching in pumping stations, cranes, lifts, and hoists
Transformer switching

Testing Facility:
Includes a range of medium to high voltage products and power quality products.

Contact Information:
For divisional marketing and regional contacts, emails are provided for different regions in India and international inquiries.

Catalog excerpts

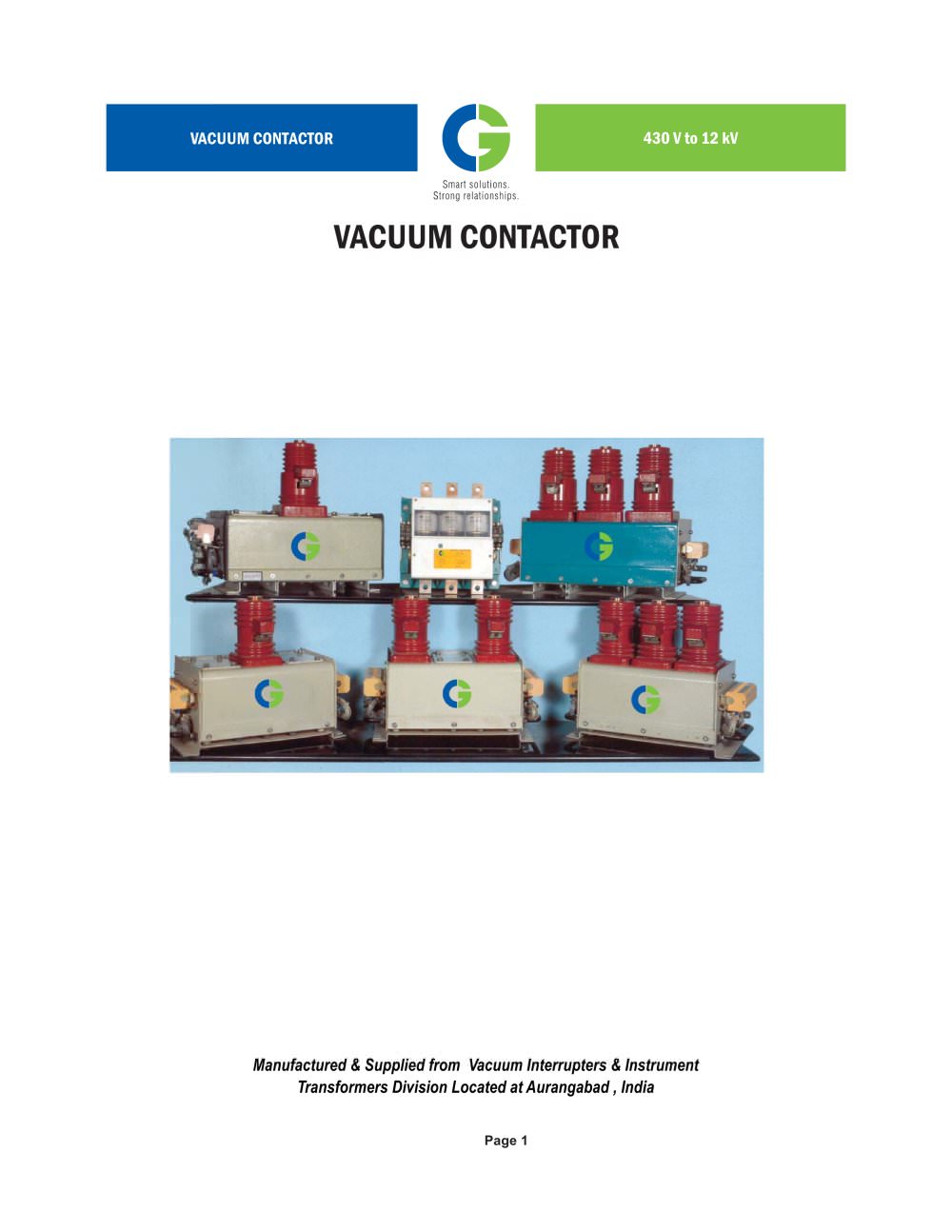

HT pdf.cdr table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Arial", sans-serif; } .font2 { font:9.00pt "Arial", sans-serif; } .font3 { font:17.00pt "Arial", sans-serif; } .font4 { font:43.20pt "Arial", sans-serif; } c VACUUM CONTACTOR Smart solutions. Strong relationships. VACUUM CONTACTOR Manufacture! & Supplied from Vacuum Interrupters & Instrument Transformers Division Located at Aurangabad, India Page 1

Open the catalog to page 1

HT pdf.cdr table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:8.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } VACUUM CONTACTOR Background : CG commenced manufacturing of vacuum contactors in the year 2001-02. This technology has been developed in-house by CG. The vacuum contactors manufactured are in the kV range of 1.1 kV to 12 kV. Since then, nearly 7000 contactors have been supplied to Indian and international customers Salient Features of CGmake VacuumContactor: 1. High mechanical and electrical life 2. Flexibility in selection of pole...

Open the catalog to page 2

HT pdf.cdr table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:6.00pt "Arial", sans-serif; } .font2 { font:7.00pt "Arial", sans-serif; } .font3 { font:8.00pt "Arial", sans-serif; } .font4 { font:9.00pt "Arial", sans-serif; } .font5 { font:12.00pt "Arial", sans-serif; } VACUUM CONTACTOR Testing Facility : Other Product Ranges from the Division ■ Medium Voltage CTs & IVTs up to 36 kV ■ Condenser Bushings 52 kV to 72.5 kV ■ Vacuum Interrupters up to 52 kV ■ Power Quality Products - Capacitor Switch ; Load Break Switch ; LT &...

Open the catalog to page 4

VACUUM CONTACTOR

VACUUM CONTACTOR
