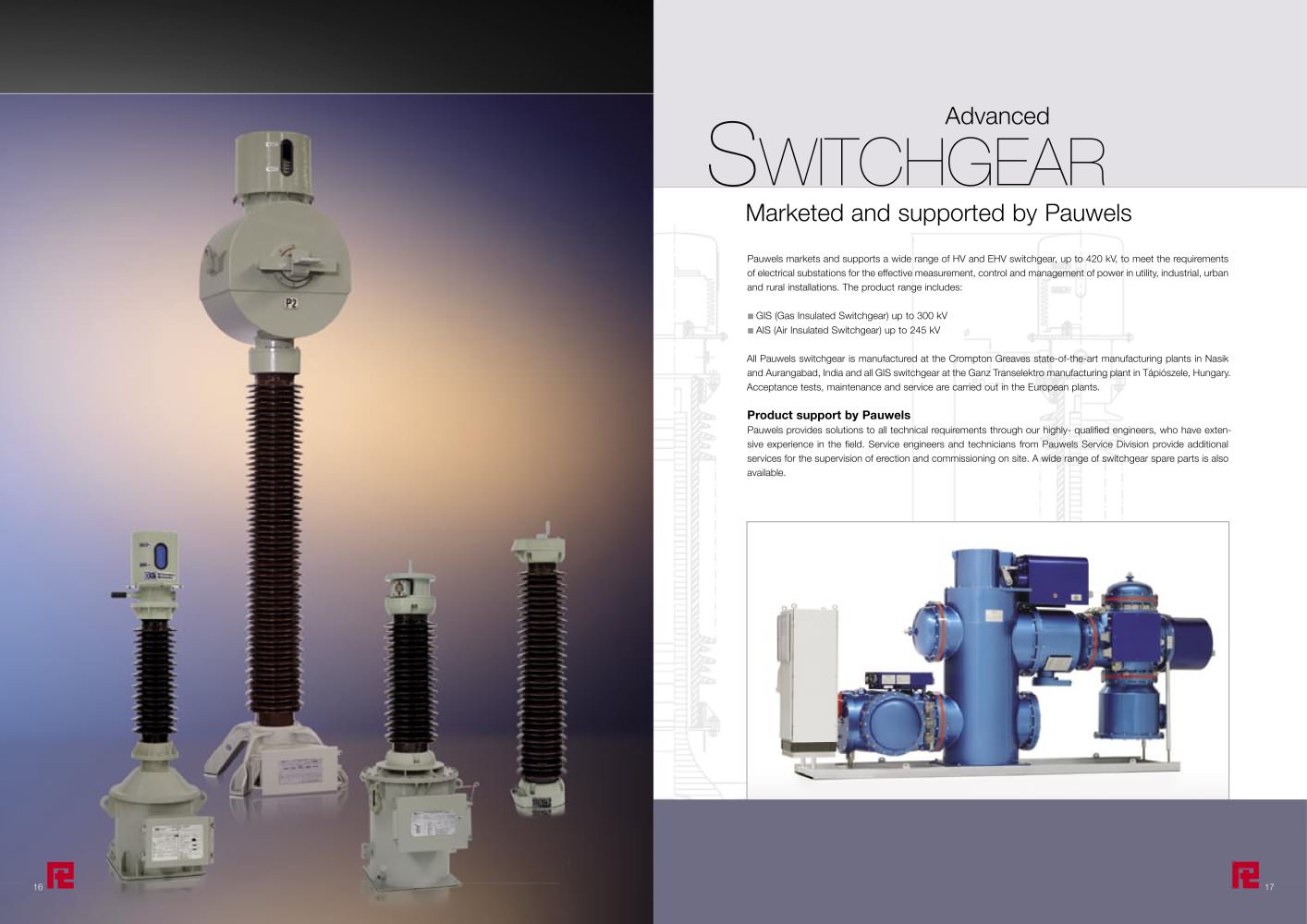

switch gear - 1

Pauwels markets and supports a wide range of HV and EHV switchgear, up to 420 kV, to meet the requirements of electrical substations for the effective measurement, control and management of power in utility, industrial, urban and rural installations. The product range includes: > GIS (Gas Insulated Switchgear) up to 300 kV > ή AIS (Air Insulated Switchgear) up to 245 kVAll Pauwels switchgear is manufactured at the Crompton Greaves state-of-the-art manufacturing plants in Nasik and Aurangabad, India and all GIS switchgear at the Ganz Transelektro manufacturing plant in Tpiszele, Hungary. Acceptance tests, maintenance and service are carried out in the European plants. > Pauwels provides solutions to all technical requirements through our highly- qualified engineers, who have exten-sive experience in the field. Service engineers and technicians from Pauwels Service Division provide additional services for the supervision of erection and commissioning on site. A wide range of switchgear spare parts is also available. > 16 17 size="-1">

Open the catalog to page 1
switch gear - 2

Manual and motorized operating mechanisms can be provided. Mechanical interlocks between main circuits and earthing blades are standard. All disconnectors are fully type tested at laboratories like CPRI and ERDA as per IEC 60129 and IEC 62271-102. The new generation of polymeric housed surge arresters incorporates a superior polymeric material that is recognised by the industry. The station class polymeric surge arresters are designed & tested in accordance with the IEC 60099-4 standard. They are suitable for both indoor & outdoor applications and provide excel-lent protective...

Open the catalog to page 2
