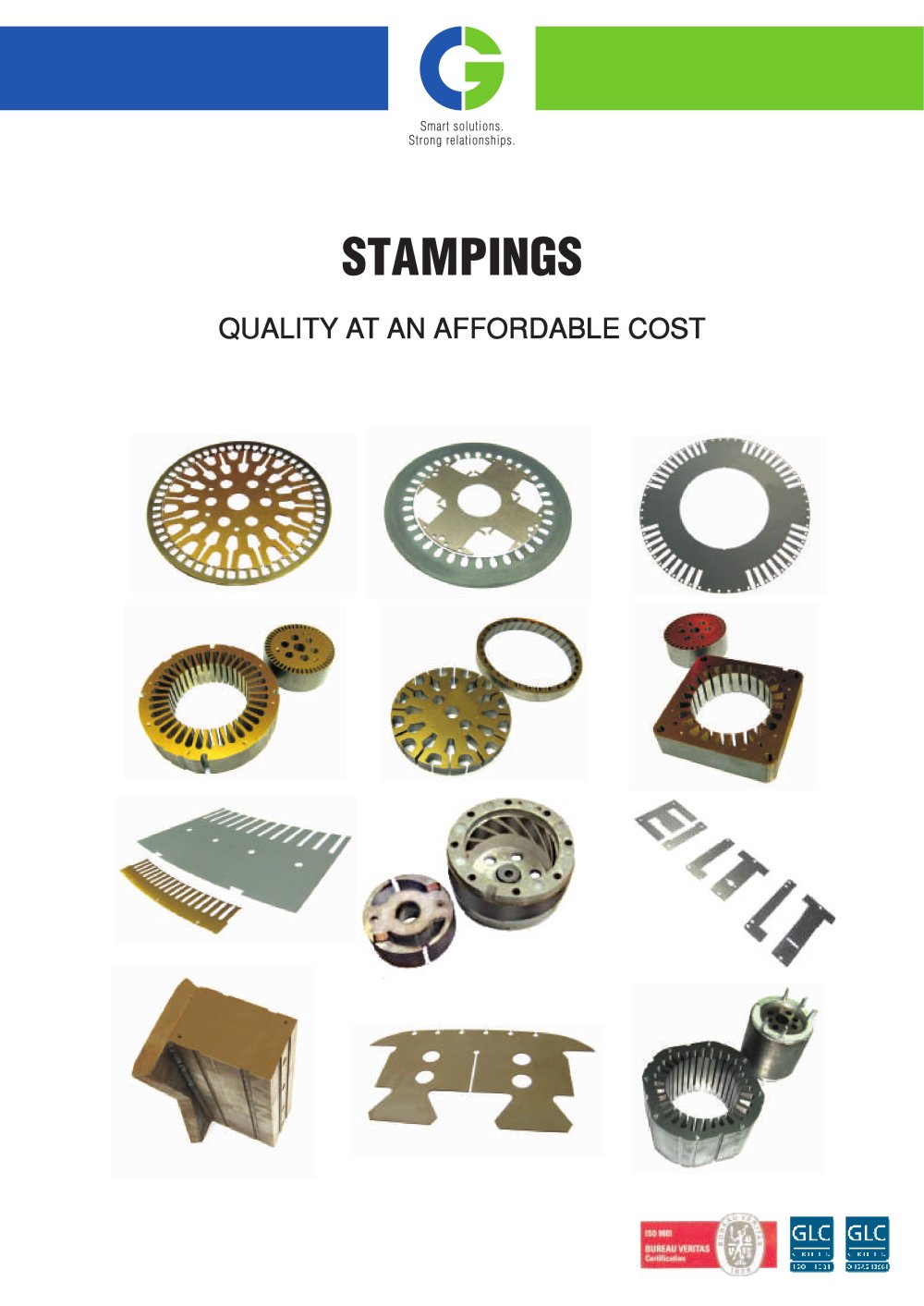

STAMPING - 1

Brochure.cdr table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:10.00pt "Arial", sans-serif; } .font3 { font:17.00pt "Arial", sans-serif; } .font4 { font:30.00pt "Arial", sans-serif; } .font5 { font:31.00pt "Impact", sans-serif; } .font6 { font:17.00pt "Tahoma", sans-serif; } Smart solutions. Strong relationships. STAMPINGS QUALITY AT AN AFFORDABLE COST ( ^Jf'J^.m-'-,," -j^*. ^» glcIglc

Open the catalog to page 1
STAMPING - 2

Brochure.cdr table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:11.00pt "Arial", sans-serif; } STAMPINGS INTRODUCTION Crompton Greaves Ltd., the pioneer and leader in the Electrical Industry for last seven dcades, manufactures its own requirement of Stampings & Laminations for the entire range of Electric Motors, Fans, Pumps and Chokes. Our Stampings Division is fully equipped with the latest High Speed Blanking lines, 'H' frame high tonnage presses and CNC prcision notching machines. We are also equipped with ultra modem heat treatment facility having continuous...

Open the catalog to page 2
STAMPING - 3

Brochure.cdr table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:11.00pt "Arial", sans-serif; } RODUCT RANGE Ail types of Electrical Motor Stampings, Stator/Rotor auto stitched, Stator riveted/ cleated and Rotor die cast as per customer requirements. Օ Ail types of Choke Laminations. AN types of Fan, Mixer, Submersible and Mono-block Pumps, Windmill, Hydro/Turbo Generator Stampings. Օ Any other types of prcision Stampings as per spcifie customer requirements including manufacturing of tooling for the same.

Open the catalog to page 3
STAMPING - 4

HT pdf.cdr table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:12.00pt "Arial", sans-serif; } TOOL DESIGN & TOOL ROOM STAMPINGS Our Tool Room is equipped with more than forty prcision machines, Prominent among them are: Swiss make CNC wire eut Electric Discharge Machines having capacity up to 400 X 700mm co-ordinate travel. 镕 Jig Boring Machine with digital read-out having capacity up to 1120 X 710mm co-ordinate travel. Jig Grinder with planetary and slot grinding attachments and optical rotary table. Օ NC Milling and Boring Machine. VMC with FANUC control...

Open the catalog to page 4
STAMPING - 5

HT pdf.cdr table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:12.00pt "Arial", sans-serif; } 'KENT' Prcision Surface Grinder

Open the catalog to page 5
STAMPING - 6

HT pdf.cdr table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:12.00pt "Arial", sans-serif; } STAMPINGS QUALITY We are fully equipped for checking of Magnetic and Mechanical properties (BH curve, watt loss & magnetization for standard strips & core packs) of material. Օ With the help of our Global R&D center we can analyse the chemical composition of steel, grain orientation for heat treated Laminations, insulation & coating measurement. We have a dedicated team to monitor & improve Cpk for in process and final products to meet six-sigma quality levels.

Open the catalog to page 6
STAMPING - 7

HT pdf.cdr table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:12.00pt "Arial", sans-serif; } STAMPINGS We have two manufacturing facilities, one at Kanjurmarg, Mumbai and other at MIDC, Ahmednagar with a combined capacity of 25000 MT. We have a ambitious plan of enhancing our capacity to meet the ever growing need of our customers. Shop Floor view of Mumbai Shop Floor view of Ahmednagar Plant

Open the catalog to page 7
STAMPING - 8

HT pdf.cdr table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:12.00pt "Arial", sans-serif; } MANUFACTURING FACILITES STAMPINGS Our state-of-the-art manufacturing facilities include the latest machinery such as: High Speed Blanking presses up to 300 ton capacity running at 250 strokes per minute with progression dies and auto-feeders. Օ Schuler CNC Notching Machine with 16 ton capacity for circular & segmentai Stampings, 300 -1500 mm diameter for circular Stampings, and 300 - 2800 mm diameter for segmentai Stampings. Prթcision Notching Machines up to 16 ton...

Open the catalog to page 8
STAMPING - 9

HT pdf.cdr table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:8.00pt "Arial", sans-serif; } .font1 { font:12.00pt "Arial", sans-serif; } Crompton Greaves Limited Stampings Division - Industrial Systems Unit -1: Kanjur Marg (East), Mumbai 400 042, India T: +91 22 6755 8725 F: +91 22 2578 7970 Unit - II: Plot No B 110, M.I.D.C., Ahmednagar 414 111, India T: +91 241 661 0525 F: +91 0241 661 0511 E: M6.Marketing@cgglobal.com Registered Office: CG House, 6* Floor, Dr Annie Besant Road, Worli, Mumbai 400 030, India W: www.cgglobal.com

Open the catalog to page 9
