RAILWAY COACH APPLICATION

Product catalog summary

Product Overview:
The document details the specifications and advantages of the DC Brushless Fan (Voyager) designed for railway coach applications, specifically for Indian Railways. It highlights the use of state-of-the-art BLDC technology, making it suitable for tropical and Indian conditions.

Specifications:

Type: Brushless DC Fan
Reload Voltage: 09-440DC
Input Power: 32W
Sweep: 400mm
Fan Weight: 6.5 Kg
Air Delivery: 60 Cum/min
Noise Level: 55 dBA

Performance Comparison:

Higher air delivery and wider delivery cone compared to traditional fans.
Lower noise levels for increased passenger comfort.
Lower power consumption leading to continuous power savings.
Anti-theft features provided.

Advantages:

No periodic maintenance required, reducing housekeeping costs.
Lighter fan for easy installation.
Long life and value for money.

Installation Details:
The document includes a dimensional drawing and installation instructions, specifying the use of M8 slotted hex head screws for guard fixing and hollow dowel pins for blade mounting.

Contact Information:
Contact details for divisional and marketing offices across India are provided for further inquiries.

Catalog excerpts

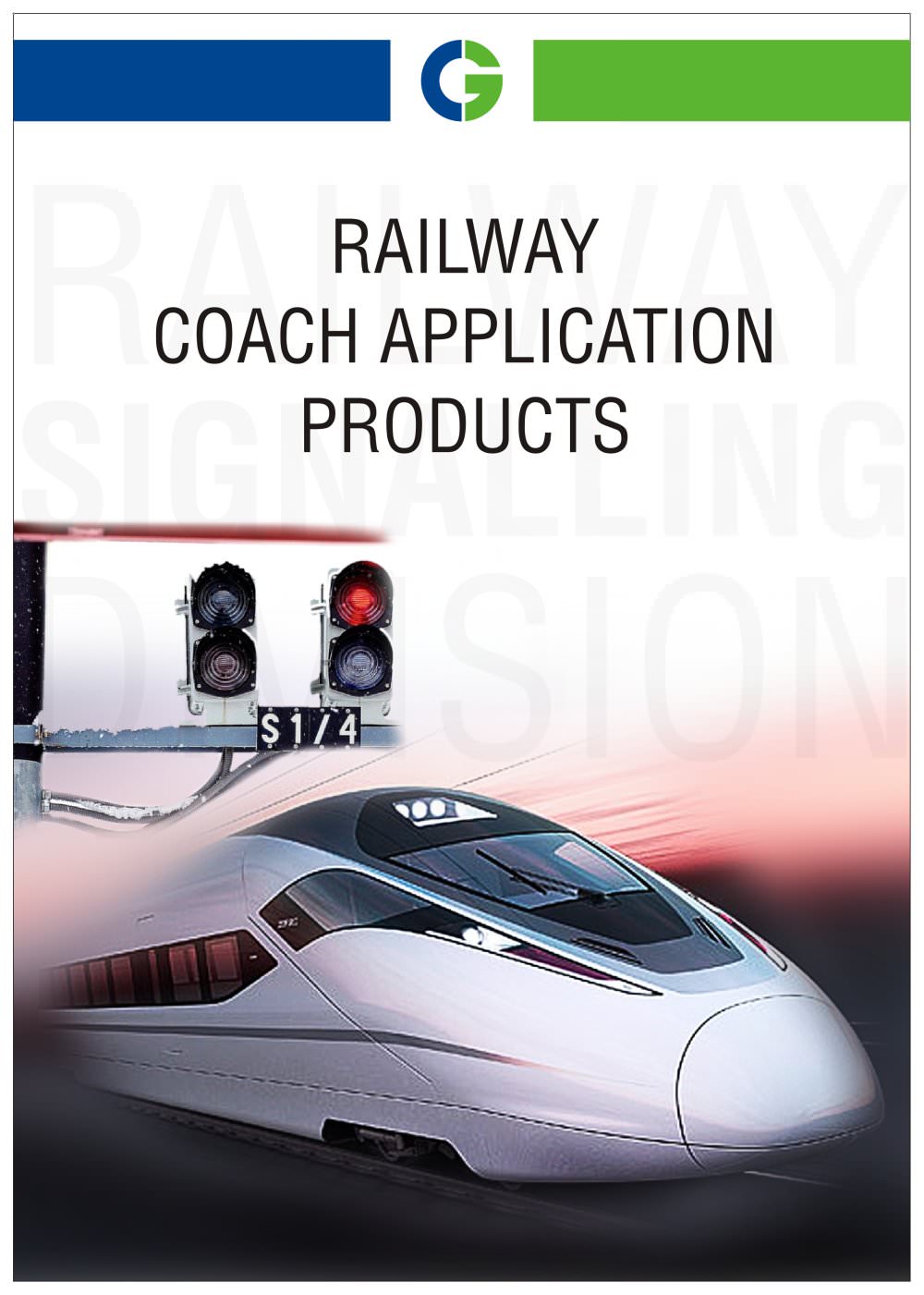

CG_COLOUR_MANUAL_for_CAPACTOR_S.PDF table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:35.00pt "Arial", sans-serif; } RAILWAY COACH APPLICATION PRODUCTS

Open the catalog to page 1

CG_COLOUR_MANUAL_for_CAPACTOR_S.PDF table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:8.00pt "Arial", sans-serif; } .font3 { font:10.00pt "Arial", sans-serif; } .font4 { font:12.00pt "Arial", sans-serif; } DC BRUSHLESS FAN (Voy; AMATIC VIEW Figure 1 Dimensional Drawing State of the art BLDC technology Օ Specially developed for Indian Railways Ideally suited for tropical & Indian conditions Comparison of performance at a glance Sweep 400mm Fan weight (Kg) Inputs power (Watts)...

Open the catalog to page 2

CG_COLOUR_MANUAL_for_CAPACTOR_S.PDF table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Arial", sans-serif; } .font2 { font:10.00pt "Arial", sans-serif; } .font3 { font:20.00pt "Arial", sans-serif; } Advantages No periodic maintenance & part replacements saving on house keeping Low noise, Higher Passenger comfort Higher air delivery, Wider delivery cone Lower power consumption, Continuous Power Saving Lighter fan, easy Installation Long life, value for money Figure 2 Installation 42

Open the catalog to page 3

CG_COLOUR_MANUAL_for_CAPACTOR_S.PDF table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.60pt "Arial", sans-serif; } .font1 { font:6.00pt "Arial", sans-serif; } .font2 { font:8.00pt "Franklin Gothic Medium", sans-serif; } Smart solutions. Strong relationships. DIVISIONAL OFFICE Railway Signalling Division 11-B, Sector - 1, Pithampur Dist. Dhar, MP 454 775, INDIA MARKETING OFFICES NORTH Vandana Building, 11 Tolstoy Marg, New Delhi -110001. Tel : 011- 3041 6300, 6922 - 24 Fax : 011 - 2332 4360 E-mail : [email protected] EAST 50, Chowringhee Road, Kolkata 700 071....

Open the catalog to page 4
