AC Generators

AC Generators
1 / 11 PagesView full catalog

AC Generators

Product catalog summary
Overview: Crompton Greaves offers a range of AC Generators from 5 kVA to 625 kVA, utilizing advanced European technology for optimal performance. These generators are self-excited, self-regulated, and produced in an ISO 9001 certified facility.
Specifications: The generators feature various specifications such as rated voltage options (415V, 380V, 400V for 3-phase and 220V, 230V for single-phase), speed options (1500 RPM standard, 1800 RPM optional), and insulation class 'H'. They are designed for continuous duty (S1) and can handle short circuits and overloads.
Special Features: These generators are easy to maintain, have high motor starting capability, and are compact and sturdy, making them suitable for applications in telecom, defense, agriculture, marine, and more.
Standards Compliance: The generators comply with IEC 34, BS 5000, EN 50081, and IS 4722 & 13364 standards, and feature the CE mark for brushless designs.
Mechanical Features: The generators include aluminum frame die-cast stators, high-quality steel shafts, dynamically balanced rotors, and aluminum fans for effective cooling.
Automatic Voltage Regulator (AVR): The AVR offers under-speed and over-excitation protection, is designed for thyristor loads without additional filters, and supports parallel operation for certain models.
Winding and Insulation System: Armature coils are made from dual-coated class 'H' copper wires, with an insulation system impregnated with polyester resin for rigidity and environmental protection.
Performance: Detailed efficiency ratings for various models under different load conditions are provided, emphasizing the high efficiency and reliability of the generators.
Dimensions: Detailed dimension drawings for single and double bearing AC generators are included, specifying various frame sizes and mounting options.
See more

Catalog excerpts

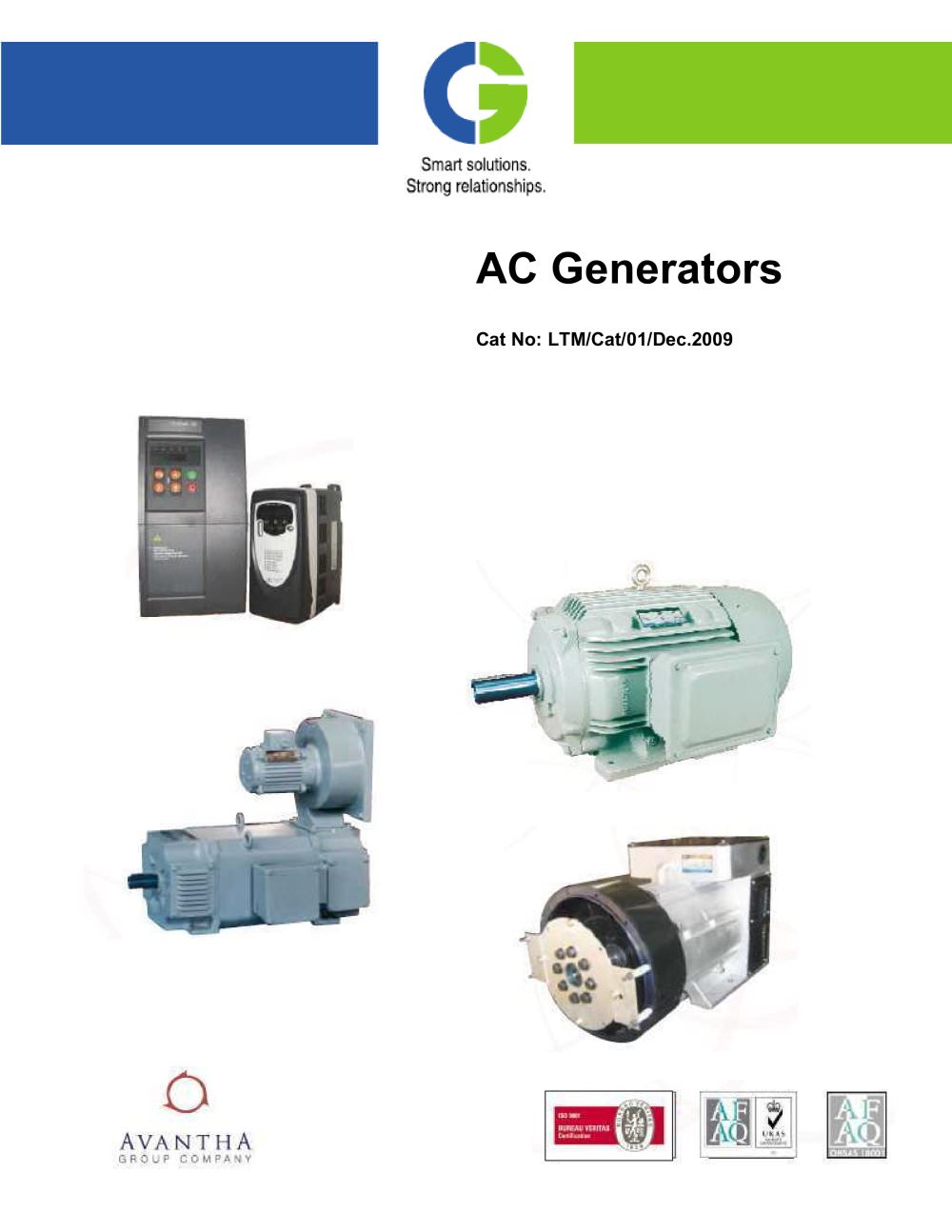

AC Generators-1

last page.pdf table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:26.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Verdana", sans-serif; } .font2 { font:10.00pt "Verdana", sans-serif; } Smart solutions. Strong relationships. AC Generators Cat No: LTM/Cat/01/Dec.2009

 Open the catalog to page 1
AC Generators-2

last page.pdf table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:15.00pt "Trebuchet MS", sans-serif; } 5 kVA to 625 kVA From 132 to 355 Frame

 Open the catalog to page 2
AC Generators-4

last page.pdf table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Trebuchet MS", sans-serif; } .font1 { font:8.00pt "Trebuchet MS", sans-serif; } SPECIAL FEATURES | Ease of maintenance with integrated components and outboard Exciter/Rotating Rectifier. | A reliable long life with superior class 'H' insulation. | Higher motor starting capability. | Compact, light and sturdy die cast aluminum stator for frames upto 250, offer superior finish. | Specially designed compact slipring and brush assembly. | High thyristor load withstand capability for Cell-Phone and...

 Open the catalog to page 4
AC Generators-5

last page.pdf table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Trebuchet MS", sans-serif; } .font1 { font:8.00pt "Trebuchet MS", sans-serif; } .font2 { font:9.00pt "Trebuchet MS", sans-serif; } .font3 { font:20.00pt "Trebuchet MS", sans-serif; } OPERATING IN DIFFERENT ENVIRONMENTS | For use of the AC Generator at altitudes higher than 1000 m. above the sea level, it is necessary to derate by a factor of 4% for every 500 m above 1000m | If the ambient temperature exceeds 40 deg. C, the derating factor to be incorporated is 4% for every 5 deg. C of increase....

 Open the catalog to page 5
AC Generators-10

last page.pdf table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:9.00pt "Impact", sans-serif; } .font1 { font:7.00pt "Verdana", sans-serif; } .font2 { font:9.00pt "Verdana", sans-serif; } Northen Rgion Sales Office : New Delhi : Vandana, 11, Tolstoy Marg, New Delhi -110 001 Phones: (011)30416300 Jalandhar : 416-417,3rd Floor, Prestige Chambers, GT Road, Jalandhar -144 001 Phones: (0181)3240990 Lucknow : Saran Chambers II, 3rd Floor, 5 Park Road, Lucknow - 226 001 Phones :(0522) 3018850 Jaipur : Church Road, R 0. Box. No. 173, Jaipur-302 001 Phones: (0141)3018800 Eastern...

 Open the catalog to page 10
AC Generators-11

last page.pdf table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Impact", sans-serif; } .font1 { font:9.00pt "Impact", sans-serif; } .font2 { font:7.00pt "Verdana", sans-serif; } .font3 { font:10.00pt "Verdana", sans-serif; } .font4 { font:16.00pt "Verdana", sans-serif; } Crompton Greaves Limited LT Motors Division Manufacturing Units : Ahmednagar Works: A-6/2, M.I.D.C. Industrial Area, Ahmednagar - 414111. Tel.: (0241) 2776 150 -157. Fax : (0241) 2777508,2777800. Goa Works : S-14/15, Colvale Industrial Estate, Colvale, Bardez, Goa - 403 513. Tel.: (0832) 2299664...

 Open the catalog to page 11
