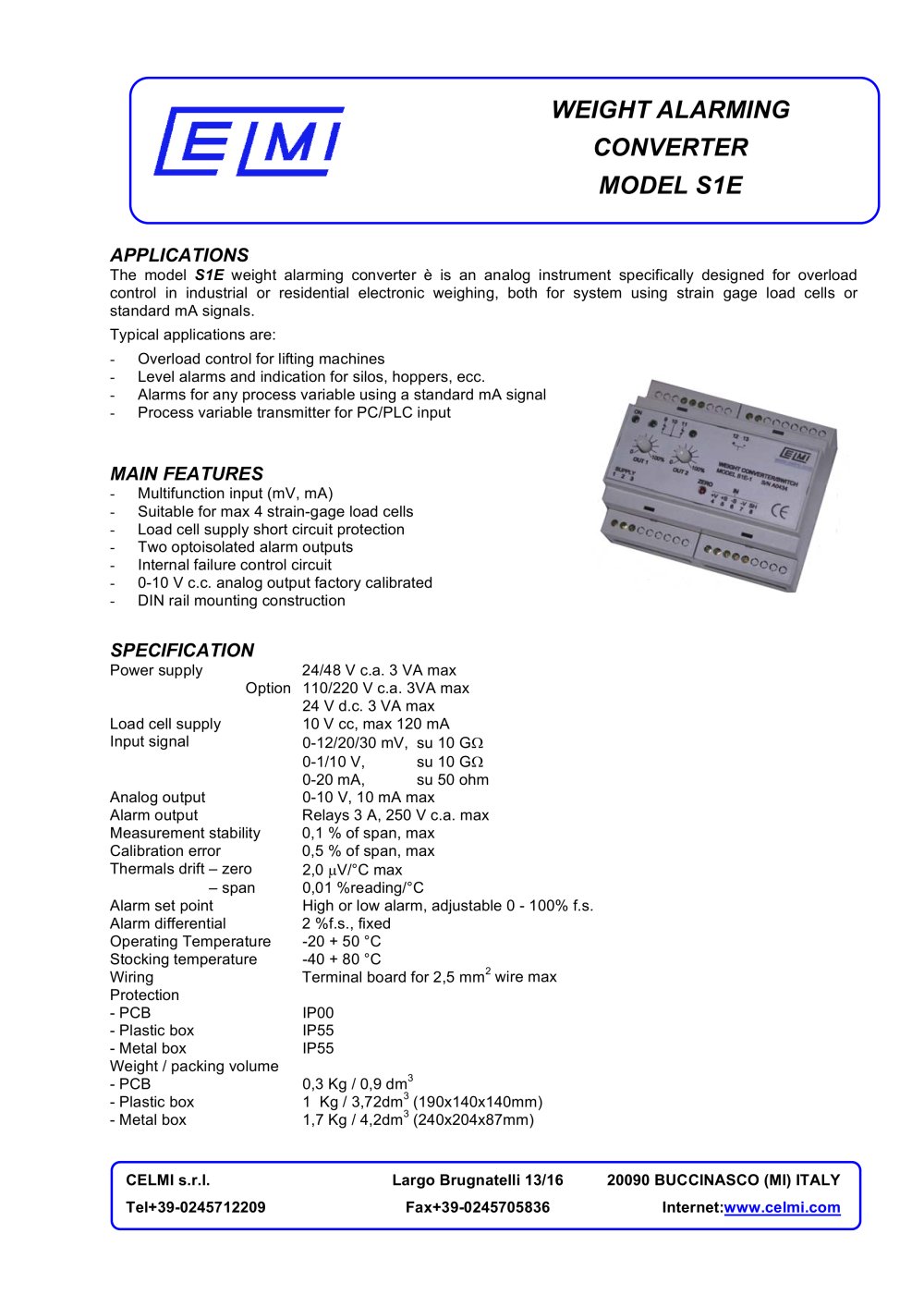

The model S1E weight alarming converter is an analog instrument specifically designed for overload control in industrial or residential electronic weighing, both for system using strain gage load cells or standard mA signals. Typical applications are: - Overload control for lifting machines - Level alarms and indication for silos, hoppers, ecc. - Alarms for any process variable using a standard mA signal - Process variable transmitter for PC/PLC input > - Multifunction input (mV, mA) - Suitable for max 4 strain-gage load cells - Load cell supply short circuit protection - Two optoisolated alarm outputs - Internal failure control circuit - 0-10 V c.c. analog output factory calibrated - DIN rail mounting construction > Power supply 24/48 V c.a. 3 VA max Option110/220 V c.a. 3VA max 24 V d.c. 3 VA max Load cell supply 10 V cc, max 120 mA Input signal 0-12/20/30 mV, su 10 G 0-1/10 V, su 10 G 0-20 mA, su 50 ohm Analog output 0-10 V, 10 mA max Alarm output Relays 3 A, 250 V c.a. max Measurement stability 0,1 % of span, max Calibration error 0,5 % of span, max Thermals drift zero 2,0 V/薰C max span 0,01 %reading/ְC Alarm set point High or low alarm, adjustable 0 - 100% f.s. Alarm differential 2 %f.s., fixed Operating Temperature -20 + 50 C Stocking temperature -40 + 80 аC Wiring Terminal board for 2,5 mm > 2 wire max Protection - PCB IP00- Plastic box IP55- Metal box IP55 Weight / packing volume - PCB 0,3 Kg / 0,9 dm > 3 - Plastic box 1 Kg / 3,72dm > 3 3 (190x140x140mm) - Metal box 1,7 Kg / 4,2dm (240x204x87mm) CELMI s.r.l. Largo Brugnatelli 13/16 20090 BUCCINASCO (MI) ITALY Tel+39-0245712209 Fax+39-0245705836 Internet:www.celmi.com >

The instrument provides an input suitable for different measuring range selectable by dip-switches Converts the input signal into a standard 0-10 V d.c. proportional to the selected measuring range, which is delivered to the alarm circuits and to the analog output A highly stabilized power supply to load cells provided with short circuit protection which shut-off the load cell supply in case of short circuit (the instrument is reset by a new power-on of the instrument) Two alarm circuit are provided which can be selected between high or low alarm. Alarm set-points are adjustable over full scale...

Connect the wiring according to the terminal board connection drawing and in accordance with applicable standard and regulation of the country of installation. Provide an external switch on the power supply with protection fuse (may be common to several instrument). WARNING: 1) Load cell and analog signal wiring must run separate by power cables. 2) If required to optimize EMC immunity (degradation level for tests according to AӔ criteria < 4%), install ferrite cores on load cell and/or power supply cable inputs and/or install load cell cable into metallic sheet connected to ground OVERALL DIMENSIONS...
