UNIVERSAL LOAD CELL TYPE 336

UNIVERSAL LOAD CELL TYPE 336
2Pages

Catalog excerpts

CELMI s.r.l. Largo Brugnatelli 13/16 20090 BUCCINASCO (MI) ITALY Tel +39-0245712209 Fax +39-0245705836 Internet: www.celmi.com UNIVERSAL LOAD CELL TYPE 336 APPLICATIONS: The tension/compression type 336 can be used in small and medium loading capacity weighing systems. Some applications are: - Materials testing machines - Belt conveyor scale - Weighing in silos, hopper, tanks, etc. MAIN FEATURES: - Water-proof - Stainless steel soldered with microplasma - Available with output (CIA 404) - Available with analog output 4-20mA - Standard nominal load from 300 to 5.000 Kg - High precision (equivalent to OIML C3) NOMINAL LOAD: 300-500 kg 1-2-3-5 ton SPEC IFICATION ACCORDING TO VD I/VDE 2637 METROLOGICAL CHARACTER ISTICS Par. Un. COMBINED ERROR Fcomb %Ln 0,020 NOMINAL LO AD Ln t 0 ,3÷5 IN IT IA L LOAD Lp % Ln 25 MAXIMUM LO AD L l %Ln 130 NON-L INEARITY Flin %Ln 0 ,02 HISTERESIS ERROR Fu %Ln 0 ,015 REPEATABIL ITY ERROR Fv %Ln 0 ,01 CREEP-30 M INUTES Fcr %Ln 0 ,02 NOMINAL TEMPERATURE R ANGE Btn °C -10+40 ZERO TEMPERATURE D R IFT (OVER 1 0 °C) TK0 %Cn 0 ,009 OUTPUT TEMPERATURE D R IFT (OVER 10 °C) TKC %Cn 0 ,009 THERMAL G RADIENT °K/h <5 ELECTR ICAL D A TA NOMINAL O UTPUT Cn mV/V 2 NOMINAL O UTPUT TOLERANCE Dc ±%Cn 0,1 NOMINAL SUPPLY VO LTAGE Bsu V 1÷12 MAXIMUM SUPPLY VOLTAGE Usmax V 15 INPUT R ESISTANCE Re Ù 430±10% OUTPUT R ESISTANCE Ra Ù 350±1% INSULATION RES ISTANCE @ 20V Ris MÙ >2000 ZERO O UTPUT TOLERANCE Do ±%Cn 1 MECHANICAL D A TA BREAKING LOAD Ld %Ln >250 MAXIMU N SIDE LOAD Llq % Ln N.A. DEFLECTION hn mm <0.5 CABLE LENGTH m 5 W EIGHT K g ENVIRONMENTAL C O N D ITIONS W ORKING TEMPERATURE R ANGE Btn °C -40+80 STORAGE TEMPERATURE RANGE B ts °C -40+80 HOUSING PROTECTION IP 66/68 SUBJECT TO CHANGE WITHOUT NOTICE

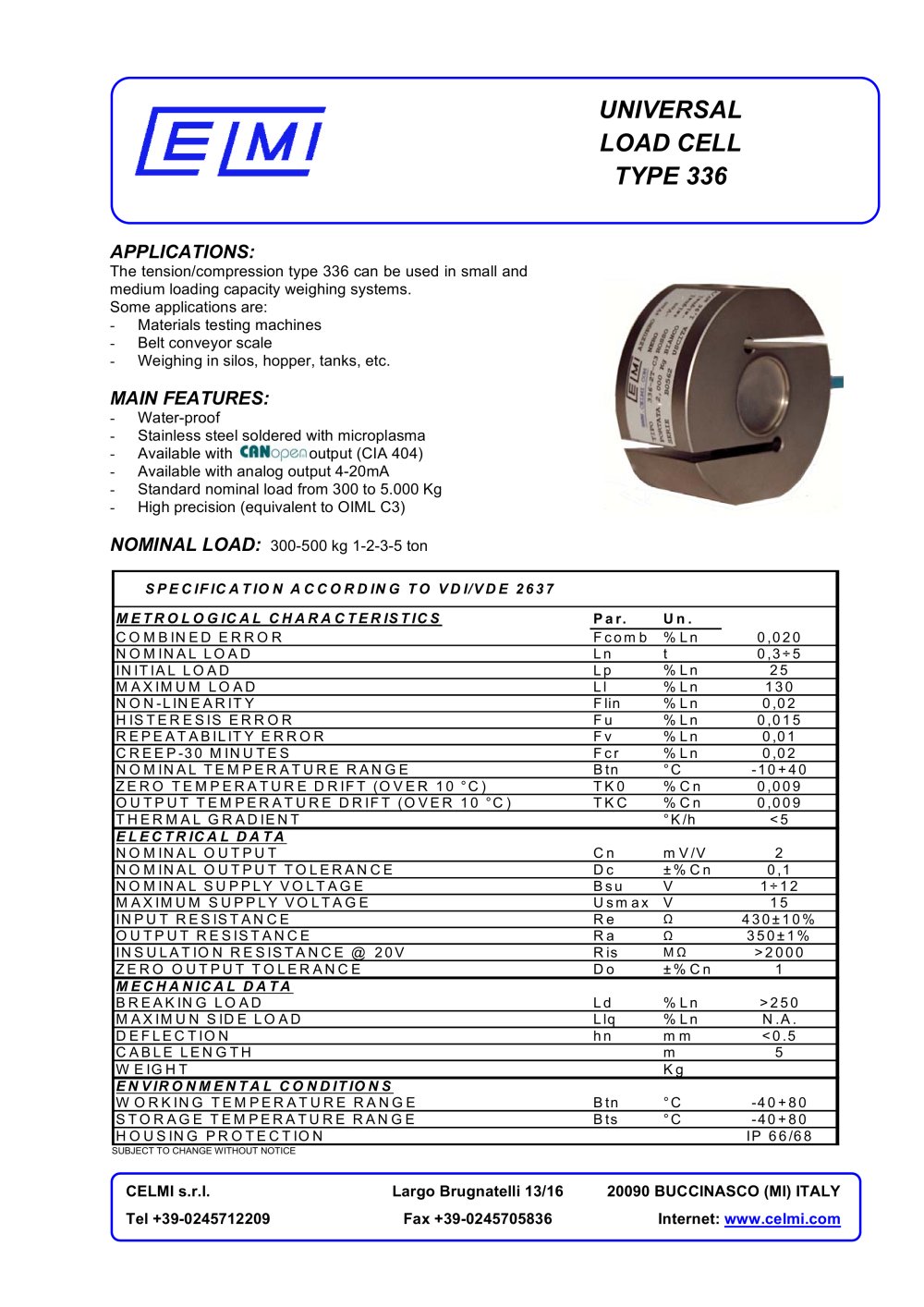

Open the catalog to page 1

O"A" "B" "D" "C" 250K=250 Kg 500K=500 Kg 1T=1.000 Kg 2T=2.000 Kg 3T=3.000 Kg 5T=5.000 Kg "A" "B" "C" "D" 64 82 64 64 82 82 M24X2 60 60 60 78 78 80 50 41 41 30 30 30 M20X1,5 M16X2 M12 M12 M12 336-XXX-X 336C-XXX-X STANDARD TYPE OPTIONAL "M8" CONNECTOR SEE TECHNICAL DATA ORDERING INFORMATION MICRO-PLASMA WELDED ALL STAINLESS STEEL OPTIONAL "M8" CONNECTOR FOR TYPE 336C-XX-X -SIGNAL -SUPPLY BLUE +SUPPLY BLACK RED WHITE +SIGNAL TYPE 336-XXX-X 336C-XXX-X SHIELDED POLYURETHANE CABLE 4X0,35 mm^2 STANDARD LENGHT 5m RED +4-20 mA -CAN-OPEN RED WHITE +CAN-OPEN -SUPPLY BLUE +SUPPLY BLACK -SUPPLY BLUE...

Open the catalog to page 2
