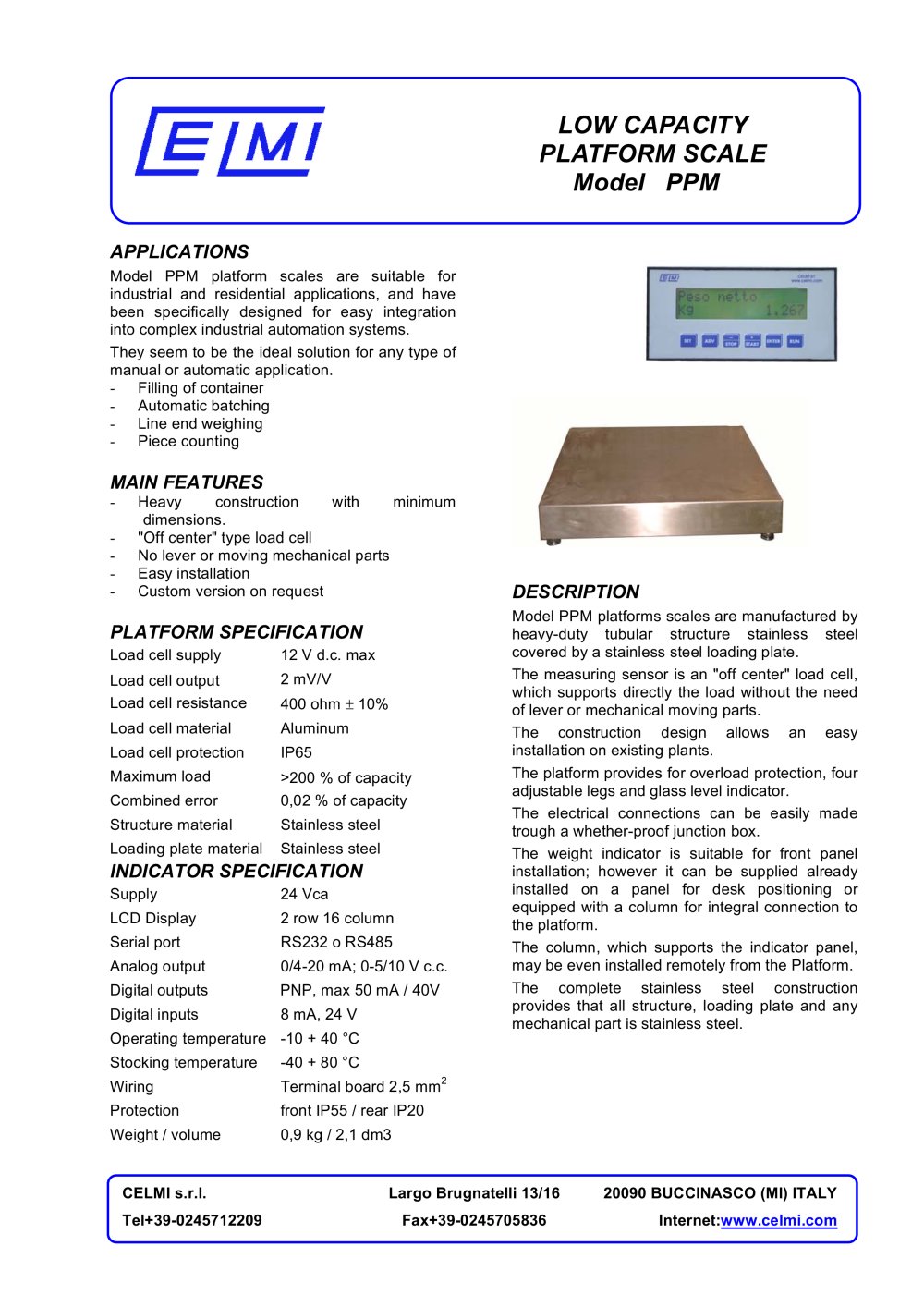

LOW CAPACITY PLATFORM SCALE

LOW CAPACITY PLATFORM SCALE

Product catalog summary

Applications
Model PPM platform scales are designed for both industrial and residential use, ideal for integration into complex automation systems. They are suitable for applications such as container filling, automatic batching, line end weighing, and piece counting.

Main Features
The scales feature a heavy construction with minimal dimensions, an 'off center' load cell, no moving mechanical parts, easy installation, and customizable versions upon request.

Platform Specifications

Load cell supply: 12 V d.c. max
Load cell output: 2 mV/V
Load cell resistance: 400 ohm ± 10%
Load cell material: Aluminum
Load cell protection: IP65
Maximum load: >200% of capacity
Combined error: 0.02% of capacity
Structure and loading plate material: Stainless steel

Indicator Specifications

Supply: 24 Vca
LCD Display: 2 row 16 column
Serial port: RS232 or RS485
Analog output: 0/4-20 mA; 0-5/10 V c.c.
Digital outputs: PNP, max 50 mA / 40V
Digital inputs: 8 mA, 24 V
Operating temperature: -10 to +40 °C
Stocking temperature: -40 to +80 °C
Protection: front IP55 / rear IP20
Weight / volume: 0.9 kg / 2.1 dm3

Description
The PPM platform scales are constructed with a heavy-duty stainless steel tubular structure and a stainless steel loading plate. The 'off center' load cell design eliminates the need for levers or moving parts, facilitating easy installation. The platform includes overload protection, adjustable legs, and a glass level indicator. Electrical connections are made through a weather-proof junction box. The weight indicator can be installed on a panel or equipped with a column for integration with the platform.

Capacity and Dimensions

3 kg: 350 x 250 x 100 mm, Resolution: 1 g
6 kg: 350 x 250 x 100 mm, Resolution: 2 g
15 kg: 350 x 250 x 100 mm, Resolution: 5 g
30 kg: 400 x 400 x 118 mm, Resolution: 10 g
60 kg: 400 x 400 x 118 mm, Resolution: 20 g
150 kg: 400 x 400 x 118 mm, Resolution: 50 g
60 kg: 600 x 600 x 145 mm, Resolution: 20 g
150 kg: 600 x 600 x 145 mm, Resolution: 50 g

Indicator Functions
The indicator software supports various weighing and batching functions, including zero tracking, tare set/reset, peak value measurement, piece counting, and multiple alarms. It also supports batching with memory for up to 48 recipes and supervision functions via RS485 network.

Ordering Information
To order, specify the complete model number and required functions. Options include capacity, material, serial output, I/O board, and program type.
