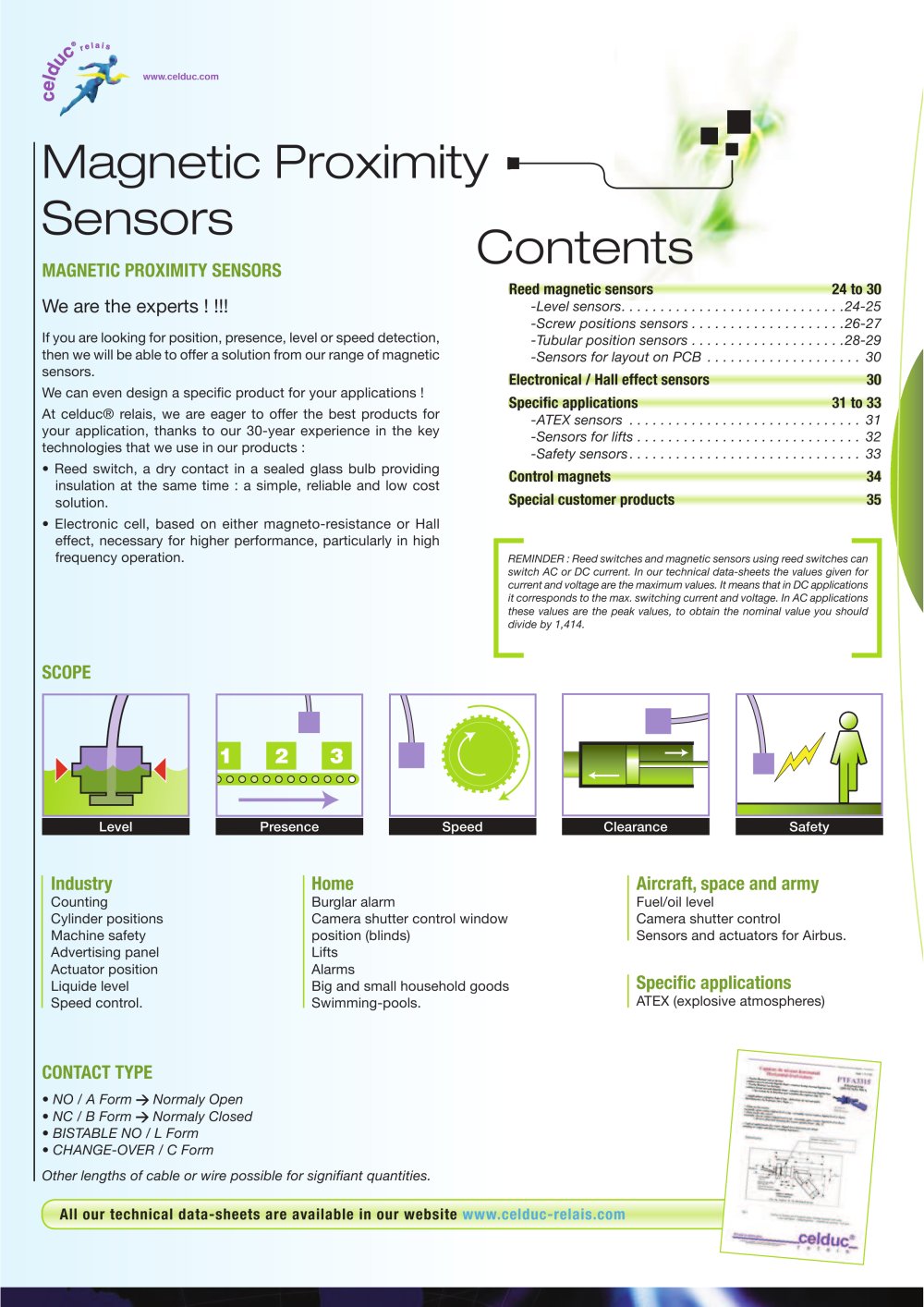

www.celduc.com Magnetic Proximity Sensors Contents SCOPE MAGNETIC PROXIMITY SENSORS Industry Counting Cylinder positions Machine safety Advertising panel Actuator position Liquide level Speed control. Home Burglar alarm Camera shutter control window position (blinds) Lifts Alarms Big and small household goods Swimming-pools. Aircraft, space and army Fuel/oil level Camera shutter control Sensors and actuators for Airbus. Specifi c applications ATEX (explosive atmospheres) Reed magnetic sensors 24 to 30 -Level sensors. . . . . . . . . . . . . . . . . . . . . . . . . . . . .24-25 -Screw positions sensors . . . . . . . . . . . . . . . . . . . .26-27 -Tubular position sensors . . . . . . . . . . . . . . . . . . . .28-29 -Sensors for layout on PCB . . . . . . . . . . . . . . . . . . . . 30 Electronical / Hall effect sensors 30 Specifi c applications 31 to 33 -ATEX sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 -Sensors for lifts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 -Safety sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Control magnets 34 Special customer products 35 CONTACT TYPE • NO / A Form > Normaly Open • NC / B Form > Normaly Closed • BISTABLE NO / L Form • CHANGE-OVER / C Form Other lengths of cable or wire possible for signifi ant quantities. We are the experts ! !!! If you are looking for position, presence, level or speed detection, then we will be able to offer a solution from our range of magnetic sensors. We can even design a specifi c product for your applications ! At celduc® relais, we are eager to offer the best products for your application, thanks to our 30-year experience in the key technologies that we use in our products : • Reed switch, a dry contact in a sealed glass bulb providing insulation at the same time : a simple, reliable and low cost solution. • Electronic cell, based on either magneto-resistance or Hall effect, necessary for higher performance, particularly in high frequency operation. Level Presence Speed Clearance Safety REMINDER : Reed switches and magnetic sensors using reed switches can switch AC or DC current. In our technical data-sheets the values given for current and voltage are the maximum values. It means that in DC applications it corresponds to the max. switching current and voltage. In AC applications these values are the peak values, to obtain the nominal value you should divide by 1,414. All our technical data-sheets are available in our website www.celduc-relais.com

REED MAGNETIC SENSORS Level sensors Product reference PTF01060 PTFA1015 PTFA1103(1) PTFA1104(1) PTFA1210 PTFA2115(1)(2) Mounting Vertically Vertically High and low level Vertically High level Vertically Low level Vertically High and low level Vertically High and low level Contact status (fl oat down) 1NO 1NO 1NC 1NO 1NO+NC 1NO Connection type 2 wires 600mm 2 wires 1,5m 2 wires 300mm 2 wires 300mm Cable (3 wires) 300mm 2 wires 1,5m Material Housing Polyamide 6/6 resin with glass fi ber content Polyamide 6/6 resin with glass fi ber content Polypropylene Polypropylene Polyamide Stainless steel Float...

Working principle A fl oat fi tted with one or more magnets moves with the liquid and actuates, due to its magnetic fi eld, a hermetically sealed reed contact located in the body of the fl oat. Applications Heating (air-conditioning, heaters, humidifi ers) > To detect the water level in the tank. Domestic equipment (electronic fl ush, solar systems) > To detect the water level. Food industry (coffee machines, vending machines) > Check the level of water left in the tank. Medical equipment (sterilising equipment for medical instruments) > Check level of water for steam or liquid detergent level....

REED MAGNETIC SENSORS Screw position sensors Product reference PAA10060 PAA11202 PAB10020 PAC10010 PLA10100 PLA10160 PLA11208 PLA12430 PLA10290 PLA10292 Contact status NO NO NC Change-over NO NO NO NO NO Connection type 2 wires / FASTON 2 wires 2 wires + HE14 connector 3 wires + HE14 connector 2 wires 2 wires cable cable 2 wires Cable length 680mm 275mm 160mm 70mm 10m 360mm 800mm 3m 220mm Max. switching power 12VA 12VA 3VA NC : 3VA NO : 8VA 12VA 12VA 12VA 12VA 12VA Max. switching voltage 100VDC 100VDC 100VDC 250VDC 250VDC 200VDC Max. switching current 0,4A 0,25A 0,5A 0,4A 0,4A 0,4A 0,5A Activation...

Presence Clearance Speed Safety sensors manufactured in compliance with the European Directive 2006/42/CE : PLc according to ISO13849-1 SIL1 according to IEC62061 Category 1 High MTTFd For other safety applications see page 33. REED MAGNETIC SENSORS www.celduc.com p.27 Product reference PB158S00 PB195T00 PB285T00 PB367G00 PB390G00 PBA13725 PBA13740 PBA13780 Contact status NO NC NO NO Connection type 2 wires 2 wires 2 wires 2 wires 2 wires cable cable cable Cable length 80mm 80mm 80mm 80mm 80mm 2,5m 4m 8m Max. switching power 100VA 50VA 50VA 16VA 16VA 12VA 12VA 12VA Max. switching voltage 250VAC...

PTI range – M8 plastic and stainless-steel housing PTA range – M10 housing Typical applications : -Speed sensors, -Presence, position, clearance sensors. Product reference PTI40003 PTI40003 PTI50003 PTI50020 PTI60003 PTI60020 PTI70003 Contact status 1NO / A form 1NO / A form 1NC / B form 1NC / B form 1NO / A form 1NO / A form 1NC / B form Max. switching power 12VA 12VA 5W 5W 12VA 12VA 5W Max. switching voltage 200VDC 200VDC 175VDC 175VDC 200VDC 200VDC 175VDC Max. switching current 0,5A 0,5A 0,25A 0,25A 0,5A 0,5A 0,25A Connection type Cable 30cm Cable 2m Cable 30cm Cable 2m Cable 30cm Cable 2m...

REED MAGNETIC / HALL EFFECT SENSORS www.celduc.com p.30 Reed switch proximity sensors in plastic housing, for PCB mounting with no risk of dammage. celduc® relais offers two ranges of electronical sensors : - Hall effect sensors - Gear tooth sensors. Sensors for layout on PCB Hall effect sensors Product reference PHA01200 PHA11200 PHC10010 PHC13700 Contact status NO Change-over Max. switching power 12VA NC : 3VA / NO : 8VA Max. switching voltage 100VDC Max. switching current 0,4A 0,4A Activation distance with U6250000 18mm 17mm 17mm 11mm Working temperature -40 to +100°C Dimensions (mm) 23x4,2x3,6...
