Overview: The document provides detailed information about celpac® Solid State Relays and Contactors, highlighting their performance, reliability, and design features. It emphasizes the ease of installation, long life expectancy, and competitive pricing of the new generation of celpac products.

Specifications: The relays and contactors are compatible with hockey puck style relays and offer a maximum voltage of up to 1600V. They feature thyristor ratings up to 95A and a large input range of 3-32VDC. The products are designed according to European standards EN60947-4-3 and EN60950, with IP20 protection.

Product Ranges: The document describes various product ranges including SA, SAL, SU, SUL, and SUM, each with specific features such as screw connections, pluggable connectors, and protective covers. These ranges are designed for different mounting options and applications.

Technical Characteristics: The relays offer quick and easy connections, with nominal currents ranging from 12A to 75A. They operate within a temperature range of -40 to +80°C and provide 4000VRMS insulation. The document also lists specific models with their output voltage, thyristor rating, control voltage, and commutation type.

Applications: The SU7, SU8, and SU9 ranges are suitable for motors, inductive loads, and resistive loads, respectively. The SA8 and SA9 ranges are designed for various load types, with specific applications for resistive loads.

Accessories: The document mentions removable protection flaps, marking labels, protection covers, and connectors as accessories for the celpac products.

Conclusion: celpac® Solid State Relays and Contactors offer a cost-effective, reliable, and compact solution for various industrial applications, with a focus on ease of use and long-term performance.

Catalog excerpts

celpac 2G - Solid State Relays & Contactors-1

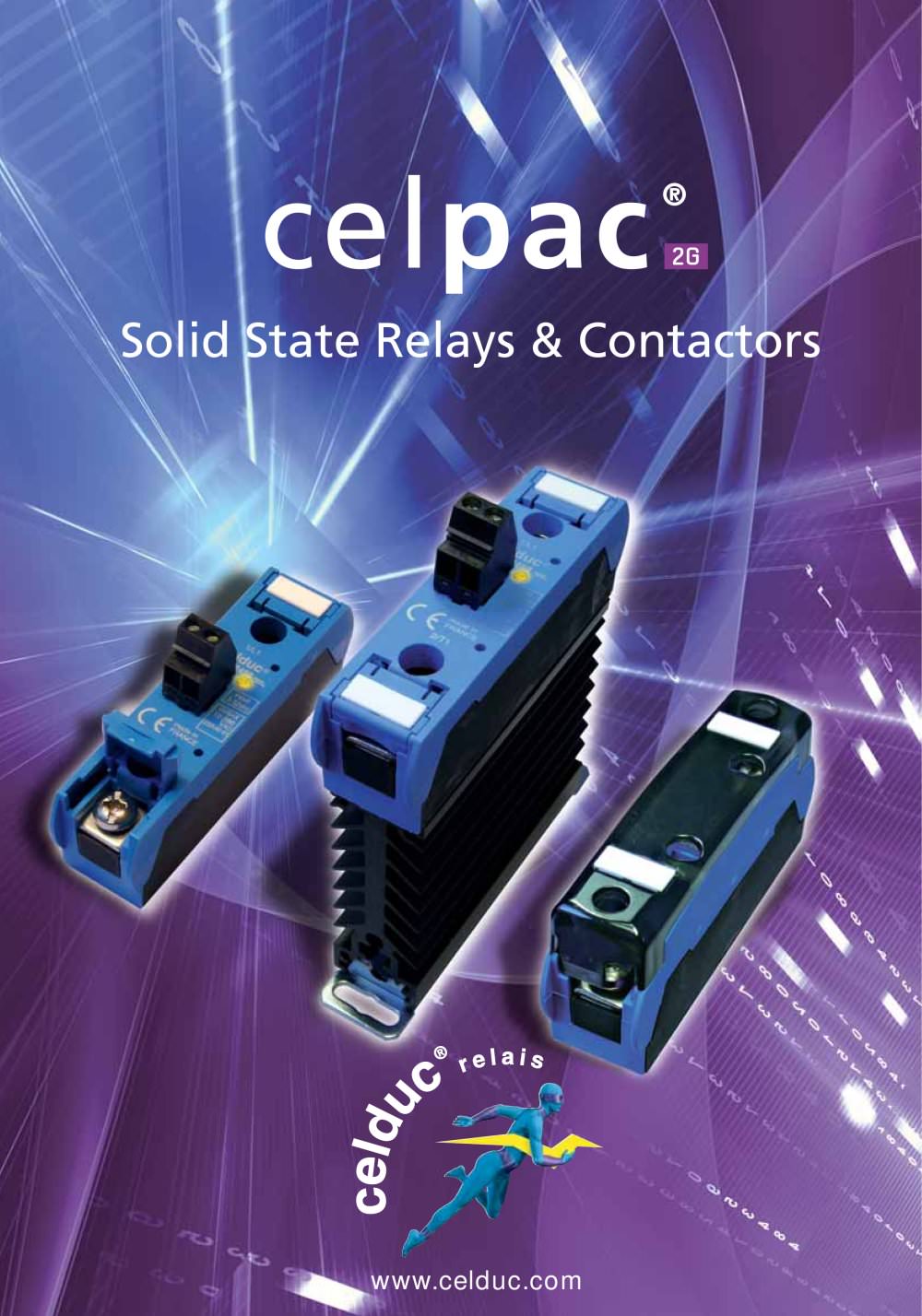

celpac ® Solid State Relays & Contactors www.celduc.com

Open the catalog to page 1

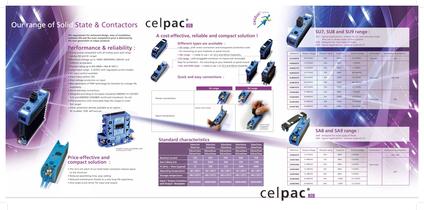

celpac 2G - Solid State Relays & Contactors-2

The requirement for enhanced design, ease of installation, optimum life and the most competitive price is delivered by the new generation of celpac products. Performance & reliability: Fixing screws compatible with all hockey puck style relays Thyristor rating up to 95A (IRMS = 96A @ 100°C) Large input range : 3-32VDC with regulated current models AC input control available Jnput status yellow LED Over-voltage protection on input New generation of TMS2 technology for thyristors for a longer life fauick and easy connections 'Designed according to European standards EN60947-4-3 (IEC947- 4-3) and...

Open the catalog to page 2

celpac 2G - Solid State Relays & Contactors-4

® Removable protection flaps Protection cover (for SA and SU ranges) Standard for SU range Ref : 1K523000 (standard for SA range) Ref : 1K522000 Marking labels to be mounted on protection flaps or cover. Ref : 1MZ09000 Removable connectors A large range of heatsinks www.celduc.com 5, rue Ampère - BP 30004 - 42290 SORBIERS - FRANCE Tel : +33(0)4 77 53 90 20 - Fax : +33 (0)4 77 53 85 51 Tel export : +33(0)4 77 53 90 21 [email protected] All technical charateristics are subject to change without previous notice - PLAQCELPAC2UK - December 2008 Accessories for celpac
