SPECIAL MODEL SOLENOID E - ES 50 FAMILY
SPECIAL MODEL SOLENOID E - ES 50 FAMILY

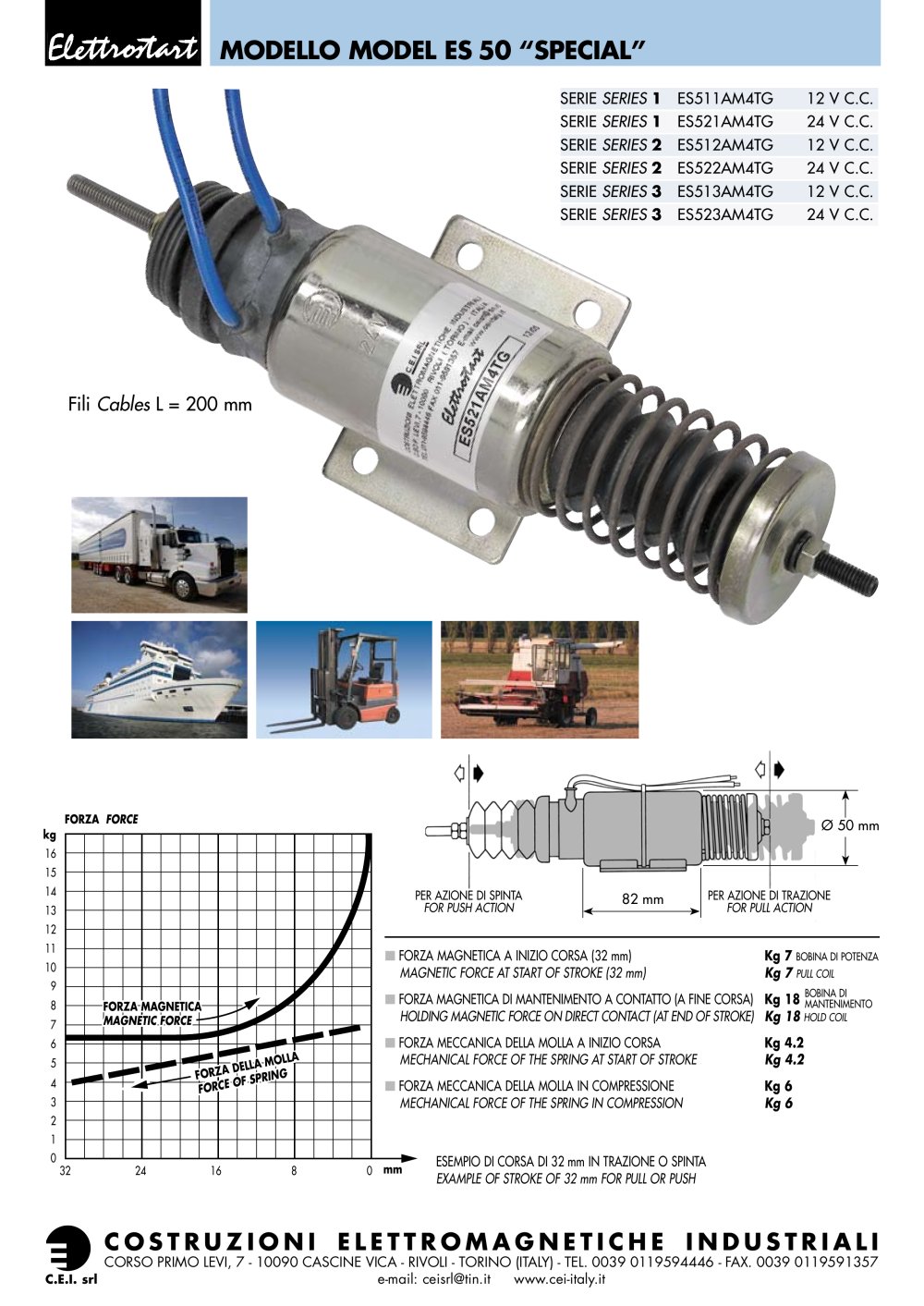

The document describes the technical specifications for the MODEL ES 50 “SPECIAL” series, which includes various models differentiated by series and voltage: Series 1 (12 V and 24 V), Series 2 (12 V and 24 V), and Series 3 (12 V and 24 V).
- Cable Length: 200 mm
- Magnetic Force at Start of Stroke (32 mm): 7 Kg
- Holding Magnetic Force on Direct Contact (End of Stroke): 18 Kg
- Mechanical Force of the Spring at Start of Stroke: 4.2 Kg
- Mechanical Force of the Spring in Compression: 6 Kg
- Stroke Example: 32 mm for pull or push action
- Diameter: 50 mm
- Length: 82 mm
The document provides examples of the stroke for both push and pull actions, indicating the versatility of the device in different mechanical applications.
C.E.I. srl, located at Corso Primo Levi, 7 - 10090 Cascine Vica - Rivoli - Torino, Italy. Phone: 0039 0119594446, Fax: 0039 0119591357, Email: [email protected], Website: www.cei-italy.it
Catalog excerpts
50 mm > PER AZIONE DI SPINTA PER AZIONE DI TRAZIONE FOR PUSH ACTION 82 mm > FOR PULL ACTION آ֠ FORZA MAGNETICA A INIZIO CORSA (32 mm) Kg 7 > BOBINA DI POTENZA FORCE MAGNETIC FORCE AT START OF STROKE (32 mm) Kg 7 > PULL COIL kg mm FORZA BOBINA DI MANTENIMENTO FORZA MAGNETICA ■ FORZA MAGNETICA DI MANTENIMENTO A CONTATTO (A FINE CORSA) Kg 18 > MAGNETIC FORCE MAGNETIC FORCE HOLDING MAGNETIC FORCE ON DIRECT CONTACT (AT END OF STROKE) Kg 18 > HOLD COIL ■ FORZA MECCANICA DELLA MOLLA A INIZIO CORSA Kg 4.2 MECHANICAL FORCE OF THE SPRING AT START OF STROKE Kg 4.2 > FORZA DELLA MOLLA FORZA DELLA MOLLA FORCE OF SPRING FORCE OF SPRING ■ FORZA MECCANICA DELLA MOLLA IN COMPRESSIONE Kg 6 MECHANICAL FORCE OF THE SPRING IN COMPRESSION Kg 6 > 012 345678 9101112 131415 16 32241680 FORZA MAGNETICA ESEMPIO DI CORSA DI 32 mm IN TRAZIONE O SPINTA EXAMPLE OF STROKE OF 32 mm FOR PULL OR PUSH > CORSO PRIMO LEVI, 7 - 10090 CASCINE VICA - RIVOLI - TORINO (ITALY) - TEL. 0039 0119594446 - FAX. 0039 0119591357e-mail: [email protected] www.cei-italy.it > C.E.I. srl size="-1">
