Q 2020
1 / 1 PageView full catalog
Q 2020
Product catalog summary
Technical Specifications

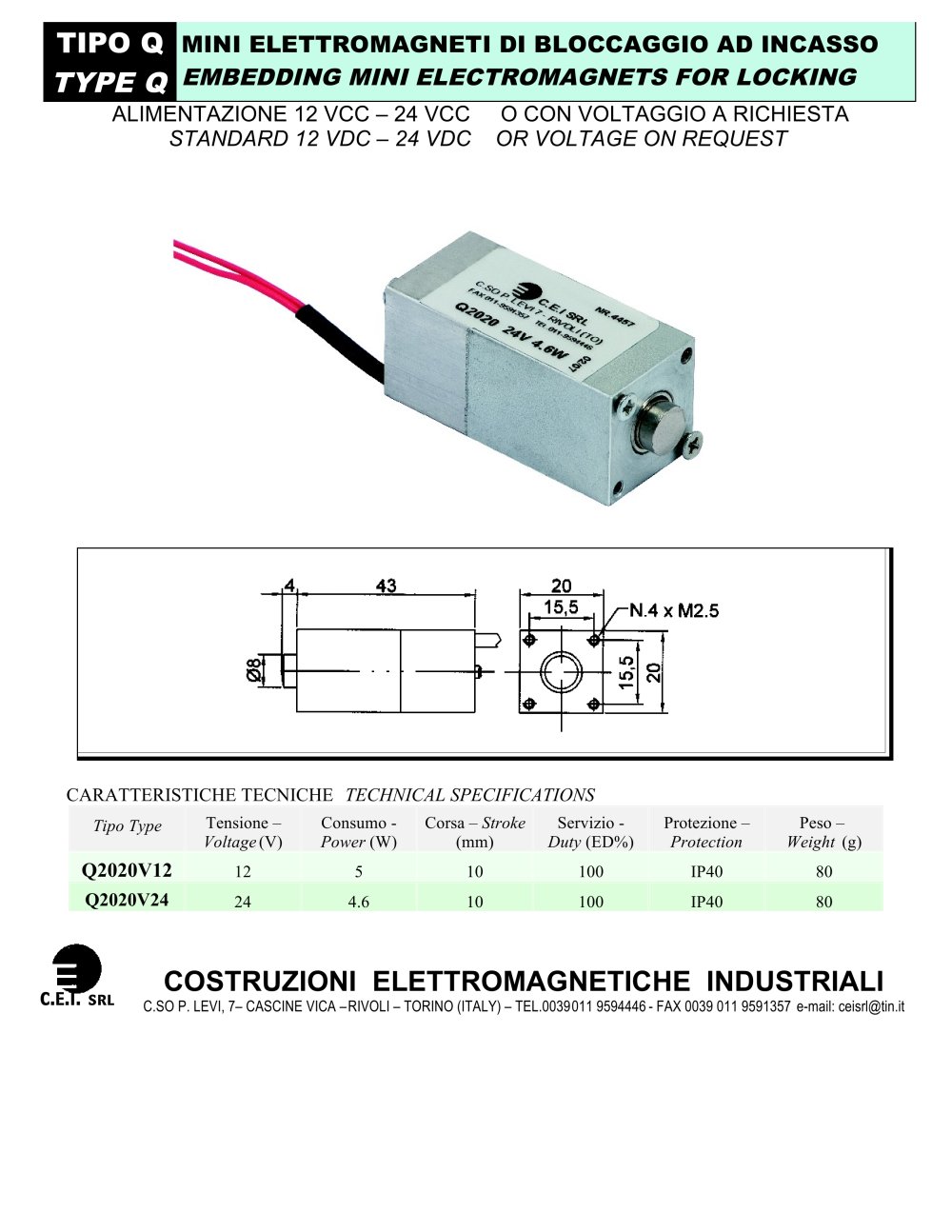

The document provides details on mini electromagnetic locks designed for embedding. These electromagnets are available with standard voltages of 12 VDC and 24 VDC, with the option for custom voltage upon request.
Specifications Table
| Type | Voltage (V) | Power (W) | Stroke (mm) | Duty (ED%) | Protection | Weight (g) |
|---|---|---|---|---|---|---|
| Q2020V12 | 12 | 5 | 10 | 100 | IP40 | 80 |
| Q2020V24 | 24 | 4.6 | 10 | 100 | IP40 | 80 |
Key Features
- Voltage options: 12 VDC and 24 VDC, with custom voltage available.
- Power consumption varies slightly between models, with 5W for 12V and 4.6W for 24V.
- Both models have a stroke of 10 mm and a duty cycle of 100%.
- Protection rating is IP40, indicating protection against solid objects larger than 1mm.
- Each unit weighs 80 grams.
Contact Information
C.E.I. srl, Costruzioni Elettromagnetiche Industriali, located at C.so P. Levi, 7, Cascine Vica, Rivoli, Torino, Italy. Telephone: 0039 011 9594446, Fax: 0039 011 9591357, Email: [email protected]
See more
Catalog excerpts
Tipo Type Tensione Stroke Peso ֖ Voltage (V)Consumo - Power (W)Corsa (mm)Servizio - Duty (ED%)Protezione ֖ Protection Weight (g) > 244.610100IP4080 > C.E.I. srl C.SO P. LEVI, 7 CASCINE VICA ֖ RIVOLI TORINO (ITALY) ֖ TEL.0039 011 9594446 - FAX 0039 011 9591357 e-mail: [email protected]
