N 70

N 70
1 / 1 PageView full catalog

N 70

Product catalog summary

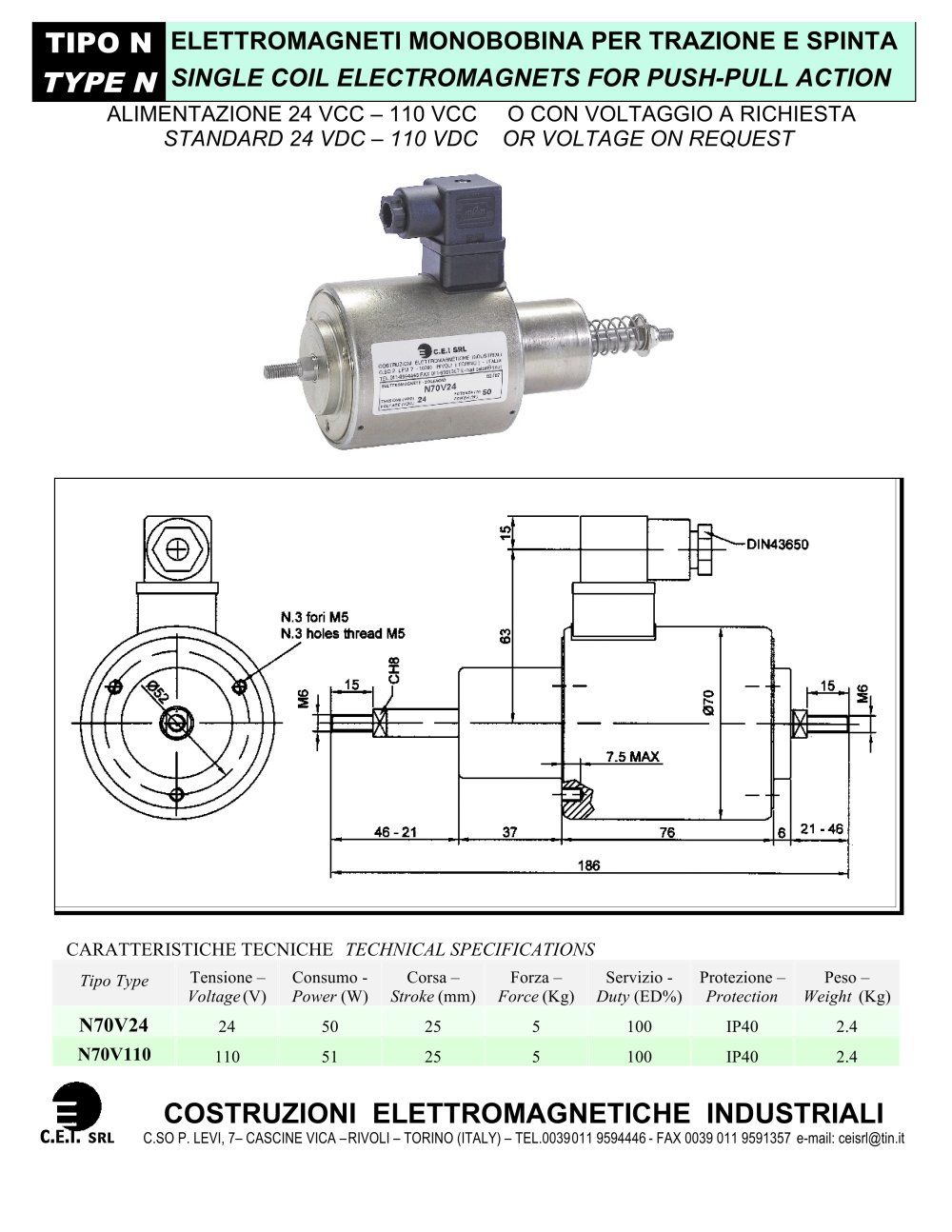

Technical Specifications Summary for Type N Single Coil Electromagnets
General Description: The document provides technical specifications for Type N single coil electromagnets designed for push-pull action. These electromagnets are available with standard voltages of 24 VDC and 110 VDC, with the option for custom voltage requests.
Specifications:
  • Voltage Options: 24 VDC and 110 VDC
  • Power Consumption: 50 W for 24 VDC model, 51 W for 110 VDC model
  • Stroke: 25 mm
  • Force: 5 Kg
  • Duty Cycle: 100% ED (Continuous Duty)
  • Protection Rating: IP40
  • Weight: 2.4 Kg for both models
Manufacturer Information: C.E.I. srl, located in Rivoli, Torino, Italy, specializes in industrial electromagnetic constructions.
See more

Catalog excerpts

N 70-1

Tipo Type Tensione Peso ֖ Voltage (V)Consumo - Power (W)Corsa Stroke (mm)Forza ֖ Force (Kg)Servizio - Duty (ED%)Protezione Protection Weight (Kg) > 11051255100IP402.4 > C.E.I. srl C.SO P. LEVI, 7֖ CASCINE VICA RIVOLI ֖ TORINO (ITALY) TEL.0039 011 9594446 - FAX 0039 011 9591357 e-mail: [email protected]

 Open the catalog to page 1
