N 024
N 024
- Type: N24V24
- Voltage: 24 VDC (or voltage on request)
- Power Consumption: 5.3 W
- Stroke: 5 mm
- Force: 140 g
- Duty Cycle: 100% ED
- Protection: IP40
- Weight: 0.110 Kg

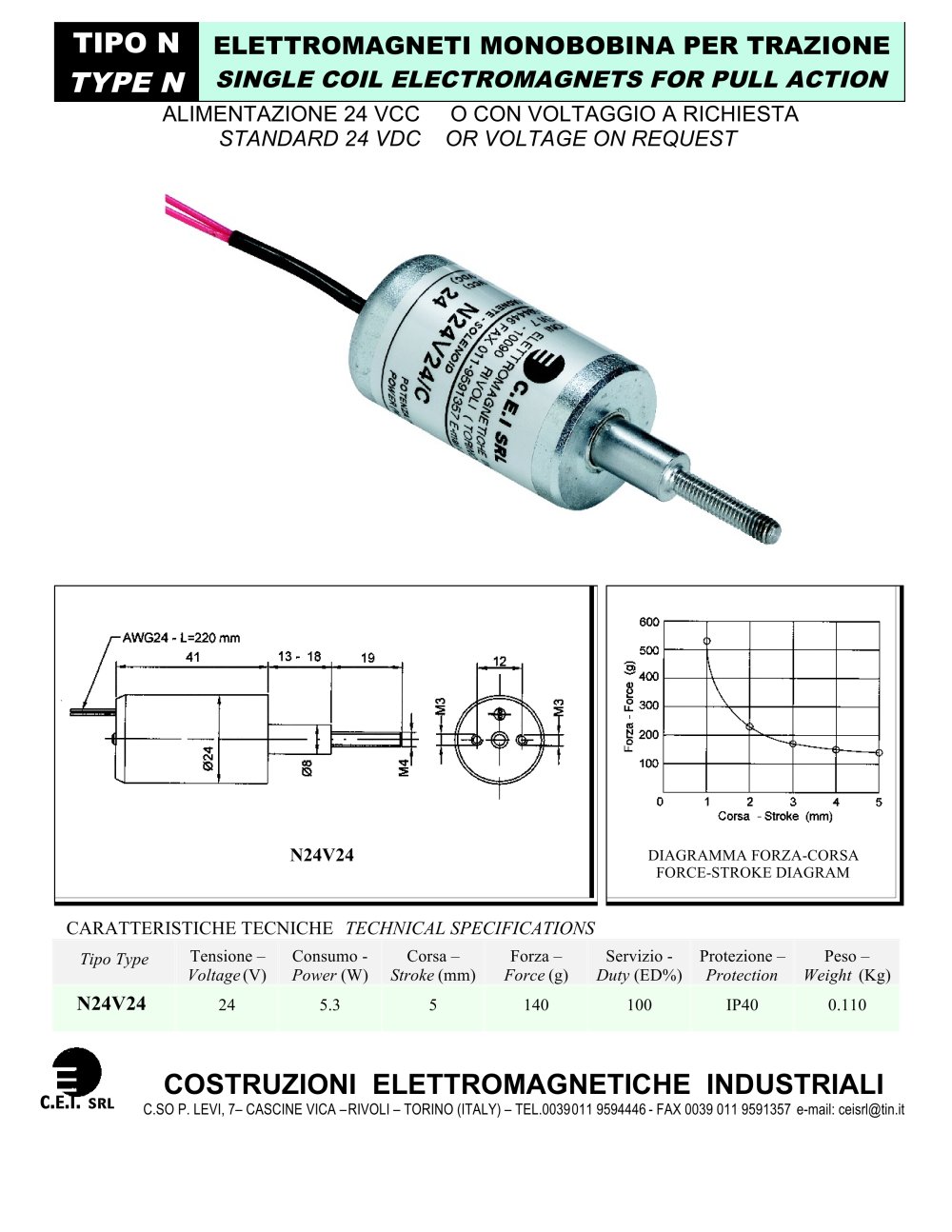

The document describes single coil electromagnets designed for pull action, specifically the Type N24V24 model. These electromagnets are powered by a standard 24 VDC supply, with the option for different voltages upon request. The force-stroke diagram is referenced for performance evaluation.
C.E.I. srl, located in Rivoli, Torino, Italy, specializes in industrial electromagnetic constructions. Contact details include phone: 0039 011 9594446 and email: [email protected].
Catalog excerpts
DIAGRAMMA FORZA-CORSAFORCE-STROKE DIAGRAM Tipo Type Tensione Peso ֖ Voltage (V)Consumo - Power (W)Corsa Stroke (mm)Forza ֖ Force (g)Servizio - Duty (ED%)Protezione Protection Weight (Kg) > 245.35140100IP400.110 > C.E.I. srl C.SO P. LEVI, 7֖ CASCINE VICA RIVOLI ֖ TORINO (ITALY) TEL.0039 011 9594446 - FAX 0039 011 9591357 e-mail: [email protected]
