N 011

Product catalog summary
Technical Specifications
  • Type: N011W14, N011W14F, N021W14.5, N021W14.5F
  • Voltage: 12 VDC or 24 VDC, with options for custom voltage upon request
  • Power Consumption: 14 W for both 12 VDC and 24 VDC models
  • Stroke: 10 mm
  • Force: 0.8 Kg
  • Duty Cycle: 100% ED
  • Protection: IP40
  • Weight: 0.39 Kg
Product Variants
  • N011W14 / N021W14.5: Equipped with Faston connectors and a fixing nut
  • N011W14F / N021W14.5F: Comes with cables and a threaded stem
Contact Information

C.E.I. srl Costruzioni Elettromagnetiche Industriali
Address: C.so P. Levi, 7, Cascine Vica, Rivoli, Torino, Italy
Phone: 0039 011 9594446
Fax: 0039 011 9591357
Email: [email protected]

See more

Catalog excerpts

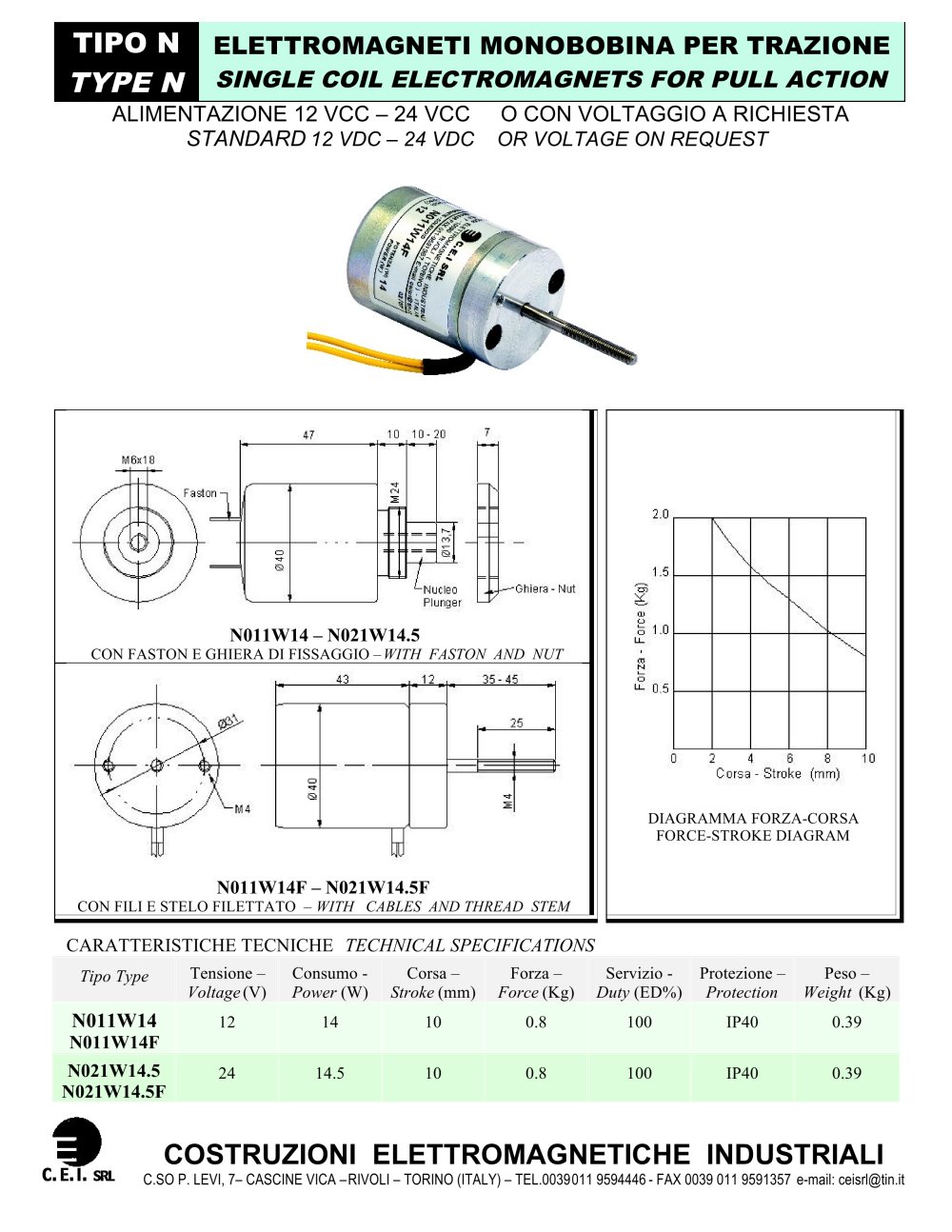

N 011-1

CON FASTON E GHIERA DI FISSAGGIO ֖ WITH FASTON AND NUT DIAGRAMMA FORZA-CORSAFORCE-STROKE DIAGRAM CON FILI E STELO FILETTATO ֖ WITH CABLES AND THREAD STEM Tipo Type Tensione Peso ֖ Voltage (V)Consumo - Power (W)Corsa Stroke (mm)Forza ֖ Force (Kg)Servizio - Duty (ED%)Protezione Protection Weight (Kg) > 2414.5100.8100IP400.39 > C.E.I. srl C.SO P. LEVI, 7֖ CASCINE VICA RIVOLI ֖ TORINO (ITALY) TEL.0039 011 9594446 - FAX 0039 011 9591357 e-mail: [email protected]
