E- ES 60 FAMILY

Product catalog summary

Specifications:
The FAMILY E - ES 60 solenoid is available in two voltage ratings: 12 V DC and 24 V DC. It features a pull current of 47 A and 24.5 A, respectively, and a hold current of 0.65 A and 0.30 A. The solenoid is designed for continuous duty service with a stroke of 50 mm and a starting force of 8.4 Kg. It has windings with insulation class H (180°C) and operates in ambient temperatures ranging from -40°C to 120°C. The unit weighs 1.95 Kg.

Operation:
The solenoid includes two windings: a pulling winding for the initial phase lasting approximately 150 ms to move the plunger, and a holding winding to maintain the plunger's position. Proper operation requires the plunger to reach the end of travel and adhere perfectly to the bottom.

Force Variation:
The force variation coefficient is dependent on ambient temperature, affecting the solenoid's performance.

Design and Options:
The solenoid is designed for dual coil pull or pull-push action, suitable for electric circuits in diesel engines. It offers various configurations with options for voltages, circuits, brackets, optional springs, and electrical connections. The solenoid code is defined by selecting one option from each category.

Electrical Connections:
Connections can be made via Faston, cables, or screws. The solenoid is compatible with starter motors and can be equipped with an internal or external switch. The pull and hold coils are marked and connected accordingly, with specific instructions for Series 1, 2, and 3 configurations.

Accessories:
Available accessories include various threaded dowels, clevis, and articulated joints for different mounting and operational needs.

Catalog excerpts

Rated voltage 12 V DC 24 V DC Pull current 47 A 24.5 A Hold current 0.65 A 0.30 A Duty service Continuous (100%) Stroke 50 mm Force at starting 8.4 Kg Windings insulation class H (180 C) Ambient temperature -40а C 120 C Weight 1.95 Kg > Kg 8.4 (N82) 01020304050 Stroke (mm) 1 Kg = 9.81 Newtons FORCE VARIATION COEFFICIENT ACCORDINGWITH AMBIENT TEMPERATURE AMBIENT TEMPERATURE The solenoid has two windings:An intermittent-service pulling winding involved in the initial phase for approximately 150 ms, with the function of moving the plunger. A continuous-service holding winding, with the function of maintaining the plunger in position. For a proper operation of the solenoid, it is indispensable for the plunger to reach end of travel and to obtain the perfect adherence to the bottom. > 00.40.6 0.81.01.2 255075100125 AVAILABLE OPTIONSThe desired model has to be defined choosing one option in every column, building in this way the solenoid code. Versions Voltages Circuits Brackets Optional Springs Electrical connections > o C E6 pull action 1 = 12 V DC 1 = Series 1 A M1 Standard Faston ES6 pull-push action 2 = 24 V DC 2 = Series 2 B M3 (external) F = Cables 3 = Series 3 V = Faston - screws > CORSO PRIMO LEVI, 7 - 10090 CASCINE VICA - RIVOLI - TORINO (ITALY) - TEL. 0039 0119594446 - FAX. 0039 0119591357e-mail: [email protected] www.cei-italy.it C.E.I. srl size="-3">

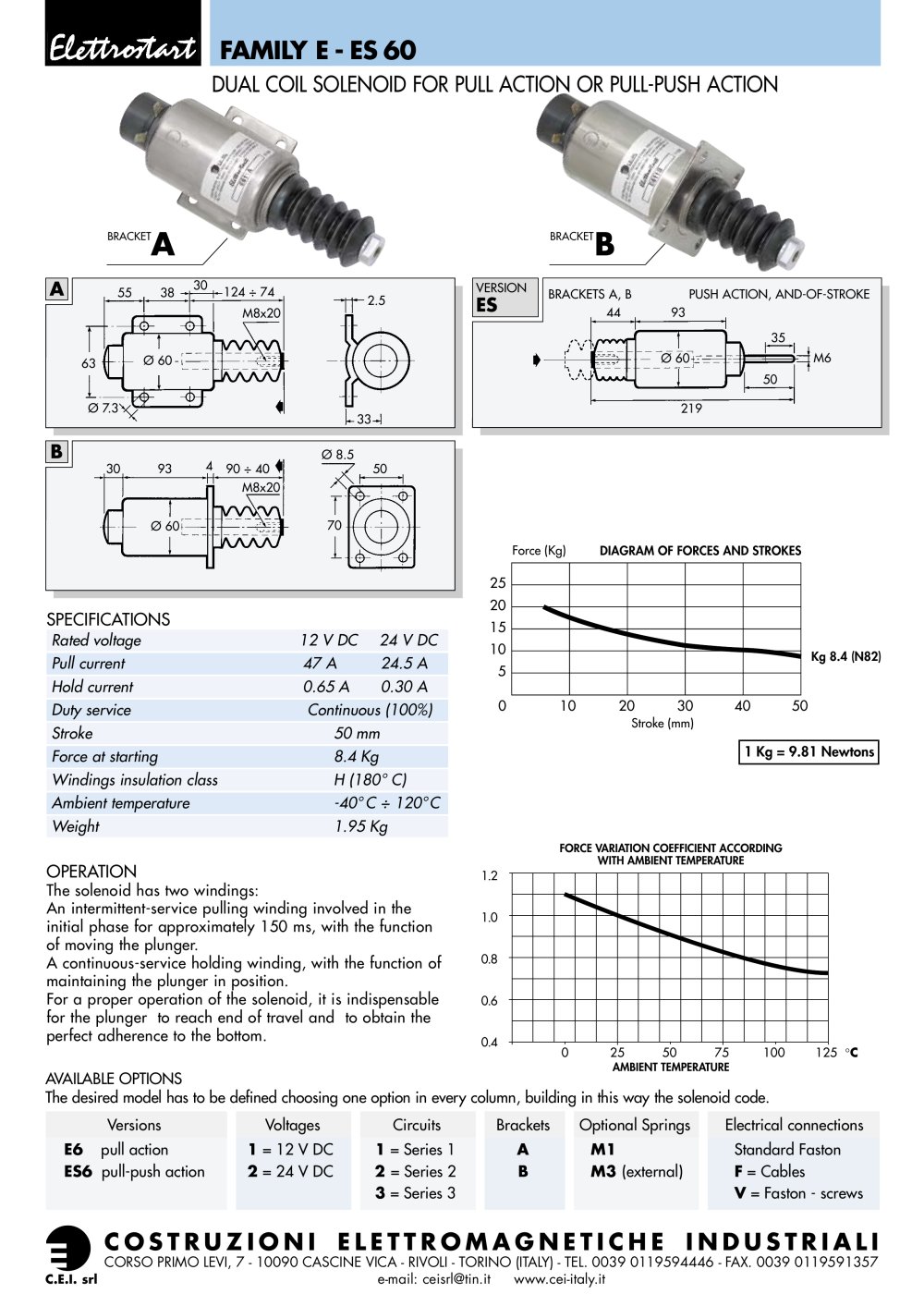

Open the catalog to page 1

PULL COIL HOLD COIL FASTONCONNECTIONS BLUEL = 200 mm SCREWS > BATTERY STARTER MOTORSTARTER RELEҒ STARTER MOTORSTARTER RELE PULL COIL HOLD COIL PULL COIL HOLD COIL TP FASTONCONNECTIONS HOLDBLUE PULL SCREWS H = HOLD P = PULLRED H = HOLDP = PULL L = 200 mm >

Open the catalog to page 2
