E - ES 46 FAMILY

E - ES 46 FAMILY
2Pages

Catalog excerpts

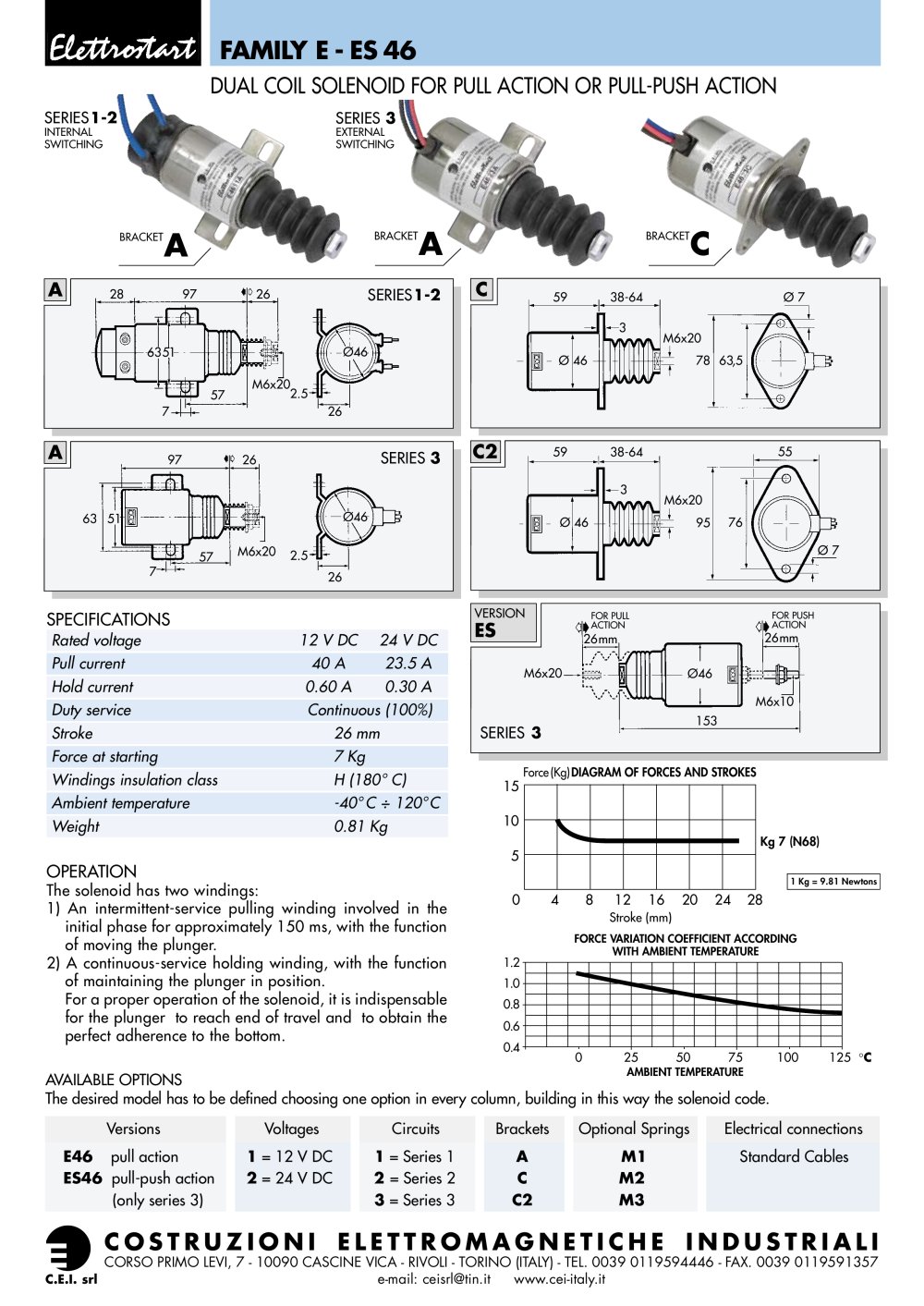

SERIES 1-2 SERIES 3 > INTERNALSWITCHING EXTERNALSWITCHING BRACKET VERSION FOR PULLACTIONFOR PUSHACTION Rated voltage 12 V DC 24 V DC Pull current 40 A 23.5 A Hold current 0.60 A 0.30 A Duty service Continuous (100%) Stroke 26 mm Force at starting 7 Kg Windings insulation class H (180 C) Ambient temperature -40а C 120 C Weight 0.81 Kg > 簘4626 mm26 mm 153M6x20M6x10 51 632897265751 SERIES 3 > Force (Kg) DIAGRAM OF FORCES AND STROKES Kg 7 (N68) 51015 The solenoid has two windings:1) An intermittent-service pulling winding involved in the initial phase for approximately 150 ms, with the function of moving the plunger.2) A continuous-service holding winding, with the function of maintaining the plunger in position. For a proper operation of the solenoid, it is indispensable for the plunger to reach end of travel and to obtain the perfect adherence to the bottom. > 1 Kg = 9.81 Newtons 0481216202428 Stroke (mm) FORCE VARIATION COEFFICIENT ACCORDINGWITH AMBIENT TEMPERATURE AMBIENT TEMPERATURE 00.40.60.81.01.2255075100125 o C AVAILABLE OPTIONSThe desired model has to be defined choosing one option in every column, building in this way the solenoid code. Versions Voltages Circuits Brackets Optional Springs Electrical connections E46 pull action 1 = 12 V DC 1 = Series 1 A M1 Standard Cables ES46 pull-push action 2 = 24 V DC 2 = Series 2 C M2 (only series 3) 3 = Series 3 C2 M3 > CORSO PRIMO LEVI, 7 - 10090 CASCINE VICA - RIVOLI - TORINO (ITALY) - TEL. 0039 0119594446 - FAX. 0039 0119591357e-mail: ceisrl@tin.it www.cei-italy.it C.E.I. srl size="-2">

Open the catalog to page 1

PULL COIL HOLD COIL BLUE BLUE L = 150 mm > BATTERY STARTER MOTORSTARTER RELEҒ STARTER MOTORSTARTER RELE PULL COIL HOLD COIL HOLDBLUE > PULL COIL HOLD COIL RED - PULL > BLACK - COMMON BLUE - HOLD > L = 45 mm UNI CLEVIS AXIAL ARTICULATEDJOINT > 90а ARTICULATEDJOINT AXIAL ARTICULATED JOINT >
