ROTARY SCREW COMPRESSOR

Product catalog summary

Overview: The DRD 40 - 75 HP rotary screw compressors are designed with decades of experience, offering high reliability, performance, and low maintenance. They feature a centrifugal, gravitational, and coalescing separator for efficient air and oil separation, and an AIRLOGIC management system for monitoring and maintenance scheduling.

Specifications: The compressors include a high-efficiency intake filter, asymmetrical profile rotors, an IP 55 electric motor, and a comprehensive cooling system. Standard equipment includes an air-oil separator, oil filter, and sound insulation cover. Optional equipment includes a condensate separator, multicontrol regulation, and energy recovery kit.

Performance and Design: The compressors are designed for high efficiency and low noise, with features like an elastic coupling to absorb vibrations and a cooling system that recycles over 90% of heat. The design facilitates easy maintenance with wide doors and accessible components.

Control and Regulation: The AIRLOGIC electronic control system offers features like automatic restart, remote control, and fault reporting. It prevents issues like reverse rotation and overpressure, while protecting the motor and compressor.

Options and Customization: Available in inverter, dry, and water-cooled versions, the compressors can be customized with features like a high-efficiency pump, European voltage electric motor, and coaxial coupling for better performance and lower maintenance costs.

Technical Data: The document provides detailed technical specifications in accordance with ISO 1217 and CAGI PNEUROP PN8NTC2, including pressure, power, and dimensions for various models.

Catalog excerpts

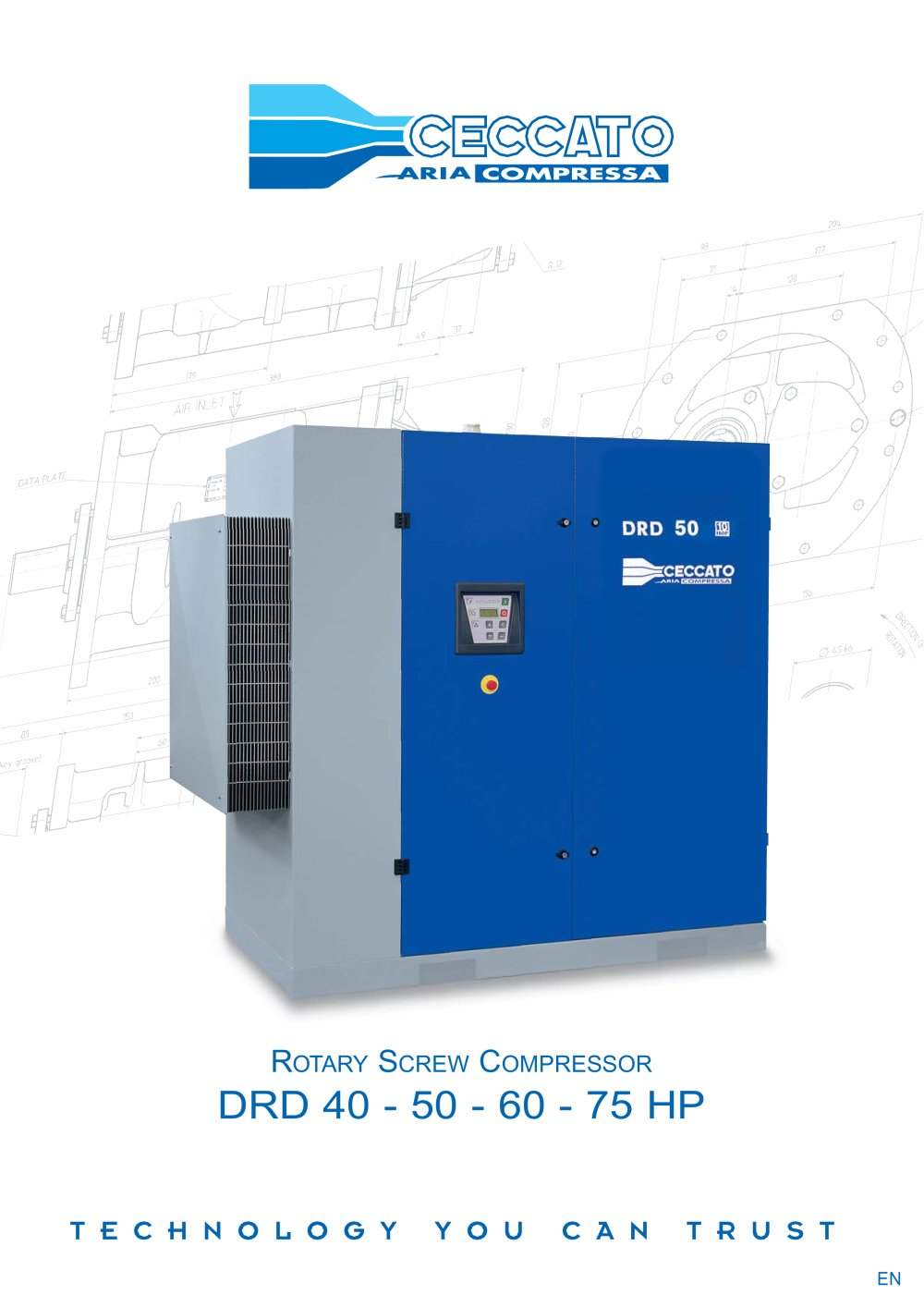

R > OTARY S > CREW C > OMPRESSOR

Open the catalog to page 1

The prefilter panel ensures maximum protection ofinternalcomponents;the high-capacity,silent-running turbineventilator improves cooling capacity;low airspeed reducesthe amount ofdust taken into the unit,careful monitoring of air flows;all these features ensure that all components are efficiently cooled,preventing heat pockets and optimizing operating temperature.The cooling air flow is conveyed to a single expulsionpoint so that over 90% ofthe heat that would otherwise be lost is recovered by simply recycling the cooling air.The aluminum air/oil cooling system features a large surfacearea available...

Open the catalog to page 3

POWER POWERPRESSURE 20%100%0%100%no-loadminmax POWER > DELIVERY DELIVERY > PRESSURE PRESSURE >

Open the catalog to page 4

ROTARY SCREW COMPRESSOR

ROTARY SCREW COMPRESSOR
