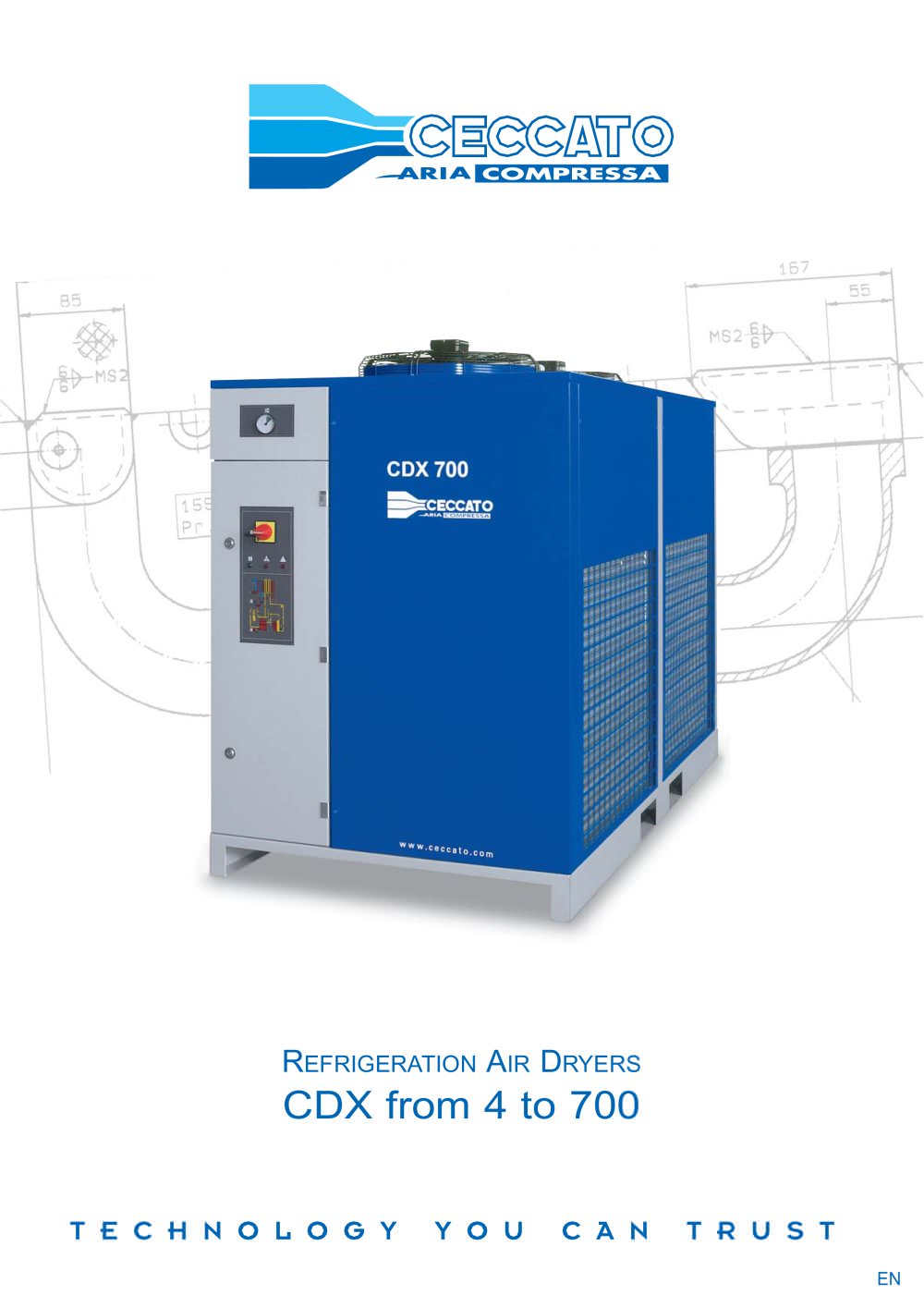

REFRIGERATION AIR DRYERS

Product catalog summary

Introduction
Refrigeration air dryers, specifically the CDX range from 4 to 700, are essential for maintaining the quality and efficiency of compressed air systems. These dryers remove humidity from compressed air, preventing condensate and vapor from causing damage to distribution networks, machinery, and final products.

Specifications
The CDX dryers operate under various conditions with a focus on energy efficiency and environmental protection. They use R404A gas, which is ecological and compliant with EC regulations. The dryers are designed to handle operating pressures up to 16 bar and temperatures up to 55°C.

Installation
The CDX dryers feature a compact design, making them easy to transport and install without special equipment. Installation requires only pneumatic and electrical connections, and the system is ready for use once filters are fitted.

Maintenance
These dryers are designed for low maintenance with long intervals between overhauls. They use high-quality components tested under extreme conditions to ensure reliability and performance.

Quality and Performance
Ceccato Aria Compressa S.p.A. manufactures these dryers, ensuring high reliability and consistent dewpoint under any load condition. The dryers operate automatically, providing energy savings and reducing maintenance needs.

Advantages
The CDX dryers offer several benefits, including energy savings due to low pressure drops, noise-free operation, and no impact on the ozone layer. They ensure a cleaner compressed air distribution network and longer life for pneumatic equipment.

Technical Data
The dryers are available in various models, each with specific flow rates and dimensions. They are designed to operate efficiently under different temperature and pressure conditions, with correction factors provided for varying operational environments.

Conclusion
CDX refrigeration air dryers are a reliable and efficient solution for maintaining the quality of compressed air systems, offering significant energy savings and environmental benefits.

Catalog excerpts

Humidity is a component ofatmospheric air,which can be found in our compressed air distribution systems and the machinesthat use the compressed air in the form ofcondensate and/or vapour. Ifthe condensate can be easily separated and discharged,humidity,in the form ofvapour,will follow the compressed air flow allthe way to the final product. When it then cools,a part ofthis humidity present in the compressed air condenses and over time causes serious damage to the distribution network,the machines using the compressed air and the final product. > For example,5.1 l/h ofcondensate is separated from...

Open the catalog to page 2

Ceccato Aria Compressa S.p.A.is one ofthe world's leading manufacturers ofdryers and is the only air compressormanufacturer that designs and manufactures all the dryers they use for their range ofcompressors in their own factories. > High reliability attained through the development ofthe dryers in the CDX range.First-class components that have been tested under theworst possible operating conditions.Constant dewpoint under any load condition.Automatic operation. > Years ofexperience,thequality ofthe components we use,the generous size of the unit,its simple designand effective control systemall...

Open the catalog to page 3

High energy savings due tolow pressure drops throughout the system.No wastage ofcompressedair because ofthe intelligentautomatic discharge ofcondensate.A cleaner compressed airdistribution network withoutleakage.Greater reliability and longerlife ofapplications.Less maintenance and easiermaintenance both due to thereliability ofthe components and the easy access to any internal component.Safe and reliable operation. > Օ Discharges only water,NOT compressed air = Energy savings Noise-free,no acoustic impact = Environmental protection > R No CFC = No impact on the OZONE LAYEREcological thanks to...

Open the catalog to page 4

AIR OUTLETAIR INLET CONDENSATE DRAIN 1 Refrigerant fluid compressor 2 Condenser 3 Motor-driven ventilator 4 Air/Refrigerant Evaporator 5 Condensate separator with a demister filter 6 Air/air heat exchanger 7 Refrigerant fluid separator 8 Maximum pressure switch 9 Service valve Minimum pressure switch k Pressure switch,fan control l Hot gas bypass valve m Refrigerant fluid filter n Capillary Tube o Service valve p Dewpoint thermometer q Impurity collector r Automatic discharge ofcondensate s Instrument panel >

Open the catalog to page 5
