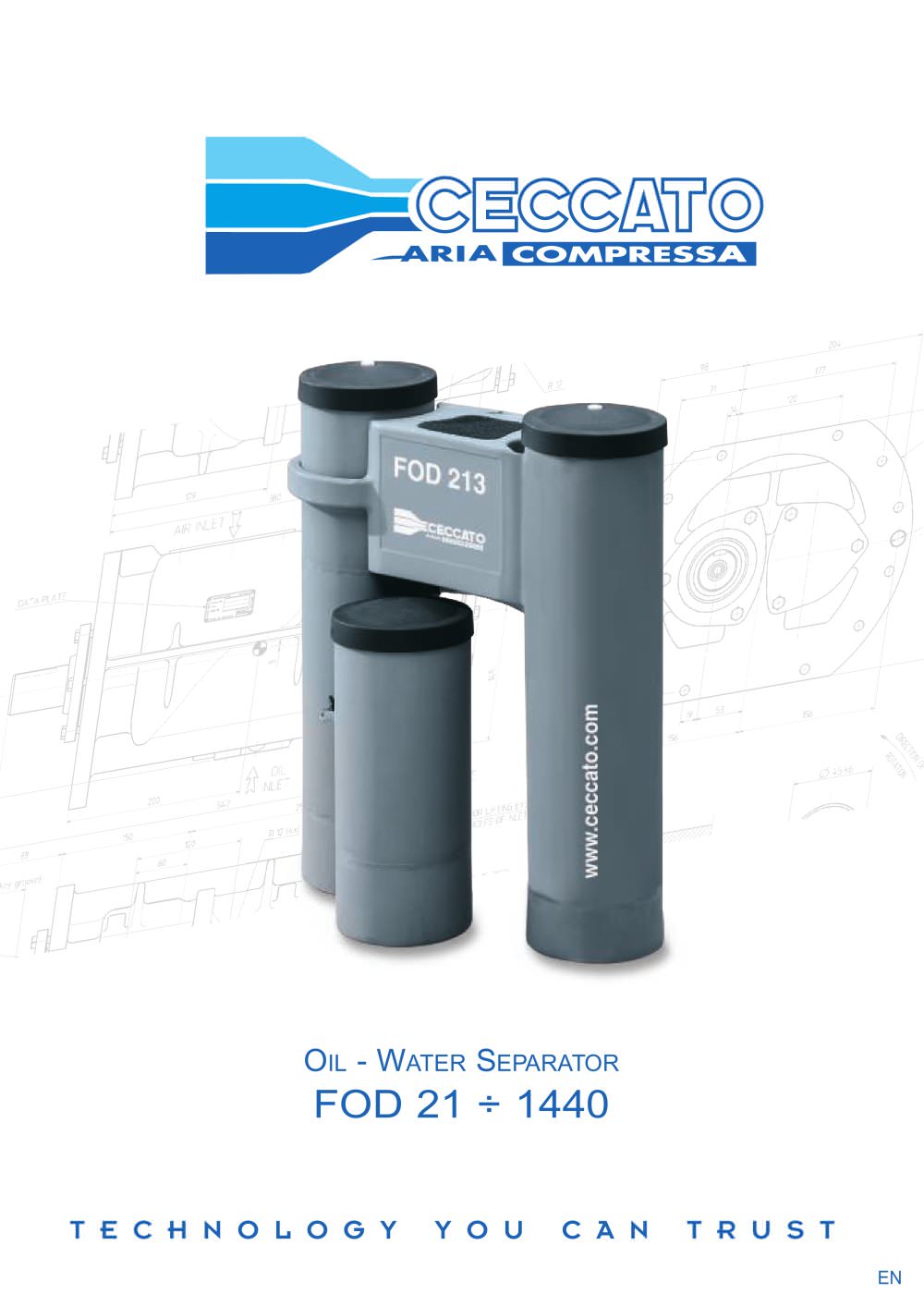

OIL - WATER SEPARATOR
4Pages

Every process involving the compression,cooling and treatment ofcompressed air produces condensates that may contain moreor less oil depending on the type ofcompressor. > As an example, if a compression system with arefrigerant dryer with a capacity of 20 m 3 /min, 10 barwere to operate at 60% full load, two shifts a day, for 220 days/year, at a room temperature of 25 C and 70% relative humidity, its condensate production would be about 39,000 litres/year. It is well known that oil is a high pollutant.Even a small quantity can cover a vast water surface. Collecting and disposing ofthese...

for the treatment ofcondensates derived from compressed air.FOD is a state-of-the-art multistage cascade filtration system forthe separation ofoil from condensate water.This innovative patented system is not affected by condensatedischarge under pressure.The condensates can be channelled directly into the intake pipewithout any need for special collection manifolds.The floating oil skimmer filters and the final active carbons are notdamaged by vibrations,jolts or sprays,and guarantee consistent high long-term performance without problems ofany kind. > Maintenance indicatorSilencersExpansion...
