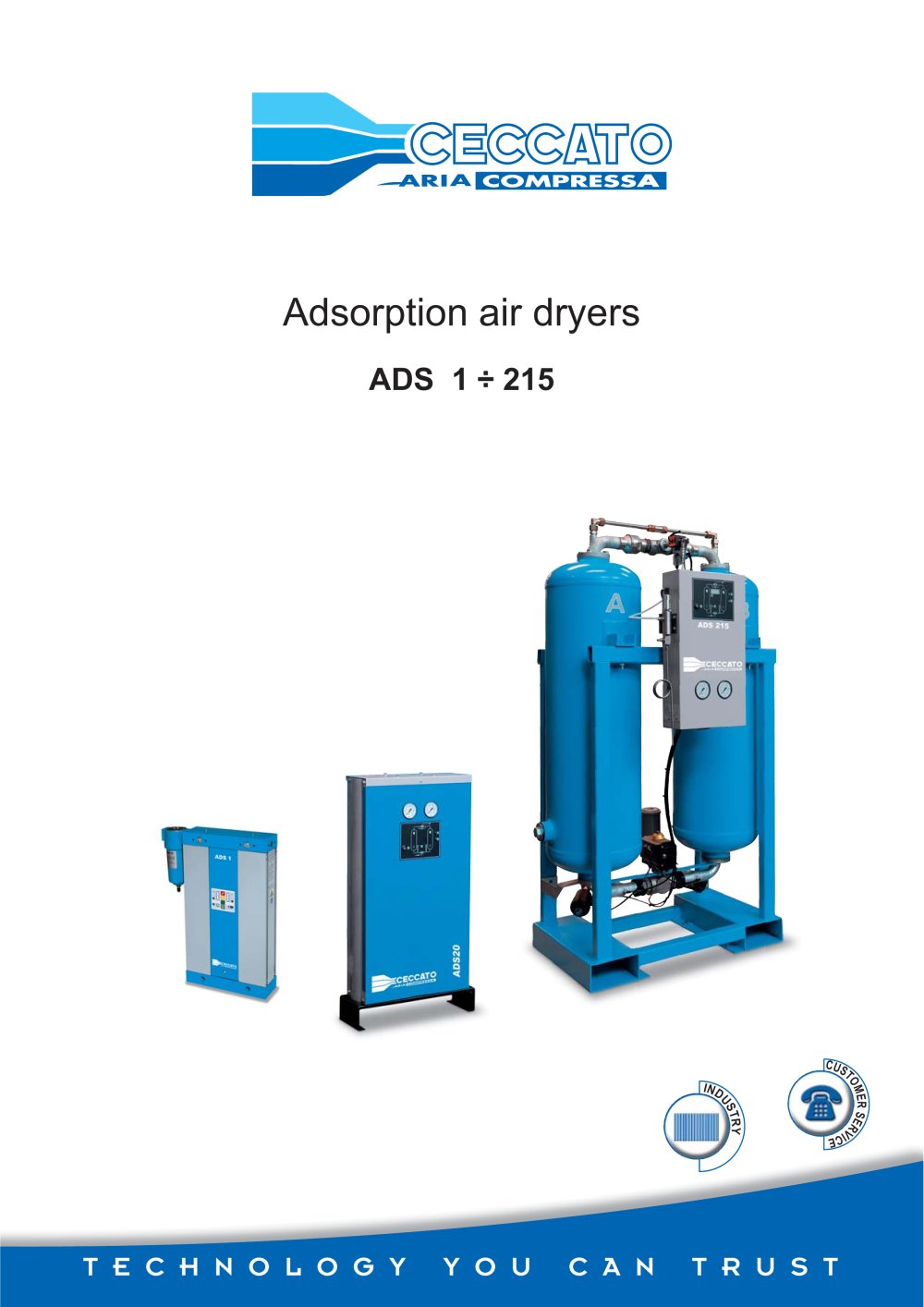

Adsorption air dryers

Product catalog summary

Overview: The document provides detailed technical information on adsorption air dryers, specifically the ADS 1 to 215 range, used in compressed air systems. These dryers are essential for removing moisture from compressed air to prevent damage and ensure efficient operation in various industrial applications.

Compressed Air and Dew Point: Compressed air is cooled to 30°C, and water vapor is separated. The dew point is critical as it indicates the temperature at which air becomes saturated with moisture. Maintaining a low dew point is essential to prevent condensation and ensure the reliability of compressed air systems.

Drying Process: The drying process involves passing wet air through a desiccant material that adsorbs water vapor. The system alternates between drying and regeneration phases, where dry air purges moisture from the desiccant. This process is managed by a three-way valve and electronic controls.

ADS Range Specifications:

ADS 1-10: Compact design with integrated filters, electronic control, and capacities from 114 to 990 l/min at 7 bar. Standard dew point is -40°C.
ADS 20-80: Floor-mounted with separate pre and post-filters, capacities from 1920 to 7800 l/min at 7 bar. Optional dew point control available.
ADS 110-215: High capacity with electronic timer control and optional dew point management. Capacities from 10800 to 21600 l/min at 7 bar.

Technical Features: The dryers feature multiport connections for versatile installation, corrosion-resistant materials, and automatic electronic controls for efficient operation. High-efficiency silencers ensure quiet operation.

Applications: These dryers are suitable for industries such as chemical, pharmaceutical, petrochemical, food, and more, where high-quality air is crucial.

Maintenance and Original Parts: Regular maintenance with original parts is recommended to ensure optimal performance and longevity of the dryers.

Correction Factors: Tables are provided to adjust performance based on varying inlet pressures, temperatures, and dew points.

Catalog excerpts

COOLING SYSTEM 30 C 100% UR10 bar2,8 grH DRYING PROCESSD.P. Ж 40 CRelative pressure 10 bar0,011 grH2O/m3AIR DISTRIBUTION10 barD.P. -40 аC AIR INTAKE20 C 70% UR760 mm Hg 12 grH >

Open the catalog to page 2

1 Prefi lter removes particulates and coalesced liquids from the air stream. 2 Removable front panel allows for easy access for servicing without disconnecting the pipe system. 3 Postfi lters, integrated in the dryer, removes particulate in the air stream. 4 Electronic control housed in an IP65 box, which enables: - regeneration cycle management - regulation status - dafault diagnonis - remote default report - Capacities from 114 up to 990 l/1֒ at 7 bar. Multiport inlet and outlet; this arrangement ensures easy and fast installation. Versatile installation with multiport system and six possible...

Open the catalog to page 4

Reliable operation with standard components tested for continuous service.Օ The compact dryer can be installed on the fl oor (fl oor mounted kit as standard). The inlet prefi lter FMM and the outlet postfi lter FPRE, have to be mounted on the air distribution line. The fi lters are included but not pre-mounted. 1 Base frame makes it easy to transport by fork lift. 2 Pressure gauge Ֆ tower A. 3 Pressure gauge tower B. 4 Stainless steel purge nozzle. 5 Air outlet connection. 6 Air intlet connection. 7 High effi ciency silencers with integrated safety valve. > TECHNICAL INFO - Capacities from 1920...

Open the catalog to page 5

1 Wide vessels for optimum air speed and reliable drying. Unit is rather low for its capacity due to fl anges that are built into the vessels. 2 3 > Air outlet connection. Robust frame, including fork lift slots for easy installation. 4 Pressure Dew Point sensor (ADS/CD). 5 Pressure Dew Point digital display (ADS/CD). 6 Two manometers integrated in the control panel to show pressure in the vesse ls A/B. Developed with high quality components, ADS dryers guarantee a stable dew point of -40C. The use of an optimized desiccant volume and a wide vessel, ensure a low air speed and a longer contact...

Open the catalog to page 6

Residual particles< 1 m > -40 װC(1.1.2*)Cold zonesInstruments -70 C(1.1.1*)Arctic zonesSemiconductors

Open the catalog to page 7
