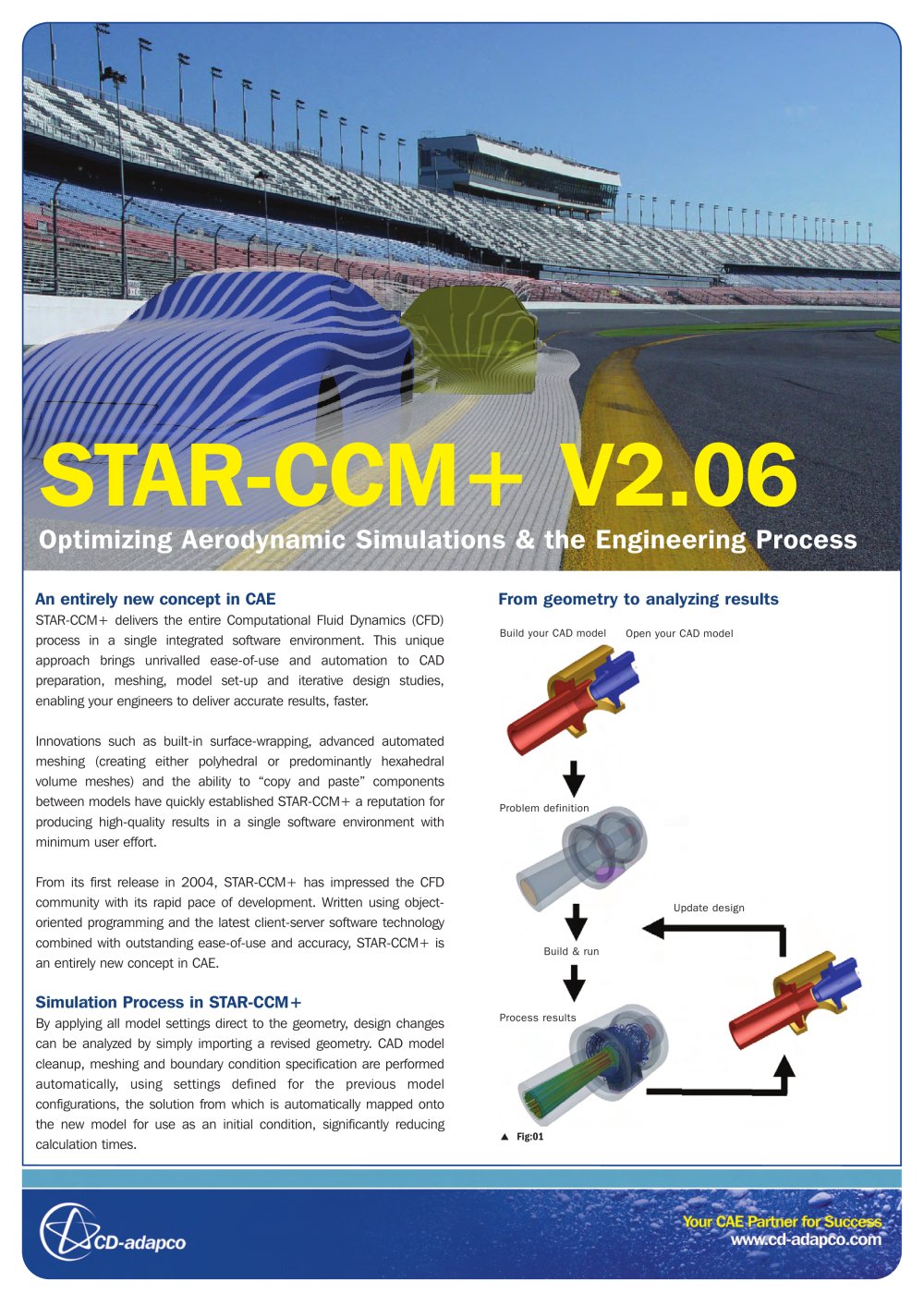

An entirely new concept in CAE From geometry to analyzing results > STAR-CCM+ delivers the entire Computational Fluid Dynamics (CFD)process in a single integrated software environment. This unique approach brings unrivalled ease-of-use and automation to CADpreparation, meshing, model set-up and iterative design studies,enabling your engineers to deliver accurate results, faster. Innovations such as built-in surface-wrapping, advanced automatedmeshing (creating either polyhedral or predominantly hexahedralvolume meshes) and the ability to copy and pasteӔ components between models have quickly established STAR-CCM+ a reputation forproducing high-quality results in a single software environment withminimum user effort.From its first release in 2004, STAR-CCM+ has impressed the CFDcommunity with its rapid pace of development. Written using object-oriented programming and the latest client-server software technologycombined with outstanding ease-of-use and accuracy, STAR-CCM+ isan entirely new concept in CAE. Build your CADmodelOpen your CADmodel Problem definition Build & runUpdate design Process results Simulation Process in STAR-CCM+ > By applying all model settings direct to the geometry, design changescan be analyzed by simply importing a revised geometry. CAD model cleanup, meshing and boundary condition specification are performedautomatically, using settings defined for the previous modelconfigurations, the solution from which is automatically mapped ontothe new model for use as an initial condition, significantly reducingcalculation times. Fig:01 size="-2">
