Multifunction Safety Device CAT'SAFE

Product catalog summary

Overview: The i-CAT01 is a multifunction safety device designed for electricians working on low, medium, and high voltage networks. It combines three essential functions: voltage proximity alarm, LED headlamp, and SOS alert system, all in a single unit.

Specifications:

Voltage Proximity Alarm: Detects AC electric fields from 1 to 500 kV, with progressive visual and audible alerts. Not compatible with DC.
LED Headlamp: Provides 130 lumens output with three brightness levels and a flash mode. Offers 7-hour battery life at full power.
SOS Button: Emits emergency Morse signals (visual and audible) to locate workers in danger, usable at night and linked to a Lone Worker Alarm Device if activated.
General Specifications: Part number i-CAT01, weighs 150 g, dimensions 84.6 x 70.2 x 43.4 mm, rechargeable lithium battery.

Standards and Compliance:

Complies with RED (Directive 2014/53/EU), EMC (Directive 2014/30/EU), REACH, RoHS, UL 94 V-2.
Insulation tested to 10 kV (IEC 60900).
IP65 and IK07 rated for durability.

Additional Features:

Connected Lone Worker Alarm Device (optional, subscription-based) with fall and immobility detection, web management platform, available on iOS & Android.
Included accessories: Quick Start guide, adhesive clips, helmet strap, USB-A/USB-C charging cable.

Contact Information: CATU, 10 Avenue Jean-Jaurès, B.P.2, 92222 BAGNEUX CEDEX, France. Phone: +33 (0)1 42 31 46 10, Email: [email protected]

Catalog excerpts

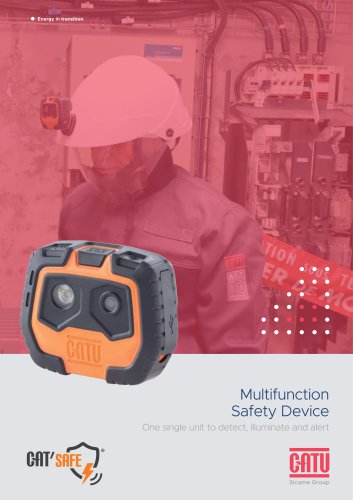

One single unit to detect, illuminate and alert

Open the catalog to page 1

Operators working on electrical installations face constant risks: proximity to live cables reduced visibility, isolated or confined environments. OffT'SflFEJ Our multifunction device i-CAT01 is the answer for electricians working on LV, MV and HV networks. 3 essential functions in a single device Working near live networks? 1H11. Voltage proximity alarm Automatically detects AC electric fields, even before the hazard is perceived. Progressive visual and audible alert according to proximity. Awareness zone Alert zone Danger zone • Range: 1 - 500 kV AC (not compatible with DC) • Integrated self-test...

Open the catalog to page 2

Connected Lone Worker Alarm Device (optional and subscription-based) Lone Worker Alarm Device via application. F all detection Immobility detection W eb management platform A vailable on iOS & Android General specifications RED: Directive 2014/53/EU (Radio Equipment Directive) EMC: Directive 2014/30/EU (Electromagnetic Compatibility) REACH RoHS UL 94 V-2 Insulation tested to 10 kV (IEC 60900) IP65 - IK07 Part number: i-CAT01 • Weight: 150 g • Dim.: 84.6 x 70.2 x 43.4 mm • Rechargeable lithium battery Included accessories Included in the carrying case: - 1 Quick Start guide 2 adhesive clips Clip...

Open the catalog to page 3

Sicame Group 1 boulevard Marius Vivier Merle, 69003 Lyon, France 10 Avenue Jean-Jaures, B.P.2 92222 BAGNEUX CEDEX, France

Open the catalog to page 4
