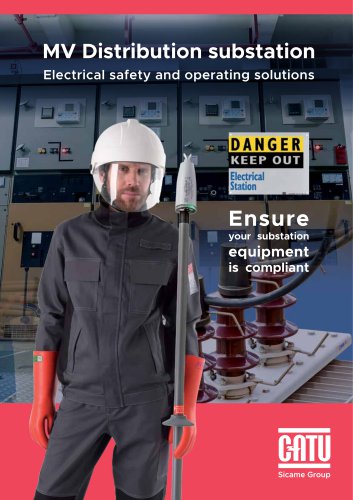

Electrical safety and operating solutions your substation Sicame Group

Distribution substation Operating and safety equipment for distribution substations 4 Categories of risk‑prevention equipment (Recommended) • Operating and safety equipment (A); • Fire extinguishing equipment (B); • Signage (C); • Emergency lighting (D); A - EARTHING AND SHORT-CIRCUITING EQUIPMENT

The conditions for implementation, the selection and use of personal protective equipment as well as their maintenance are defined by the employer, based on risk assessment. To enable maintenance and rescue operations, the following must be present and maintained: • Safety stick • Insulating mat for maximum voltage up to 36 kV or insulating platform for maximum voltage up to 63 kV. • Insulating gloves for maximum voltage up to 36 kV. • Voltage detector to verify the absence of voltage The equipment must be chosen according to the maximum voltage of the installation. This equipment must be inspected...

Substationsignage Interior signage FOR ELECTRIC SMOCK VICTIMS First aid for electrical shock DEAD LINE WORKING MEDIUM VOLTAGE Dead line working medium voltage - Golden rules

AM-344-GB Grounding of metallic parts Outdoor signage AM-61-GB Aluminium warning sign “Danger – Electrical station

Distribution substation Intervention equipment kits Reference CG-3-10-NR Class 3 Insulating gloves IEC 60903 < 26,5 kV max Size 10 CG-35-2 Glove box with window - 60 x 210 x 460 mm CI-23 Fuse holder (sold without fuse) 0 maxi 85 mm 101 x 224 x 476 mm CS-45 Rescue stick 45 kV max Length: 1.65 m CI-06-D wall-mounted supports Supplied with the CS-45 - A Check the condition of your Insulating Gloves!

Medium voltage detectors Voltage detectors suitable for use during work or interventions on medium-voltage (MV) distribution substations with bare conductors or plug-in terminals. Reference Voltage range Supplied with fixed stick, length 1.25 m Recommended telescopic stick**: CE-4-21 length 1.30 / 2.10 m for plug-in Recommended fixed capacitive N/A stick**: CC-45-K length Specify end fitting: C or K ** To be ordered separately

Distribution substation Personal Protective Equipment for substations IEC 397 IEC 50365 Insulating gloves Latex insulating gloves, specially treated to obtain high dielectric properties. Supplied in UV-resistant plastic bag. Safety shoes Safety shoes, low, with class 0 (1000 V AC) insulating sole. EN ISO 20345:2022 Pr-EN50321-2 :2023 (03/2024) § 5, 5.2.1 => 5.2.3 The use of these safety shoes is supplementary to the mandatory use of a mat or platform. Electrician helmet with integrated face shield Helmet with integrated face shield (anti-scratch and antifog) for arc flash protection. . IEC 61482-1-2...

MT-8407/3-P - 14 kA / 1 sKit with adjustable clamps 0 5 to 34 mm Compliant with standard IEC 61230 ^ MT-5805-P - 20 kA / 1 s 3 x earthing clamps / 1 x MT-840 earthing clamp / 1 connection set consisting of 3 extra-flexible short-circuit cables with a 50 mm2 cross-section, PVC-sheathed, each 1.2 m in length, and 1 extra-flexible copper earth cable with a 25 mm2 cross-section, PVC-sheathed, and 2.5 m in length / 1 x MT-830-P pole with female hexagonal tip 3 x MT-815-C earthing clamps / 1 x MT-840 earthing clamp / 1 connection set consisting of: 3 extra-flexible copper short-circuit cables with...

Distribution substation Molded plastic material. Installed from the outside by tightening three screws onto a steel mounting flange. 0 60 mm opening. To store and protect PPE and equipment from dust in the substation. 2 fixed shelves, transparent door for easy identification. Double locking with two keys ensures the safety of the contents. Delivered with 1 set of stickers (LoTo / PPE / Voltage detector / Emobility). 2 operating modes: BAPI (factory configuration) or BAES (automatic start when the supply is disconnected). Autonomy from 1 hour to 3 hours depending on the switch position: Operating...

Substation signage Care for electric shock victims Mandatory rules Electrical hazard lightning symbol Sicame Group 10 avenue Jean Jaures 92220 BAGNEUX Neutral grounding Grounding of metallic parts Exterior poster Personal Protective Equipment (PPE) Helmet with face shield Insulating gloves Medium-voltage detectors and insulating sticks Voltage detector on fixed stick Detector for plug-in terminals Safety shoes Earthing and short-circuiting equipment Additional equipment Earthing device with adjustable clamps Earthing device with round/flat clamps Request for a quote to be sent back to your usual...

GROUP Sicame Group 1 boulevard Marius Vivier Merle, 69003 Lyon, France 10 Avenue Jean-Jaures, B.P.2 92222 BAGNEUX CEDEX, France Sicame Group ComST 2026 - ©wichientep - ©manine99 - 123rf - GB-DOC-POSTE
