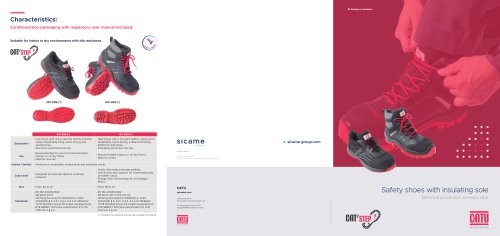

CATU INSULATING SHOES

Product catalog summary

Product Overview: The document details the specifications and features of live working safety shoes designed for electrical risk prevention, specifically for medium voltage (MV) environments. These shoes provide protection against electrical hazards up to 18 kV and comply with ASTM F2413: 2018 standards.

Specifications:

Upper Material: Made from full grain leather with a waterproof tongue and Thinsulate waterproof membrane. Features reinforced seams and a side zip for quick fitting.
Size Range: Available in sizes 39 to 47.
Marking: SB P HRO WRU E FO SRC, indicating various safety and performance features such as penetration resistance, heat resistance, water resistance, energy absorption, fuel oil resistance, and slip resistance.
Certification: Certified by ASQUAL 0334 with reference AET 0075/131/161/10/20/2474.
Midsole: Anti-perforation textile midsole with a resistance of 1430N.
Sole: Made of PU/nitrile rubber, resistant to temperatures up to 300°C.

Usage Recommendations: These shoes are designed for use in dry areas and should not be used where there is a risk of moisture penetration.

Comfort and Design Features:

Soft leather rear tendon indentation for comfort.
Side zip for fast threading.
Composite protective toe cap with 240J resistance.
Overall height of 24 cm for good ankle support.
Heel breast of 18 mm and a rigid sole suitable for working on ladders and towers.

Packaging and Reference: Each pair weighs 1.02 kg (size 42) and is packed in a box with a normative leaflet. The reference number is MV-232/1-(*), with the size added to the reference (e.g., MV-232/1-43).

Contact Information: SICAME GROUP, 10, avenue Jean Jaurès – 92220 Bagneux, France. Phone: (33) 01 42 31 46 46, Fax: (33) 01 42 31 46 32.

Catalog excerpts

ASTM F2413 : 2018 ISO 20345 : 2011 EXPERT IN ELECTRICAL RISK PREVENTION SICAME GROUP

Open the catalog to page 1

Live working safety shoes with insulating sole with electrical hazards resistance: 18 kV. The MV live working shoes protects the operators working on the ground, against electrical hazards up to 18 kV consecutive to an accidental potential rise of arms and brackets, more than a meter of a support. Conform to ASTM F2413 : 2018. COMFORT Rear tendon indented soft leather. SPEED THREADING Side Zip for fast fit. • nti-perforation midsole A textile (1430N) • ubber sole: PU/nitrile R Resistant to 300° C electrical routine test GOOD ANKLE Overall height: 24 cm. ATTENTION These safety shoes are specially...

Open the catalog to page 2
