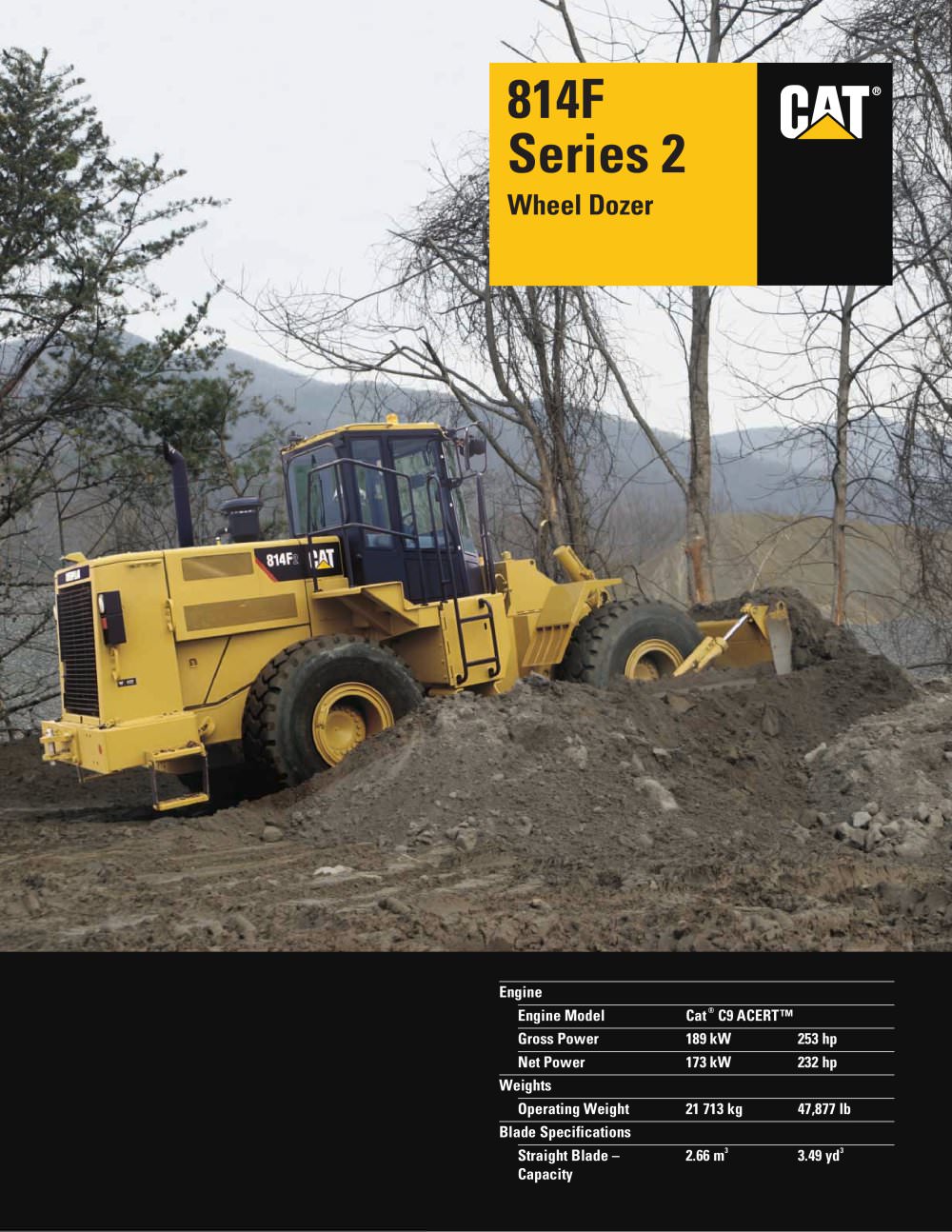

Engine Engine ModelCat > ή C9 ACERT Gross Power189 kW253 hp Net Power173 kW232 hp Weights Operating Weight21 713 kg47,877 lb Blade Specifications Straight Blade ٖ 2.66 m > 3 3.49 yd > 3 Capacity >

✔ ✔ pg. 8 pg. 10 pg. 11 Operator Station and Controls Optional Features Serviceability Operator comfort and productivityaremaximized by excellent visibility, careful positioning of levers, switches and gauges, attention to air quality andsound control, as well as built-in convenience for your operators personal items. Air suspension seat, air conditioningand fast fill adapter are a few of the options available to enhance the 814FSeries 2. Rear view monitor and satellite radio options help make the operator more comfortable and efficient. Many convenient service features suchas hinged service...

ADEM IV Fuel System. Is a Caterpillar Dual Cooling Jets. Pistons. Valves. Four per cylinder allow for goodairflow, enhancing fuel efficiency and heat rejection. Valves and unit injection system are camshaft-actuated for precise timing. Are two piece articulated withforged steel crowns for excellent strength and aluminum skirts for reduced weight. Pistons are oil cooled for increased heat dissipation and longer life. In the block sprayoilon the piston skirt and cylinder bores keep ring temperatures low for long ring and liner life with excellent oil control. Torque Rise. Is increased as a result...

Four Piece Axle. Contains two axleshaft housings the center housing and the intermediate housing. Features and benefits of this design include:֕Inboard brakes on the front axle onlyare positioned immediately adjacent to the differential and operate on thelow torque side of the final drive, requiring less braking to stop the machine. Front Axle. Rear Axle. Includes a trunnion,twotrunnion supports and associated bearings, allowing it to oscillate plus orminus 12 degrees. Is rigidly mounted to theframe to support the weight of the compactor, internal torque loads and external loads applied during...

Blade Package. Straight Blade. Is standard on the814FSeries 2. Consists of blade, pusharms, trunnion mounting, dozer length skid plate, reversible cutting edges, self-sharpening end bits, hydraulic lines guard and hydraulic blade cylinders. Dozer Front Frame. Operator Controls. Lift and tilt/tip arestandard options and the levers are located to the right of the operator. Blade Options. Contact Cat Work Toolsand Services for additional blade options which include:ٕCoal scoop with tilt Woodchip scoop with tilt ՕCoal U-blade with 25 degreewingangle Built specificallytohandle greater amounts of rimpull,...

13 Windshield Washers/Wipers. 14 Rear Vision Camera Monitor. Within-the-blade washer delivery system are standard features on front and rear windows. The front wiper hasintermittent speed capability. Connected to a camera mounted on theradiator guard, this monitor allows the operator to see the area behind themachine. 9 Built-In Storage Space. 12 Decelerator Pedal. On the left acts asboth an engine decelerator and a brake that overrides the engine speed selected by the throttle lock. This enables the operator to slow down when throttle lock is engaged and to return to throttle lock without pressing...

Tire Options. Are available fromMichelin (two options). High Intensity Discharge (HID) Lights. Adds four lights on the cab and two onthe radiator guard to brighten up the work area. HID lights are two times brighter than the standard halogen lights.Note: These lights will be availablemid-2007. Counterweight. Is located on eithersideof the push arms. For each specific application, there is a correct machine weight for proper balancing of traction, flotation, mobility and response. Lower machine weight is usually required for typical second gear applications such asfill spreading, stockpiling,...

Maintenance Services. More equipmentbuyers are planning for effective maintenance before buying equipment. Choose from your dealers wide range of maintenance services at the time you purchase your machine. Repair option programs guarantee the cost of repairs up front. Diagnostic programs such asSҷOS Operation. Improving operatingtechniques can boost your profits. YourCat dealer has training videotapes, literature, application and equipment training courses and other ideas to help you increase productivity. > Product Support. You will find nearlyall parts at our dealer parts counter. Catdealers...

Engine ModelCat > C9 ACERTΙ Forward 15.7 km/h3.6 mph Gross Power189 kW253 hp Forward 210.2 km/h6.4 mph Net Power173 kW232 hp Forward 317.9 km/h11.2 mph ISO 3046-2173 kW232 hp Forward 431 km/h19.3 mph ISO 9249175 kW235 hp Reverse 16.5 km/h4.1 mph SAE J1349173 kW232 hp Reverse 211.6 km/h7.3 mph EEC 80/1269175 kW235 hp Reverse 320.4 km/h12.7 mph Torque Rise30% Reverse 434.9 km/h21.8 mph Bore112 mm4.4 in Stroke149 mm5.9 in Displacement8.8 L537 in > 3 Cylinders6Engine meets U.S. Environmental Protection Agency Tier 3emissions regulations and Stage IIIA EU Directive/97/68/EC.ՕEngine power ratings apply...

Steering Angle36Ѱ StandardsMeet required standardsThe operator sound exposure Leq (equivalent soundpressure level) measured according to the work cycle procedures specified in ANSI/SAE J1166 OCT98 is 78 dB(A), for the cab offered by Caterpillar, when properly installed, maintained and tested with the doors and windows closed.ՕHearing protection may be needed when operating withanopen operator station and cab (when not properly maintained or doors/windows open) for extended periods orin noisy environment.The exterior sound pressure level for the standard machinemeasured at a distance of 15 m (49.2...

1 Height to Top of Cab3326 mm10 ft 11 in 7 Center Line of Rear Axle 1675 mm5 ft 6 into Hitch 2 Height to Top of Exhaust Pipe3304 mm10 ft 11 in 3 Height to Top of Hood2373 mm7 ft 10 in 8 Wheelbase3350 mm11 ft 4 Height to Bottom of Ladder441 mm1 ft 6 in 9 Length with Blade on Ground6881 mm22 ft 7 in 5 Ground Clearance to Bumper748 mm2 ft 6 in 10 Ground Clearance366 mm1 ft 3 in 6 Center Line of Rear Axle to1871 mm6 ft 2 inEdge of Bumper >
