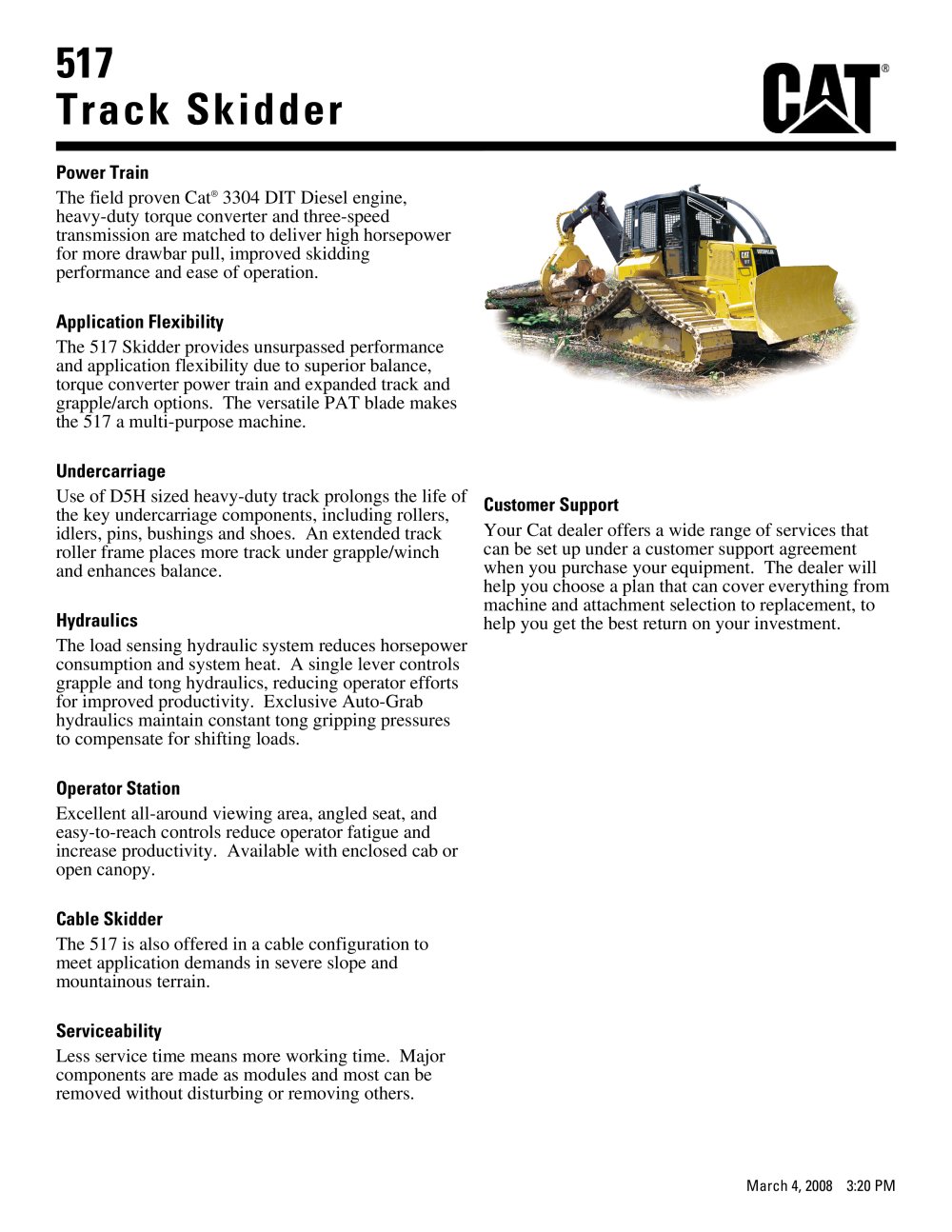

517 Track Skidder Power Train The field proven Cat® 3304 DIT Diesel engine, heavy-duty torque converter and three-speed transmission are matched to deliver high horsepower for more drawbar pull, improved skidding performance and ease of operation. Application Flexibility The 517 Skidder provides unsurpassed performance and application flexibility due to superior balance, torque converter power train and expanded track and grapple/arch options. The versatile PAT blade makes the 517 a multi-purpose machine. Undercarriage Use of D5H sized heavy-duty track prolongs the life of the key undercarriage components, including rollers, idlers, pins, bushings and shoes. An extended track roller frame places more track under grapple/winch and enhances balance. Hydraulics The load sensing hydraulic system reduces horsepower consumption and system heat. A single lever controls grapple and tong hydraulics, reducing operator efforts for improved productivity. Exclusive Auto-Grab hydraulics maintain constant tong gripping pressures to compensate for shifting loads. Operator Station Excellent all-around viewing area, angled seat, and easy-to-reach controls reduce operator fatigue and increase productivity. Available with enclosed cab or open canopy. Cable Skidder The 517 is also offered in a cable configuration to meet application demands in severe slope and mountainous terrain. Serviceability Less service time means more working time. Major components are made as modules and most can be removed without disturbing or removing others. Customer Support Your Cat dealer offers a wide range of services that can be set up under a customer support agreement when you purchase your equipment. The dealer will help you choose a plan that can cover everything from machine and attachment selection to replacement, to help you get the best return on your investment. March 4, 2008 3:20 PM

517 Track Skidder Specifications March 4, 2008 3:20 PM 2 Engine Net Flywheel Power 89.5 kW 120 hp Engine Model Cat® 3304 DIT Gross Power 101 kW 136 hp Weights Operating Weight 18 364 kg 40,450 lb Operating Weight 17 343 kg 38234.72 lb Operating Specifications Track on Ground 2910 mm 114.57 in Travel Speed - Fwd. 1st 3.7 km/h 2.3 mph Travel Speed - Fwd. 2nd 6.6 km/h 4.1 mph Travel Speed - Fwd. 3rd 11.5 km/h 7.1 mph Travel Speed - Rev. 1st 4.6 km/h 2.8 mph Travel Speed - Rev. 2nd 8 km/h 5 mph Travel Speed - Rev. 3rd 14.2 km/h 8.8 mph Steering Clutch/Brake Transmission Transmission 3-Speed Powershift...

March 4, 2008 3:20 PM 4 517 A B C D E F Single Function 2465 mm / 96 in 909 mm / 36 in 2974 mm / 117 in x 1000 mm / 39 in x Swing Boom Arch 3601 mm / 142 in 1500 mm / 59 in 4115 mm / 162 in 2748 mm / 108.1 in 1491 mm / 59 in 1249 mm / 49.2 inISO Grapple for 517 A B C D 2.13 m / 84 in (Sorting) 1980 mm / 78 in 0.74 m2 / 8 ft2 1680 mm / 66 in 2130 mm / 84 in 2.29 m / 90 in (Bunching) 1920 mm / 75 in 0.74 m2 / 8 ft2 1640 mm / 64 in 2290 mm / 90 in Grapples Choose from a variety of grapple conguration to meet your needs. Sorting Grapple • Used for 305 mm (12 in) or larger diameter trees • Designed...
