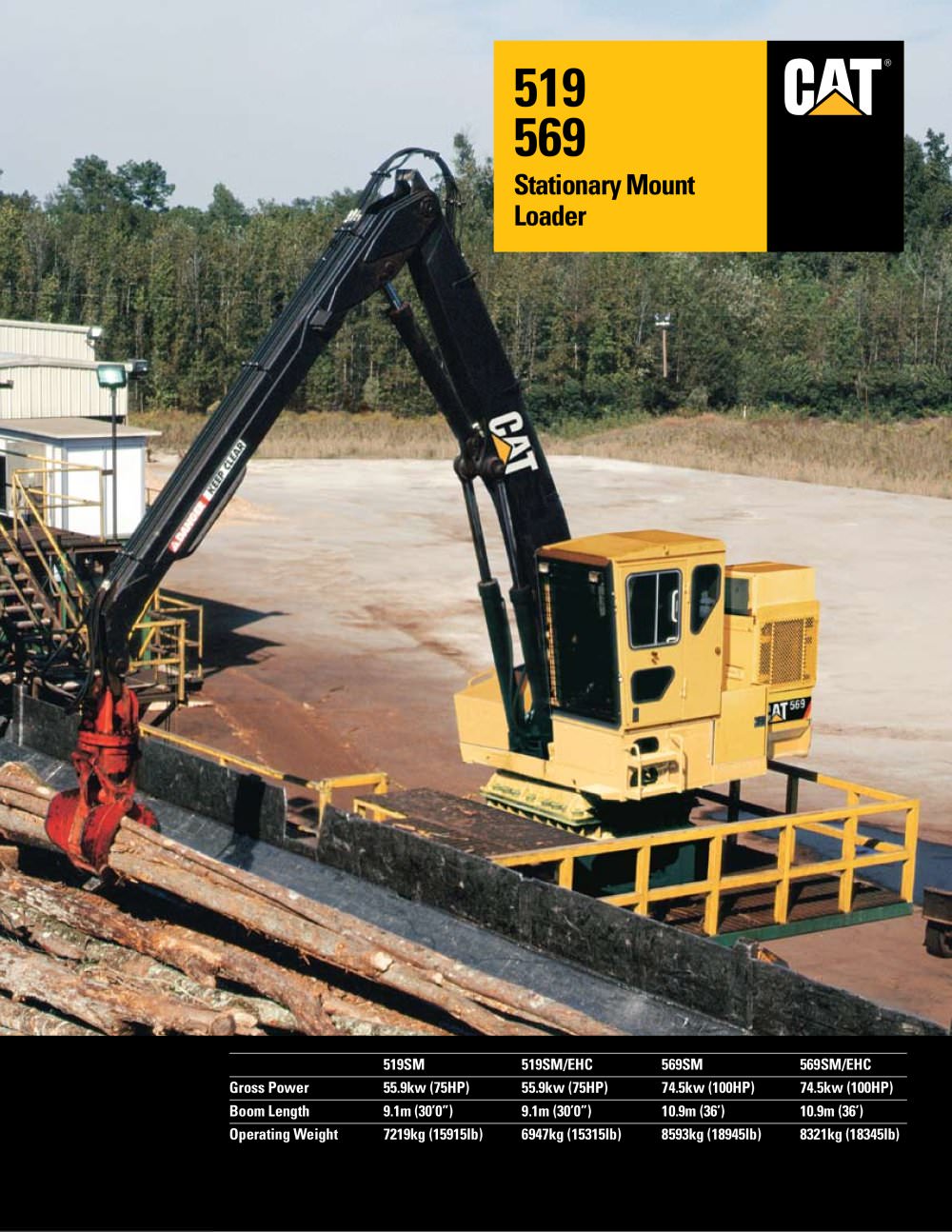

Caterpillar® 519 and 569 Stationary Mount Loader Caterpillar has a full line of stationary mount loaders for a wide range of mill yard applications. Four models are available with onboard or remote power. Operation Station On standard loaders with operator’s station, the hydraulic pilot joystick controls and rocker swing pedal are ergonomically designed for ease of operation and maximum loader control required for the high cycle millyard applications. Boom Length Options Heavy-duty boom options range in length from 7.6 m to 10.9m (25’ to 36’) for handling a variety of tree lengths. Enclosed Components...

Motor Options Electric motors range in horsepower from 75 to 100 hp and are totally enclosed and rated for severe duty. Power supply wiring packages provide for 440V/60Hz US or 575V/60Hz Canadian service. 3

Excellent visibility of the work area is provided through large tinted cab windows. Overhead visibility is maximized through the large, tinted Lexan skylight. Operator protection is afforded through the front guard. This swing-out guard is designed for quick and simple access to allow cleaning of the front window. Superior Visibility Designed for maximum visibility, operator comfort and safety. The operator station is designed with comfort in mind. The spacious cabs feature a large, fully adjustable suspension seat with lumbar support. Fold-up armrests are fully adjustable to allow adjustment...

7 Power Supply Mounting: Turntable Mount Remote Skid Mount Hydraulic System Pumps: Three (3) In-Line Gear Pumps Flows: GPM @ 1800 RPM Pressures: System PSI Swing PSI Swing Motor: Radial Piston Motor Swing Speed: Revolutions Per Minute Rotation: Continuous Non-Continuous Limited Rotation Controls: Pilot Joystick Electro Hydraulic (EHC) Filtration: Single Element Return (3 mic) Two Dual Element Return (3 mic) Bypass Indicators Oil Reservoir Heater Serviceability: Diagnostic Nipples @ Pump Cylinders: (Bore X Rod) Main Stick Live Heel Booms 7.6 m (25’) Knuckleboom 8.2 m (27’) Knuckleboom 9.1 m (30’)...

Basic Dimensions 624.8 cm (20’ 6”) Max. 243.8 cm (96") Tailswing 288.3 cm (9' 5.5") 262.9 cm (8' 7.5") 100.3 cm (3' 3.5") 77.5 cm (30.5") 76.2 cm (30") OPTIONAL 76.2 cm (30”) Sub-frame Riser 519 SM NOTE: Overall Height dimension to 8.2 m (27’) boom articulation point is taken with main boom cylinder fully extended. Add 76.2 cm (30”) to this dimension for 9.1 m (30’) knuckle boom. Loader Frame Mounting Bolt Locknut Washer Shock Pad Shock Pad Base Plate 5.1 cm (2.0") (Min.) 6.3 cm (2.5") (Min.) 25.4 cm (10") Min. 17.8 cm (7") Min. Steel Platform (Supplied by customer) 569 SM NOTE: Overall Height...
