Skid Steer Loaders - 1

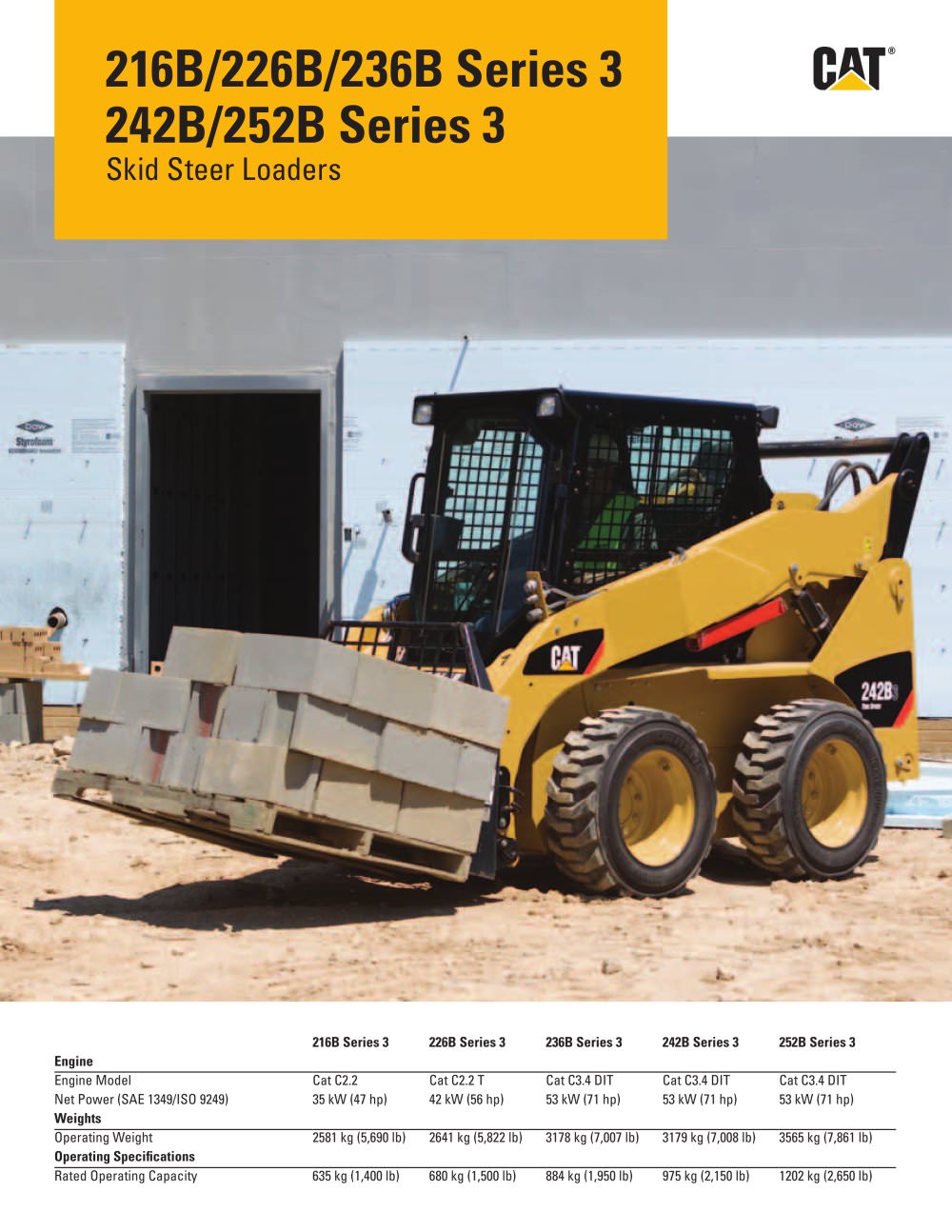

216B/226B/236B Series 3 242B/252B Series 3 Skid Steer Loaders 216B Series 3 226B Series 3 236B Series 3 242B Series 3 252B Series 3 Engine Engine Model Cat C2.2 Cat C2.2 T Cat C3.4 DIT Cat C3.4 DIT Cat C3.4 DIT Net Power (SAE 1349/ISO 9249) 35 kW (47 hp) 42 kW (56 hp) 53 kW (71 hp) 53 kW (71 hp) 53 kW (71 hp) Weights Operating Weight 2581 kg (5,690 lb) 2641 kg (5,822 lb) 3178 kg (7,007 lb) 3179 kg (7,008 lb) 3565 kg (7,861 lb) Operating Specifications Rated Operating Capacity 635 kg (1,400 lb) 680 kg (1,500 lb) 884 kg (1,950 lb) 975 kg (2,150 lb) 1202 kg (2,650 lb)

Open the catalog to page 1
Skid Steer Loaders - 3

3 Operator Station Superior comfort to keep you productive throughout the work day. All Day Comfort Comfort and ease of operation have been designed into every aspect of the operator station. The wide, spacious interior and uncluttered floor provide a comfortable work environment with excellent head, shoulder and leg room to keep productivity high and fatigue low. The adjustable seat and low effort controls keep the operator comfortable throughout the work day. Low Effort Joystick Controls Ergonomic, pilot hydraulic controls deliver precise control with minimal effort. The right joystick...

Open the catalog to page 3
Skid Steer Loaders - 4

4 Hydraulics Exceptional lift, breakout and power to meet your needs. High Performance Hydraulic System Maximum power and reliability are built into the machine’s hydraulic system. In addition to providing power to the wheels, this system also provides the loader lift and tilt functions, powers the auxiliary circuit to drive work tools and drives the engine cooling fan. The hydraulic pumps are driven directly off the engine for maximum hydraulic performance and reliability – no belts are used. The hydraulic system also features: • Standard auxiliary hydraulics to power work tools that are...

Open the catalog to page 4
Skid Steer Loaders - 5

5 Power Train Aggressive performance with fuel efficiency. Cat Engine The high performance power train provides high engine horsepower and torque. The B-Series 3 machines feature rugged, reliable Cat engines that meet U.S. EPA Tier 4 Interim and EU Stage IIIA emissions requirements. Hand and Foot Throttles Hand and foot throttles allow the operator to match engine speed to the task. The hand throttle is ideal for jobs requiring constant engine speed such as cold planing, trenching or snow blowing. The foot throttle lets the operator vary engine speed and minimize fuel consumption for other...

Open the catalog to page 5
Skid Steer Loaders - 6

6 Work Tools Do more jobs with one machine with Cat Work Tools. The Right Tool for the Job Get the most out of your machine with the comprehensive line of Cat Work Tools. Designed and built for optimum performance and durability, these tools deliver high productivity in a variety of applications to maximize the versatility and flexibility of the Cat Skid Steer Loader: • Augers • Backhoes • Blades (angle, dozer) • Buckets (general purpose, high capacity, dirt, utility, light material, multi purpose, industrial grapple, utility grapple) • Brooms (angle, pickup, utility) • Brushcutters • Cold...

Open the catalog to page 6
Skid Steer Loaders - 7

7 Serviceability Simplified service and maintenance save you time and money. Easy Service Convenient service features make maintenance easy, reducing your downtime: • Industry exclusive tilt-up cooling package provides superior access to service points and coolers. • Rear door opens 90 degrees for easy access to both sides of the engine. • Cab tilts rearward for easy access to all hydraulic pumps, motors, valves, lines and hydraulic tank. • Daily maintenance points are easily accessible. • Electrical wiring is color coded and numbered for easy identification. • S·O·SSM oil sampling valve is...

Open the catalog to page 7
Skid Steer Loaders - 8

8 B-Series 3 Skid Steer Loaders Specifications Engine Engine Model 216B Series 3 Cat C2.2 226B Series 3 Cat C2.2 T 236B/242B/252B Series 3 Cat C3.4 DIT Net Power (SAE 1340/ISO 9249) 216B Series 3 35 kW 47 hp 226B Series 3 42 kW 56 hp 236B/242B/252B Series 3 53 kW 71 hp Gross Power (SAE J1995) 216B Series 3 38 kW 51 hp 226B Series 3 45.5 kW 61 hp 236B/242B/252B Series 3 55 kW 74 hp Displacement 216B/226B Series 3 2.2 L 134 in3 236B/242B/252B Series 3 3.3 L 201 in3 Stroke 216B/226B Series 3 100 mm 3.9 in 236B/242B/252B Series 3 120 mm 4.7 in Bore 216B/226B Series 3 84 mm 3.3 in 236B/242B/252B...

Open the catalog to page 8
Skid Steer Loaders - 9

9 Cab ROPS SAE J1040 MAY94, ISO 3471:1994 FOPS SAE J/ISO 3449 APR98 Level I, ISO 3449:1992 Level I FOPS Level II SAE J/ISO 3449 APR98 Level II, ISO 3449:1992 Level II (optional) Power Train Travel Speed (Forward or Reverse) 216B/226B Series 3 12.7 km/h 7.9 mph 236B Series 3 12.1 km/h 7.5 mph 242B Series 3 12.4 km/h 7.7 mph 252B Series 3 11.9 km/h 7.4 mph Travel Speed (Forward or Reverse) – 2 Speed Option 236B Series 3 18.1 km/h 11.2 mph 242B Series 3 18.4 km/h 11.4 mph 252B Series 3 17.8 km/h 11.1 mph Service Re ll Capacities Chain Box, each side 216B/226B/242B Series 3 6 L 1.6 gal 236B...

Open the catalog to page 9
Skid Steer Loaders - 12

12 B-Series 3 Skid Steer Loaders Standard Equipment ELECTRICAL 12 volt Electrical System 65 ampere Alternator (216B Series 3) 85 ampere Alternator (226B Series 3) 90 ampere Alternator (236B/242B/252B Series 3) Automatic Glow Plug Activation Heavy Duty Battery, 880 CCA (standard on the 236B/242B/252B Series 3) Ignition Key Start/Stop Switch Lights: Gauge backlighting, two rear tail lights, two adjustable front and rear halogen lights, dome light. OPERATOR ENVIRONMENT Gauges: Fuel level, hour meter Operator Warning System Indicators: Air filter restriction, alternator output, armrest...

Open the catalog to page 12
Skid Steer Loaders - 13

Variable Speed Demand Fan (not available in all regions) Counterweight Beacon, Rotating Engine Block Heater, 120V or 240V Heavy Duty Battery, 880 CCA (optional on the 216B/226B Series 3) Oil, Hydraulic, Cold Operation Optional equipment may vary. Consult your Cat dealer for details 13 B-Series 3 Skid Steer Loaders Optional Equipment

Open the catalog to page 13
Skid Steer Loaders - 16

B-Series 3 Skid Steer Loaders 20 For more complete information on Cat products, dealer services, and industry solutions, visit us on the web at www.cat.com © 2010 Caterpillar Inc. All rights reserved Materials and specifications are subject to change without notice. Featured machines in photos may include additional equipment. See your Cat dealer for available options. CAT, CATERPILLAR, SAFETY.CAT.COM, their respective logos, “Caterpillar Yellow” and the “Power Edge” trade dress, as well as corporate and product identity used herein, are trademarks of Caterpillar and may not be used without...
