Backhoe Loader
20Pages

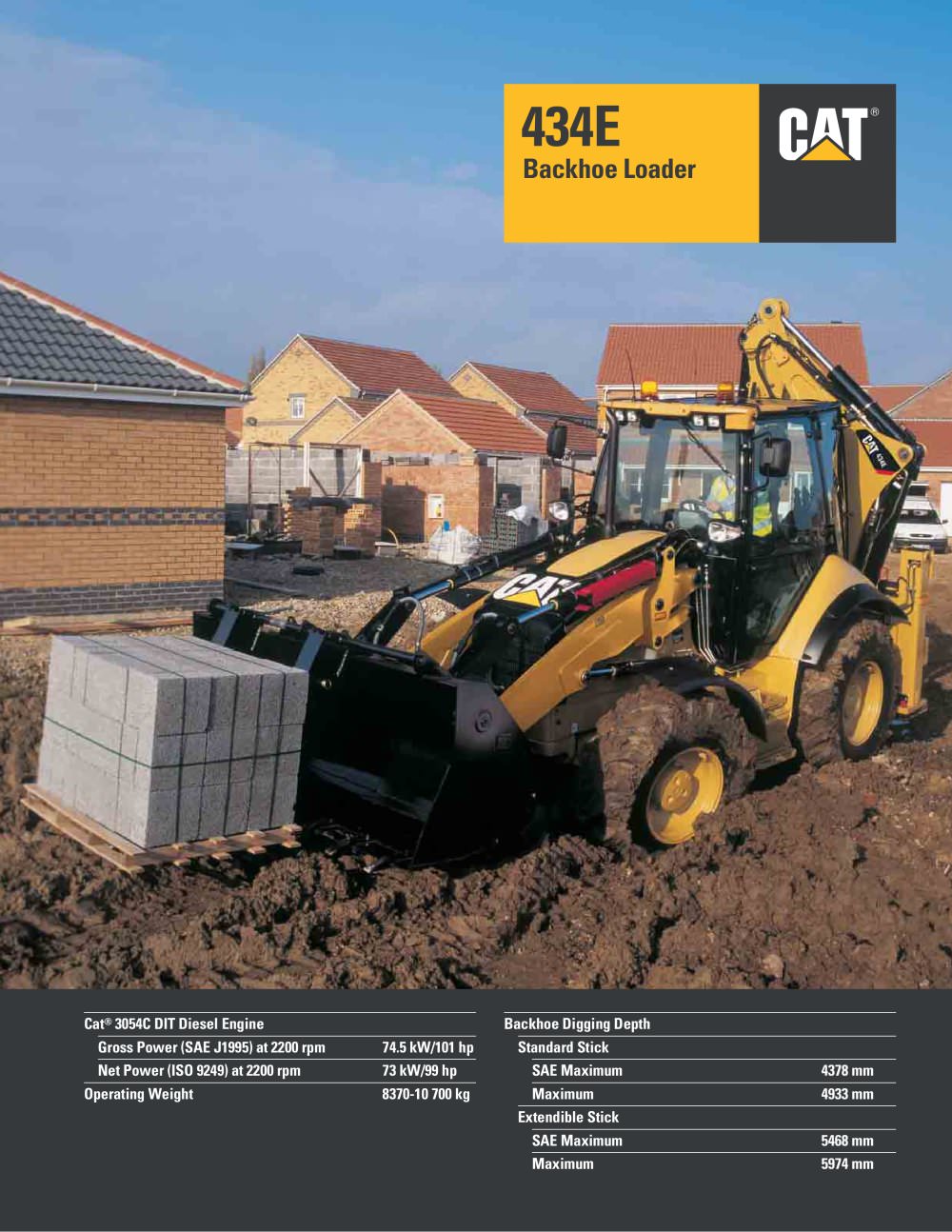

Cat > ή 3054C DIT Diesel Engine Backhoe Digging Depth Gross Power (SAE J1995) at 2200 rpm74.5 kW/101 hp Standard Stick Net Power (ISO 9249) at 2200 rpm73 kW/99 hp SAE Maximum4378 mm Operating Weight 8370-10 700 kg Maximum4933 mm Extendible Stick SAE Maximum5468 mm Maximum5974 mm >

Equal Size Tires Operator Station Backhoe Versatility and Performance The 434E is equipped with Equal SizeTires giving excellent performance insoft underfoot conditionscommon to many worksites, for exampleagriculture.EST offers many advantages over non- EST BHL֒s. The E-Series Cab offers an improved operator environment, with increased visibility, ergonomics and comfort. The pod-mounted joystick controls offer increased comfort, control and versatility. Excavator style backhoe reaches over obstacles, for easier, faster truck loading in confined spaces Industry leading 205High Rotation...

Powertrain Load Sensing, Flow Sharing Hydraulic System Pilot Hydraulic Joystick Controls The 434E now has 40 kph roadingspeed as standard. The proven Cat 3054C engine delivers 98 hp net. Coupled with the Autoshift transmission, it provides all the performance needed. Excavator style Pilot Hydraulic JoystickControls are fitted as standard to both the Loader and Hoe controls on all 434E Backhoe Loaders. The low effort controls are easy to use, reduce operator fatigue, and greatly improve visibility to the rear. Benefits include: Flow-sharing hydraulic valves give improved implement control...

Electro-Deposition Coating Your 434E has been protected by an undercoat of electro-deposited (E-Coat) primer, which completely seals each metallic component and offers a superlative degree of protection from damage and corrosion. Coupled with the high solids polyurethane top coat, your 434E will stay looking good for longer, ensuring optimum resale value. > 187 Litre Fuel Tank Caterpillar Immobilizer System Improved Weight Distribution Pattern Changer Responding to customers needs, the 434E is designed with a large 187 litre fuel tank. Along with the efficient Cat engine and hydraulic...

Increased Loader Performance Tire Options Improved Flotation The 434E has excellent lift height, which coupled with the larger bucket and powerful breakout forces, enable the 434E to perform high productivity loading duties, such as hopper charging, bulk material transfer, grading and loading. The 434E is available with either 24" or 28" tires, in bias or radial ply variants. This allows the correct choice of tire to suit any application or budget. The 434E can operate in work areas that push the limits of standard unequal size tire machines. The high flotation and lower ground pressure...

Hydraulic Quick Coupler Option Return to Dig The 434E is available with an optional quick coupler, allowing greater loader versatility with a wide range of Caterpillar work tools. Your 434E is equipped with a standard Return to Dig system. This system reduces loading cycle times by bringing the loader bucket back to the dig position with an easy pull of the lever. By the time the loader bucket is at ground level, the bucket is angled correctly for the next load or cut. Ride Control > Joystick Control The loader joystick is ergonomically placed for operator comfort, and controls the...

Optional Auto-Shift Transmission Work faster with the optional Auto- Shift transmission. The Auto-Shift transmission provides automatic shifting between five forward and three reverse gears. There is no floor mounted shift lever, so the operator has more floor space and better access through the right hand door. Air Filter A dry type axial seal air cleaner with automatic integrated dust ejection provides more efficient pre-separation. Rolled air filters allow consistentlinear air flow withreduced installation space. Axles and Brakes > The Caterpillar rear axle is an enclosed design with a...

The 434E Cab is Designed with Today's Operator in Mind The E-Series cab is designed to provide maximum comfort, ease of operation, and overall style for todays demanding operator. The design incorporates curved glass for improved interior space and visibility, and the cab is widened for better performance when turning from one mode of operation to the other. Cab comfort is enhanced with the first-class Cat air suspension seat designed to reduce fatigue. Excellentergonomics ensure that all controls are within easy reach ofthe operator, and tinted glass is standard in all cabs.Other features...

Cab Mounts Work Lights Cab Air Filter The cab shell is attached to the frame with resilient mounts, reducing vibration and sound. Cat Air Suspension Seat The 434E has adjustable front and rear Work Lights. This allows the operator to direct the light wherever needed, providing maximum illumination to the work area. The 434E has an easy access cab air filter, situated within the RH rear fender. The cab air intake is positioned on the central post, high up to minimize dust intake into the air filter. Cab Options The 434E is available in 2 cab options, providing the best choices to suit...

Caterpillar Cushion Swing System Increased Performance The 434E is equipped with Cat Cushion Swing System, which enables very fast trenching by damping the boom oscillation down when returning to trench with the hoe. The boom and stick have redesigned geometry and higher stick forces, which equates to improved digging performance. Slider Frame and Swing System The 434E is designed to make necessary maintenance easy to perform. The E-Series cast slider frame has exterior lock clamps, with no backhoe disassembly needed when servicing. The Swing Frame/Boom Foot pins have replaceable bushings...

Backhoe Buckets Cat offers a huge variety of hoe buckets to meet your requirements, including: Standard Duty Bucket. Used in easy to penetrate, low impact, moderately abrasive soils. Heavy Duty Bucket. Used for digging fragmented rock, frozen ground and highly abrasive materials. Hoe Durability Extreme Service Bucket. Used in highly abrasive, high impact soil. Caterpillar backhoe buckets offer superior durability with the following features: High Capacity Bucket. Same durable construction as the HD bucket, but longer tip radius provides increased fill capacity. Thick cutting edges. DRS...
