Asphalt Paver
12Pages

{{requestButtons}}

Catalog excerpts

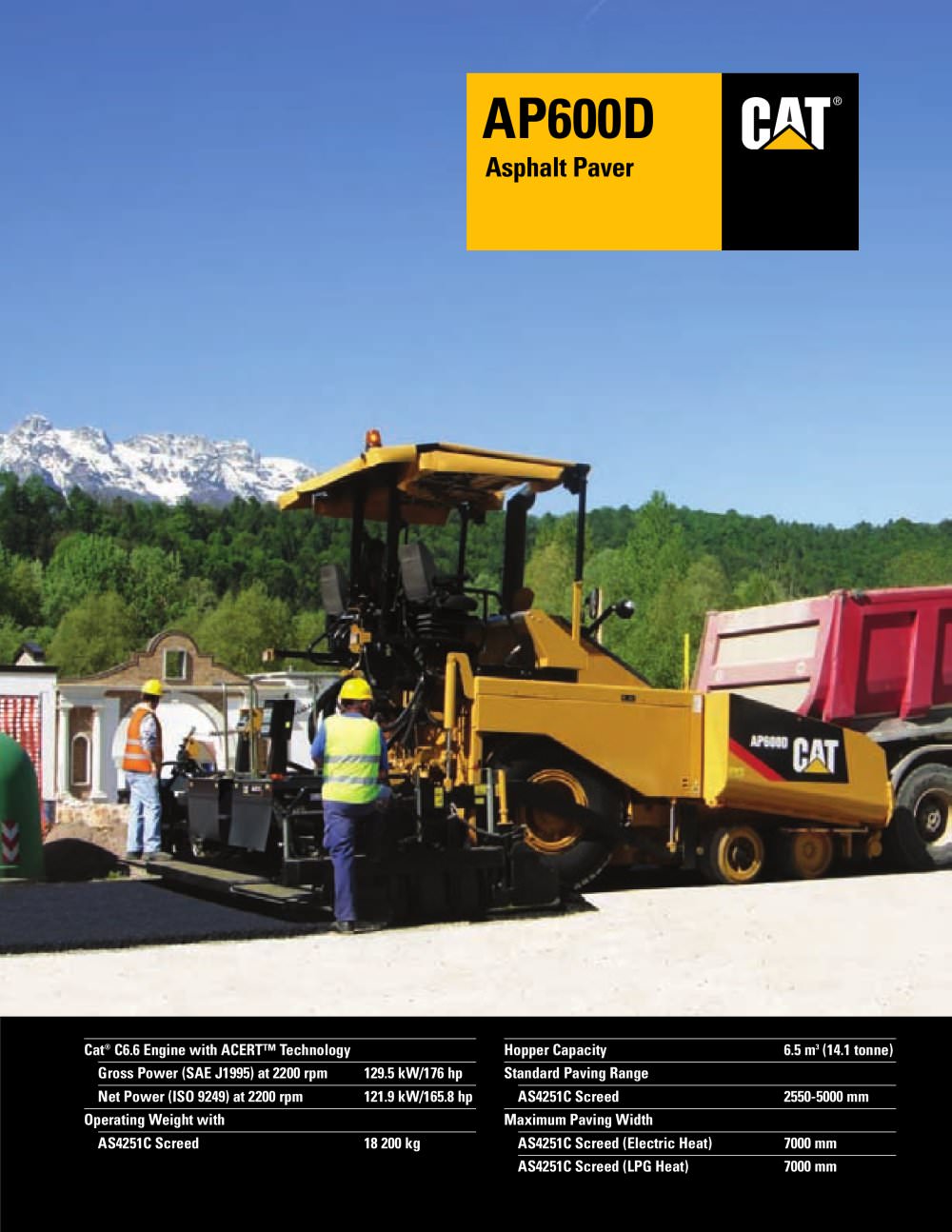

Asphalt Paver - 1

Hopper Capacity 6.5 m3 (14.1 tonne) Standard Paving Range AS4251C Screed 2550-5000 mm Maximum Paving Width AS4251C Screed (Electric Heat) 7000 mm AS4251C Screed (LPG Heat) 7000 mm Cat® C6.6 Engine with ACERT™ Technology Gross Power (SAE J1995) at 2200 rpm 129.5 kW/176 hp Net Power (ISO 9249) at 2200 rpm 121.9 kW/165.8 hp Operating Weight with AS4251C Screed 18 200 kg ® AP600D Asphalt Paver

Open the catalog to page 1
Asphalt Paver - 2

2 High Performance and Operator Comfort Make the AP600D the Perfect Choice The AP600D sets the standard in performance, operator comfort, ease of use, ride quality and reliability. C6.6 Engine with ACERT™ Technology ACERT Technology works at the point of combustion to optimize engine performance. ACERT Technology incorporates an electronic controller to precisely deliver multiple injections of fuel. These multiple injections are combined with a refined air management system in order to generate fewer emissions and optimize fuel combustion while meeting European EU Stage IIIA engine emission...

Open the catalog to page 2
Asphalt Paver - 3

3 Independent Material Handling System The material handling system provides precise mix delivery through the most proven system in the industry. The independent operation of the augers and conveyors reduces component wear and minimizes the potential for mix segregation. Reversible augers and conveyors assist the crew by reducing handwork and clean-up. The reversible auger feature pulls asphalt back into the main screed area when retracting the extenders while the reversible conveyor feature pulls asphalt back into the tunnels, resulting in limited spillage. pg. 7 Maneuverability...

Open the catalog to page 3
Asphalt Paver - 4

4 Cat® C6.6 Engine with ACERT Technology ACERT Technology manages combustion using a combination of air management, precise fuel delivery and careful timing in order to lower emissions and meet European EU Stage IIIA engine emissions requirements. High Capacity Cooling System and Optional Ventilation System The deck-mounted cooling system provides a cool environment by exhausting hot air toward the hopper, away from operators and ground personnel. The ventilation system promotes a significant reduction of asphalt fumes for operator and crew comfort. High Ambient Temperature Cooling System....

Open the catalog to page 4
Asphalt Paver - 5

5 Advisor Monitoring System Simplifies Operation The sliding control console includes the Advisor Display that provides many unique features to assist the operator. Advisor Monitoring System (AMS). The LCD Advisor provides access to a start-up checklist, operator preferences, engine and machine operating parameters and “Paving Calculator”. The AMS display also allows the operator to: n Calibrate the machine components n Set the automatic engine speed control n Monitor engine rpm’s and operating temperatures n Determine the required paving speed and tonnage requirements for a particular job...

Open the catalog to page 5
Asphalt Paver - 6

6 Wheel Undercarriage System The wheel undercarriage system provides excellent mobility and maneuverability along with a smooth ride for optimum performance. Excellent Mobility. The sharp turning radius and high propel speeds allow the paver to move quickly around the job site. Three Propel Modes. Pave, travel and maneuver modes provide good control and versatility. The new maneuver mode provides a 1.4 m turning radius for excellent maneuverability in tight quarters. Speed Control. A speed control dial located on the operating control console allows the operator to set a maximum propel...

Open the catalog to page 6
Asphalt Paver - 7

7 Independent Material Handling System Promotes Hands-Free Operation The material handling system promotes hands-free operation by providing features such as independent control of each auger and each conveyor. Precise Mix Delivery. The material delivery system provides precise mix delivery with minimal operator monitoring. The left and right conveyors in addition to the left and right augers are controlled independently. Outboard-Mounted Conveyor Drives. The conveyors have outboard-mounted motors, reducers and drive chains that maximize the tunnel area and reduce segregation. Independent...

Open the catalog to page 7
Asphalt Paver - 8

8 Industrial, Single-Phase A.C. Generator. The tractor-mounted generator provides 25 kW of power at 60 Hz for the electric screed heat and the auxiliary power panel. Circuit breaker protection, internal electronic voltage regulation and a dual bearing design provide reliability. Choices Available (Belt or Hydraulic Driven). The belt-driven generator provides full power with a variable frequency when the engine speed increases above 1275 rpm. The hydraulic-driven generator provides full power with a fixed frequency of 60 Hz when the engine speed increases above 1275 rpm. Optional Auxiliary...

Open the catalog to page 8
Asphalt Paver - 9

9 Advisor Monitoring System (AMS). The Advisor display lists diagnostic fault codes for machine functions making troubleshooting quick and easy. Manual Overrides. The hydraulic pump solenoids incorporate manual overrides to assist troubleshooting procedures. Large Access Doors and Panels. Preventative maintenance points can be accessed through the large swing open access doors and panels. Remote Lubrication Points. Lubrication points are grouped in order to make routine service quick and easy. Color-Coded and Numbered Electrical Wiring. Troubleshooting is efficient and simplified with the...

Open the catalog to page 9
Asphalt Paver - 10

10 AP600D Asphalt Paver specifications Engine Six cylinder Caterpillar C6.6 with ACERT Technology, turbocharged air-to-air after-cooled diesel engine. Meets European EU Stage IIIA engine emission regulations. Gross Power 2200 rpm SAE J1995 129.5 kW/176 hp Net Power 2200 rpm ISO 9249 121.9 kW/165.8 hp EEC 80/1269 121.9 kW/165.8 hp Bore 105 mm Stroke 127 mm Displacement 6.6 liters n All engine horsepowers are metric including front cover. n Net power ratings are tested at the reference conditions for the specified standard. n Net power advertised is the power available at the flywheel when...

Open the catalog to page 10
Asphalt Paver - 11

AP600D Asphalt Paver specifications 11 Dimensions B G J A I C F H K D mm A Tractor length with push roller 4950 B Length with push roller and screed 6160 C Transport width with screed end gates (hopper raised) 2720 Transport width without screed end gates (hopper raised) 2500 D Tractor operating width (hopper lowered) 3306 E Track gauge width 2200 F Operating height with canopy 3840 G Transport height with canopy, fumes stack and seat lowered 3019 mm H Truck dump height (at hoppers) 520 I Truck entry width (at hoppers) 3200 J Hopper length 1960 K Push roller height 533 L Clearance 260...

Open the catalog to page 11
