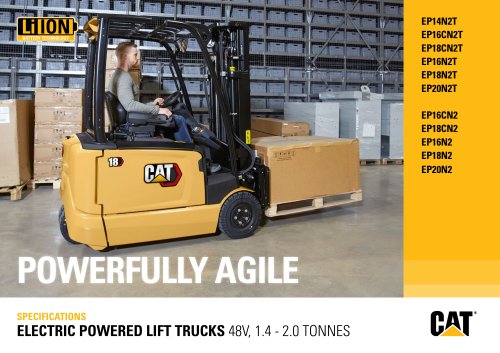

POWERFULLY AGILE SPECIFICATIONS ELECTRIC POWERED LIFT TRUCKS 48V, 1.4 - 2.0 TONNES

TUNED IN TO THE DRIVER THIS INTELLIGENT FORKLIFT’S ADVANCED FEATURES MAKE DRIVING AND LOAD HANDLING EASIER, STEADIER, SAFER AND MORE COMFORTABLE. DRIVERS FEEL THE MACHINE IS TOTALLY IN TUNE WITH THEM, SO THEY ARE HAPPY, CONFIDENT AND HIGHLY PRODUCTIVE. 360° steering option gives greater agility in turning. This allows the truck to turn and move in the opposite direction (180°) without stopping, and avoids destabilising the load (3 wheel model). Responsive Drive System 2 (RDS2) reacts instantly to changes in the speed of pedal and hydraulic control movement. It means all actions are smoothly controlled,...

• Efficient motors with high RPM range give better precision in acceleration control, create more torque at low speeds and reduce energy consumption. • Fully electronic magnetic brakes require less servicing and offer greater energy efficiency. • Robust construction and sealed components reduce maintenance needs. • Durable hose and hydraulic cylinder sealing specification withstands high temperature range, weathering and physical wear. • Fast battery compartment access speeds up servicing and exchanges. • Easy-to-read multi-function colour display encourages correct use and maintenance of truck....

STANDARD EQUIPMENT AND OPTIONS 3 WHEEL 48V GENERAL 3 and 4 wheel chassis, 48 volts, front wheel drive Operator-selectable economy or high performance modes ECO/PRO Multifunctional colour display (hour meter, BDI etc.) Lift tilt interlock and hydraulic and drive interlock / PDS Tiltable steering column Fully electric brakes Battery compartment side door and opening battery hood cover SST (Seat Switch Timeout: all functions are disabled – truck enters ‘stop mode’ and park brake is automatically applied) Basic overhead guard Trucktool set-up and diagnostics Dual joysticks Palm Steering Rapid sideways...

ELECTRIC LED working lights, 2 front and 1 rear Automatic reversing light Automatic light switch Amber strobe light Road light kit Electronic smart reversing alarm ‘Blue point’ safety light, located rear and/or front Red line safety lights, located on the sides Pin code access 5V USB connector output 2 x 2.5A (max 4.4A) 240W, 12V power supply for accessories OHG AND CABIN Grammer MSG65 vinyl with seat belt switch Grammer MSG65 or MSG75 with options vinyl / cloth / heater / backrest extension / armrest (MSG65) Swivel seat Plexi roof cover Panel cabin: front screen with wiper + roof with crane...

This specification sheet provides details of the standard truck specification in accordance with VDI Guideline 2198. Ast = Working aisle width

This specification sheet provides details of the standard truck specification in accordance with VDI Guideline 2198. ELECTRIC POWERED LIFT TRUCKS 1.4 - 2.0 TONNES Ast = Wa + R + a Ast = Working aisle width

Mast Performance and Capacity h1 Height with mast lowered h2 Standard free lift h3 Lift height h4 Height with mast raised h5 Full free lift Q Lifting capacity, rated load c Load centre (distance) Capacities at various load centresSimplex - h3 = 3700mmCapacity (kg) 2500 2000 * Lower than overhead guard **CSM Battery Dimensions Load Centre (mm) * With battery exchange rollers

LI-ION BATTERIES TIME TO SWITCH? BATTERY TECHNOLOGY Lithium-ion (Li-ion) battery technology is available in the Cat® electric counterbalance and warehouse truck ranges. While lead-acid batteries remain a popular choice for our customers, and still have much to offer, they present various challenges which Li-ion can overcome. Perhaps the most noticeable change when switching to Li-ion is the use of opportunity charging. Instead of exchanging batteries between shifts, you can simply plug into a fast charger during short breaks and keep the same battery going 24/7. This, together with other efficiency,...
