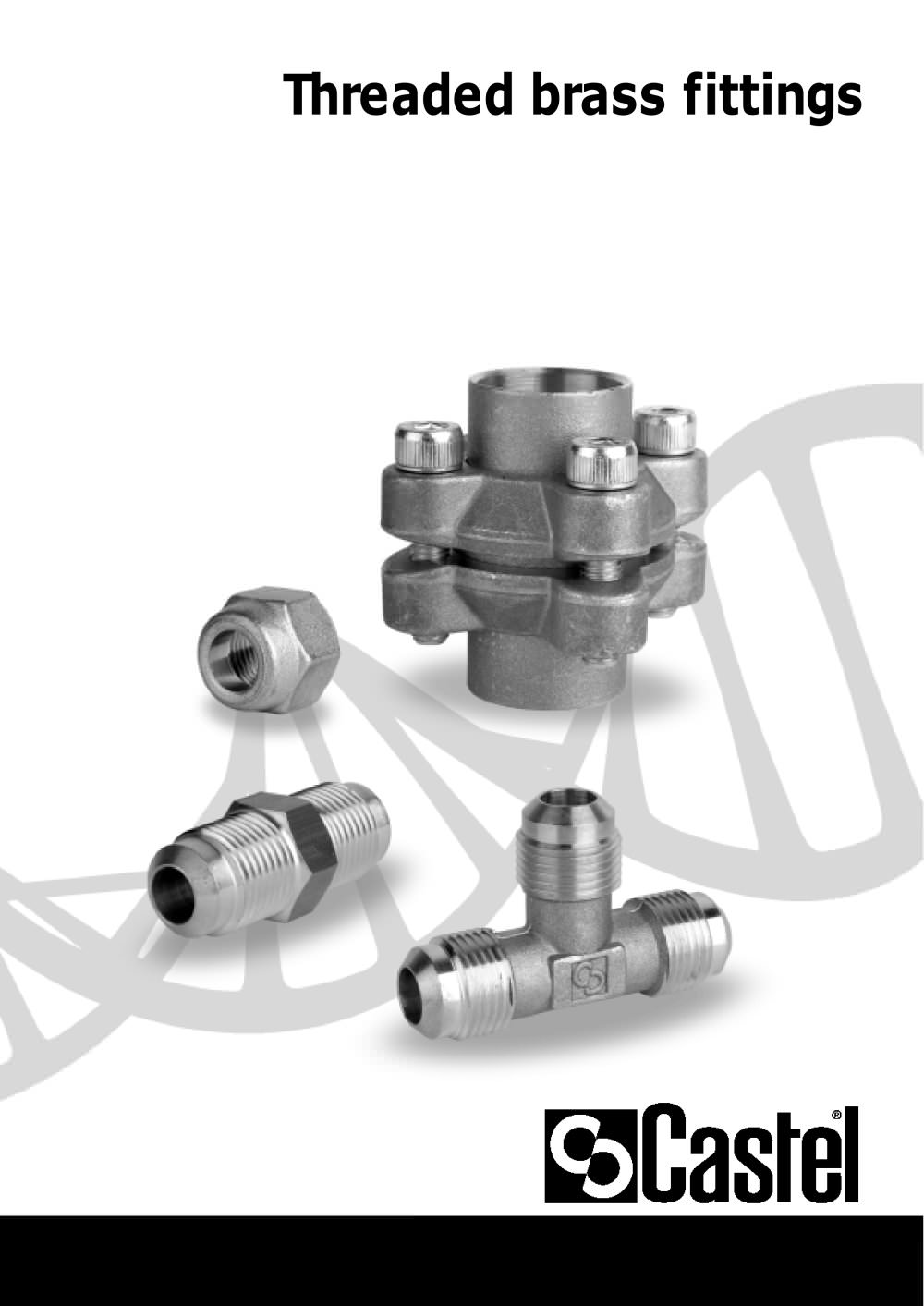

Threaded brass fittings

Product catalog summary

Specifications:
All straight fittings (series 7110 to 7170) and plugs (series 7510 to 7520) are machined from brass bar EN 12164 – CW 614N. Seal caps (series 7560) and gaskets (series 7580) are made from copper Cu – ETP UNI 5649. Flange joints are constructed with hot forged brass EN 12420 – CW 617N for bushes and flanges, and aramidic fibers for seal gaskets.

Applications:
The fittings are excluded from Directive 97/23/EC as they are piping components. They are designed for commercial refrigerating systems and civil/industrial conditioning plants using Group II refrigerant fluids.

Operation:
The sealing system between a male connection and nut series 7010, 7020, and 7030 requires a flared connection. The Flare-ODS adapter allows brazing instead of flaring, which is not accepted by some European laws. Copper gaskets (series 7580) ensure no leakage in male connection/adapter systems. Flange joints (series 7630) use brass bushes and a gasket to ensure sealing when screws are tightened.

Construction:
Nuts (series 7010 to 7050) and elbows, TEE, and cross fittings (series 7210 to 7410) are manufactured with hot forged brass EN 12420 – CW 617N.

General Characteristics:
Tables provide detailed specifications for various fittings, including dimensions, pressure ratings, and weight. Key data includes SAE Flare sizes, wrench torque ranges, and material specifications for different series of fittings.

Catalog excerpts

Threaded brass fittings

Open the catalog to page 1

132 All straight fittings, from series 7110 to series 7170, and all the plug, from series 7510 to series 7520, are machined by brass bar EN 12164 – CW 614N. Seal caps series 7560 and gaskets series 7580 are made with copper Cu – ETP UNI 5649. The main parts of the flanges joints are made with the following materials: – hot forged brass EN 12420 – CW 617N for bushes and flanges; – aramidic fibers for seal gasket of the flanges. APPLICATIONS All the fittings, shown in this chapter, are excluded from the scope of Directive 97/23/EC, as specified in the Guidelines 1/8 and 1/9, because they are piping...
