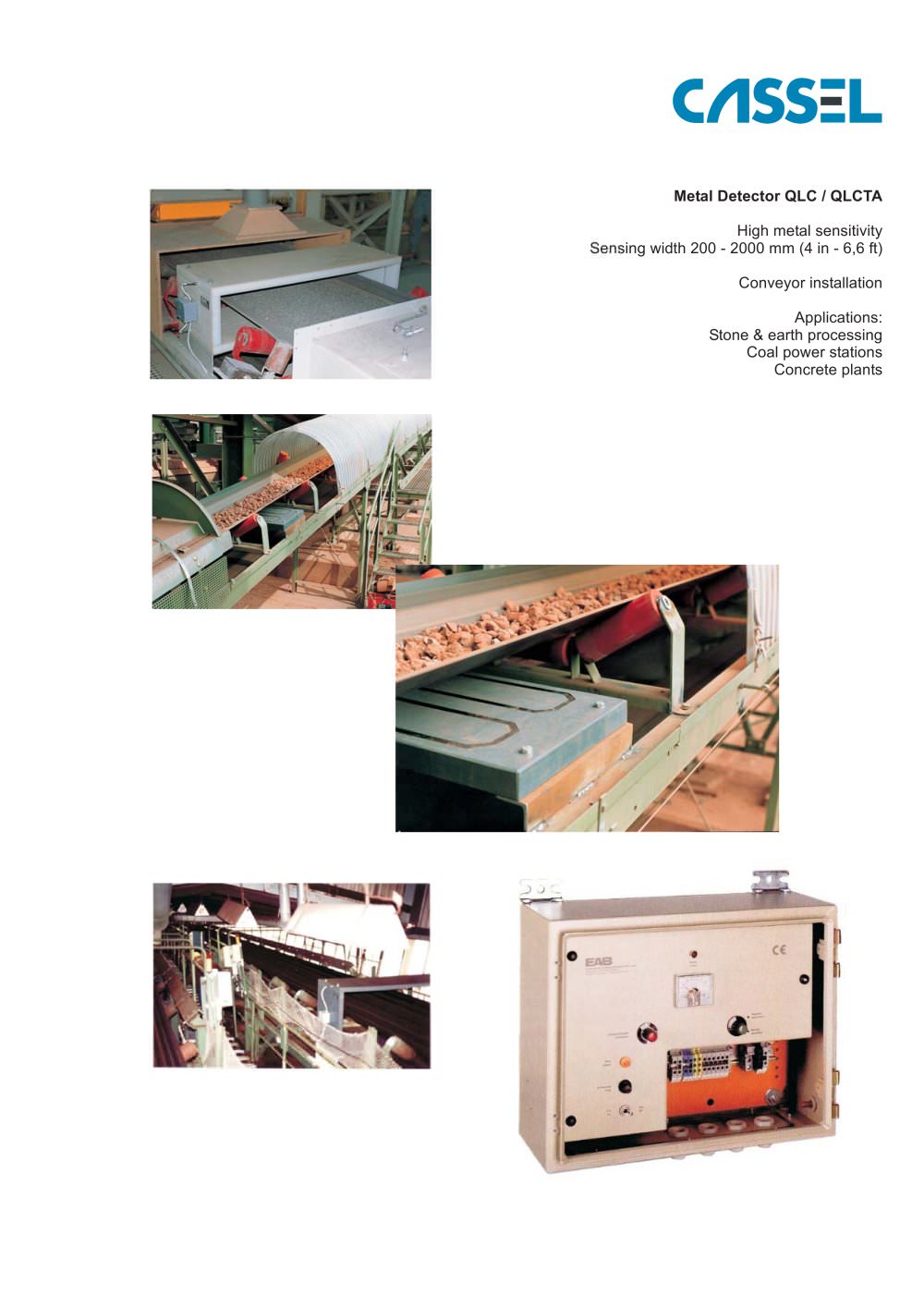

Overview: The Metal Detector QLC/QLCTA is designed for high metal sensitivity applications, suitable for conveyor installations with a sensing width ranging from 200 mm to 2000 mm. It is applicable in industries such as stone and earth processing, coal power stations, and concrete plants.

Technical Specifications:

Control Unit: QLC control unit operates on a power supply of 230 V at 50 Hz with a power input of 15 VA. It supports belt speeds from 0.3 to 6.0 m/s and functions within an ambient temperature range of -20°C to +55°C. The unit is designed with sheet steel, prepared for wall mounting, and weighs 9 kg.
Protection and Design: The device has a protective class of IP 55 and is colored RAL 7032 grey, treated by electrophoresis dip coating.
Inputs and Outputs: It includes 1 coaxial cable input for the sensor and outputs a metal alarm relay with 2 potential-free nc/no-contacts, with a switching capacity of 230V/6A.
Sensor Systems: Available in single-sensor and tandem-sensor systems.

Nominal Belt Weight and Sensor Sizes:

Various sensor sizes are available, with nominal belt weights ranging from 18 kg to 319 kg, depending on the width and length of the sensor.
Custom sizes can be requested to meet specific requirements.

Contact Information: Headquarters are located at Cassel Messtechnik GmbH, In der Dehne 10, 37127 Dransfeld, Germany. Contact via phone at ++49-5502-91150 or fax at ++49-5502-911532. More information can be found at www.cassel.de or by emailing [email protected].
