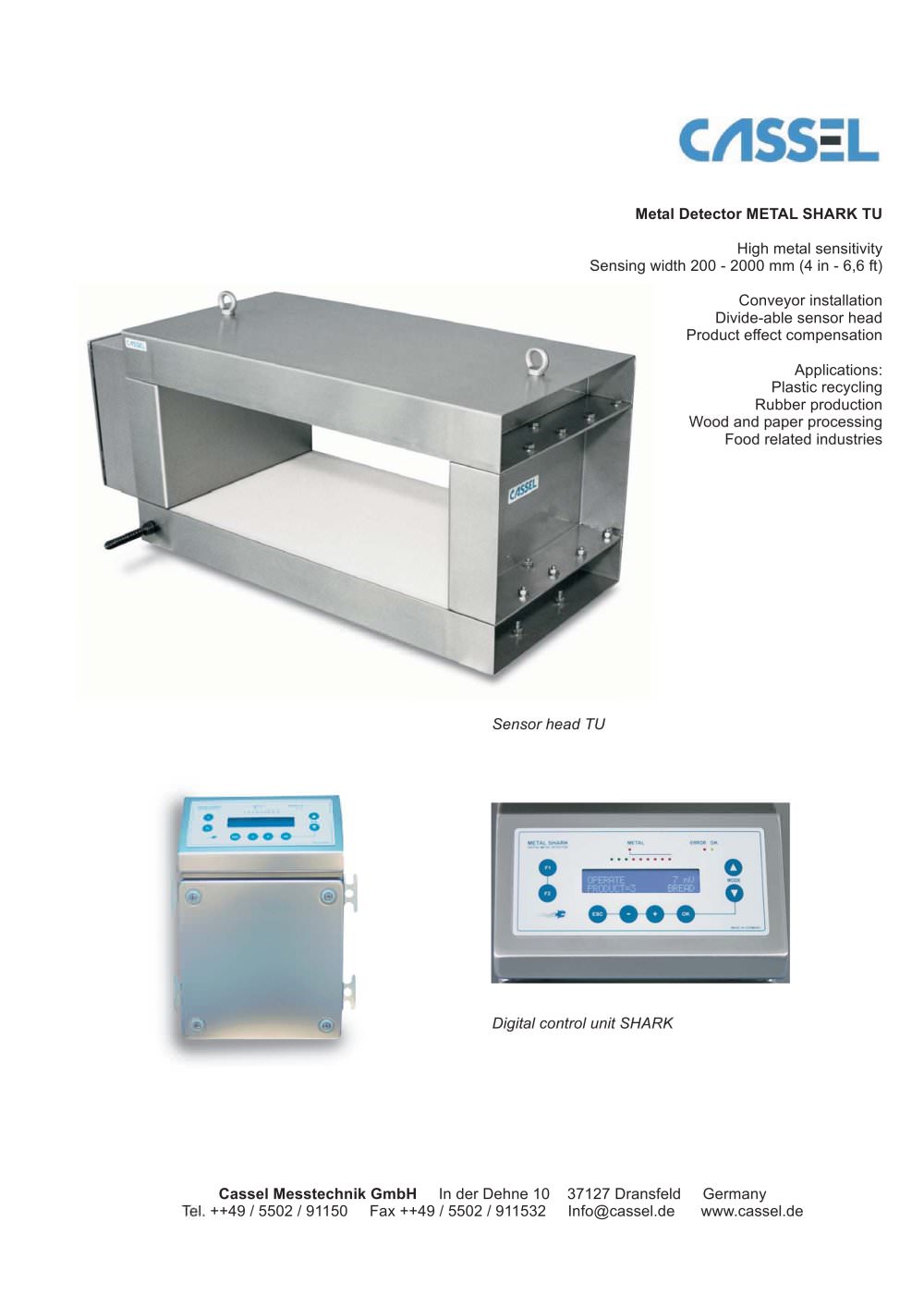

METAL SHARK TU Product Catalogue

Product catalog summary

Overview: The METAL SHARK TU is a high-sensitivity metal detector designed for various industrial applications, including plastic recycling, rubber production, wood and paper processing, and food-related industries. It features a divide-able sensor head and product effect compensation.

Specifications:

Sensing Width: 200 - 2000 mm (4 in - 6.6 ft)
Conveyor Installation: Suitable for horizontal and angled installations
Power Supply: 85-264 V / 50-60 Hz, 100 Watts
Temperature Range: Ambient: -10 to +50°C (15 to 120°F), Product: -20 to +80°C (0 to 180°F)
Protection Degree: Control unit IP65, Sensor IP67

Control and Connectivity:

Digital Control Unit: SHARK
Logging Interface: RS232 for HACCP data logging
Network Interface: RS485 (optional)
Remote Control Options: Product selector switch, belt control unit, alarm systems

Signals and Outputs:

Out Signals: Metal relay, metal alarm signal, fault relay, reject device drive
In Signals: Reject trigger, control air pressure, control reject success, remote reset and lock

Additional Features:
