Introduction

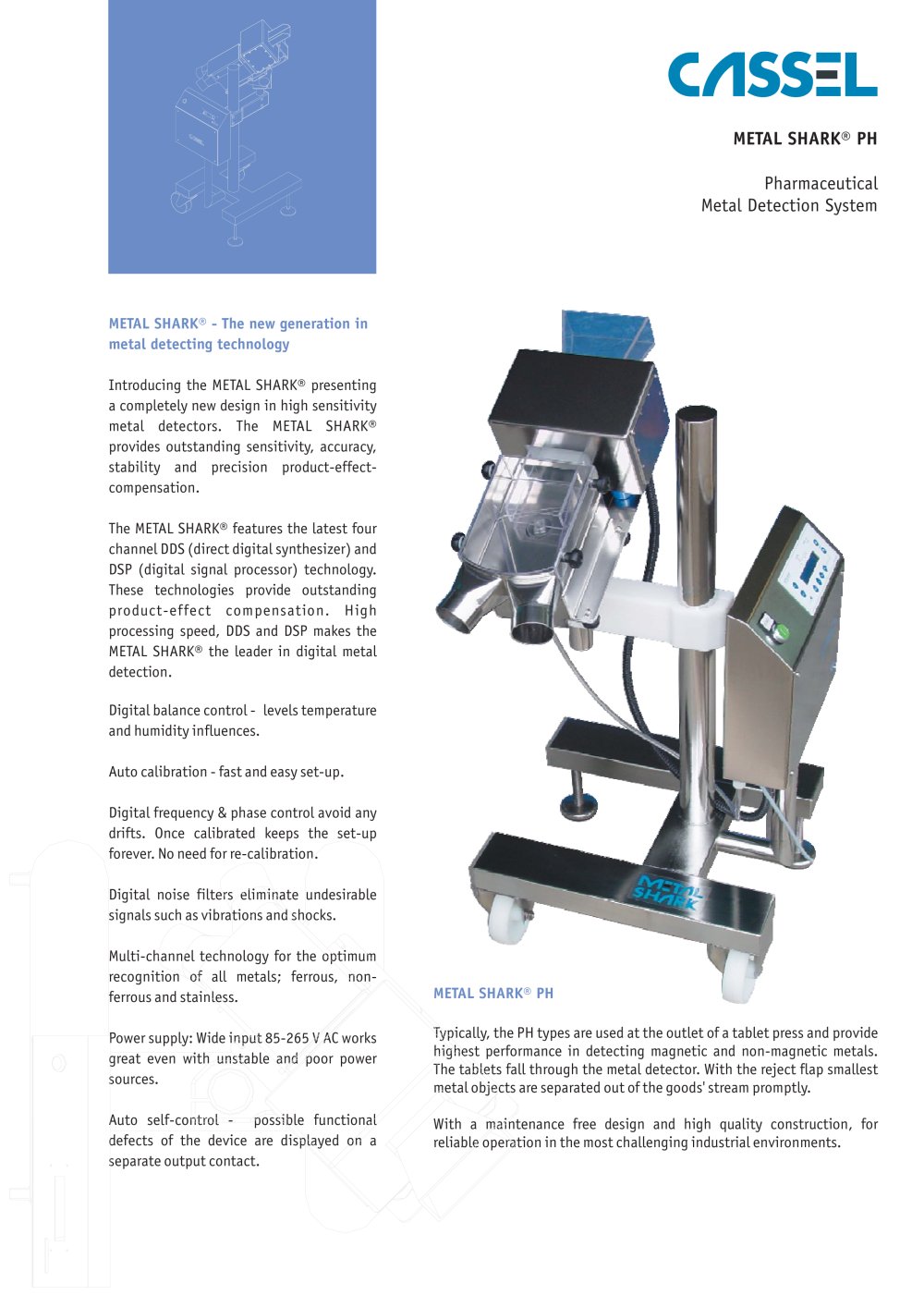

The METAL SHARK® PH is a high-performance metal detection system designed for use at the outlet of a tablet press in the pharmaceutical industry. It excels in detecting both magnetic and non-magnetic metals, ensuring the separation of even the smallest metal objects from the product stream.

Specifications and Features
The METAL SHARK® PH features a maintenance-free design and robust construction, suitable for challenging industrial environments. It incorporates advanced technologies such as four-channel DDS (Direct Digital Synthesizer) and DSP (Digital Signal Processor) for superior sensitivity, accuracy, and product-effect compensation. Key features include:

• Digital balance control to mitigate temperature and humidity effects.
• Auto calibration for quick setup, maintaining settings without the need for re-calibration.
• Digital frequency and phase control to prevent drifts.
• Digital noise filters to eliminate unwanted signals from vibrations and shocks.
• Multi-channel technology for detecting all metal types, including ferrous, non-ferrous, and stainless steel.
• Wide input power supply range (85-265 V AC) for operation under unstable power conditions.
• Auto self-control to display potential functional defects.

Performance and Validation
The system includes IQ, OQ, PQ qualification templates and performance validation prompts for regular testing. It supports a maximum throughput of 10,000 tablets per minute with various chute aperture sizes available. The reject system is solenoid-driven with a mirror-polished stainless steel diverter mechanism.

Design and Usability
The METAL SHARK® PH is designed for easy handling and quick demounting for cleaning. It features a stainless steel support stand that is mobile and height adjustable. The user-friendly software includes a product library for 125 different products and logs events such as metal detections and parameter changes, which can be exported via serial or ethernet link.

Contact Information
Headquarters: Cassel Messtechnik GmbH, In der Dehne 10, 37127 Dransfeld, Germany. Tel: ++49-5502-91150, Fax: ++49-5502-911532, Website: www.cassel.de, Email: [email protected]
