METAL SHARK OCTA Product Catalogue
Product catalog summary

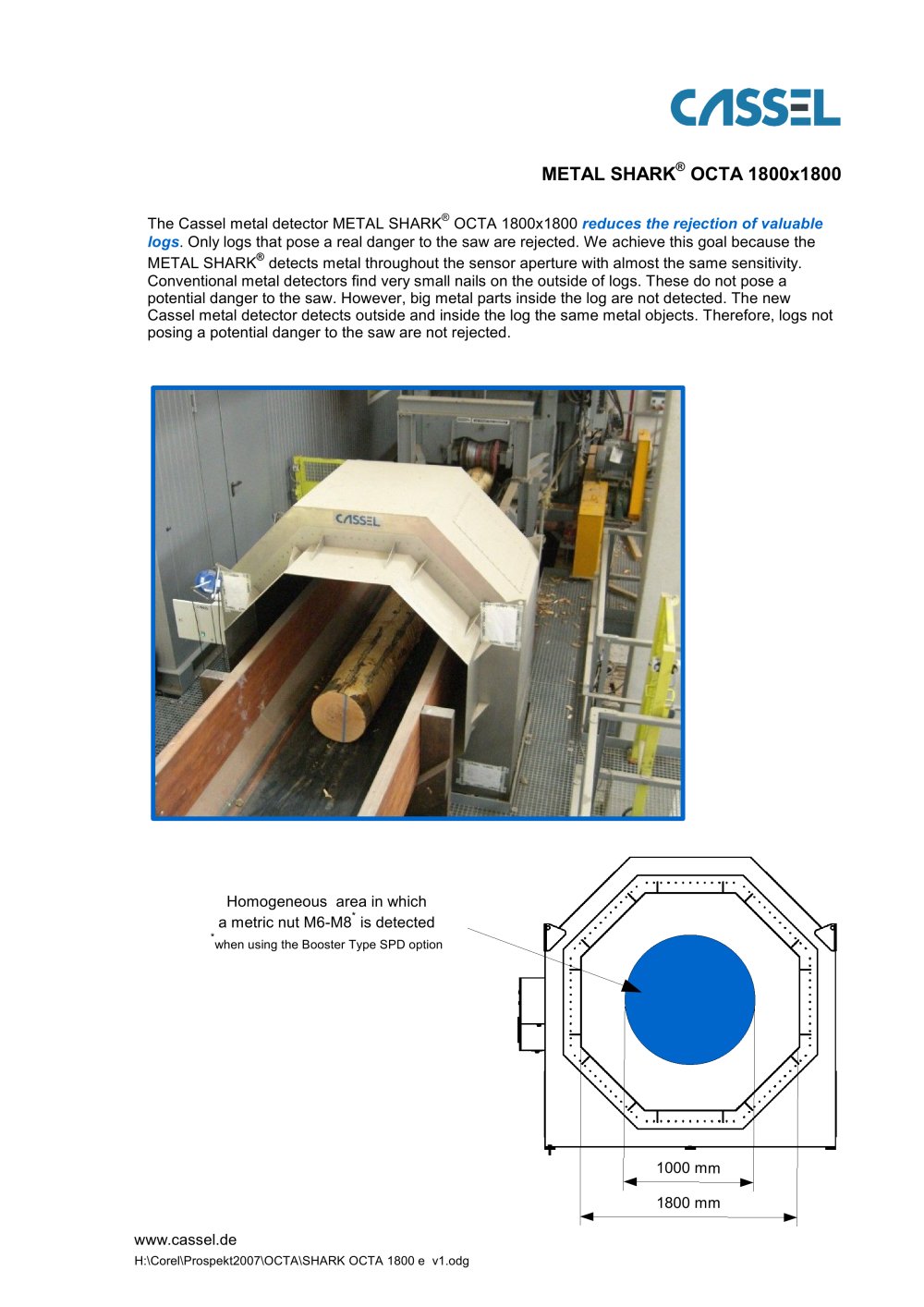

Overview: The Cassel METAL SHARK® OCTA 1800x1800 is a metal detector designed to minimize the rejection of valuable logs by detecting metal objects both inside and outside the logs with consistent sensitivity. This ensures only logs posing a real danger to saws are rejected.
Specifications:
- Model: METAL SHARK® OCTA
- Installation: Conveyor belt, adaptable to various angles
- Metal Free Zone: Minimum 4 meters
- Power Supply: 230 V / 50 Hz / 1 phase or 115 V / 60 Hz / 1 phase
- Power Consumption: 700 watts
- Temperature Range: Surrounding: -10 to +50°C (15 to 120°F), Product: -20 to +80°C (0 to 180°F)
- Protection Class: Control unit IP65, Sensor head IP54
- Material: Stainless steel housing, non-corrosive
Features:
- Digital filters to eliminate noise signals
- Product effect memory for 120 products
- Automatic teach assistant
- Adjustable delay and duration for reject devices
- Belt speed range: 25 - 4,000 mm/sec
- Inductive, balanced coils with multi-channel interpretation
- Newest digital technology with noise filter, balancing, and temperature drift control
- Constant automatic checks
Control and Handling:
- Keyboard and LC-Display
- LEDs for signal amplitude and operating status
- Password protection
Output and Input Signals:
- Metal alarm and error signals with potential-free change-over contact
- Reject synchronization and metal alarm quit inputs
- Optional interfaces: RS232, RS485, Ethernet
Options and Accessories:
- Booster type SPD for enhanced detection
- Xenon warning flash lamp
- Acoustic alarm
