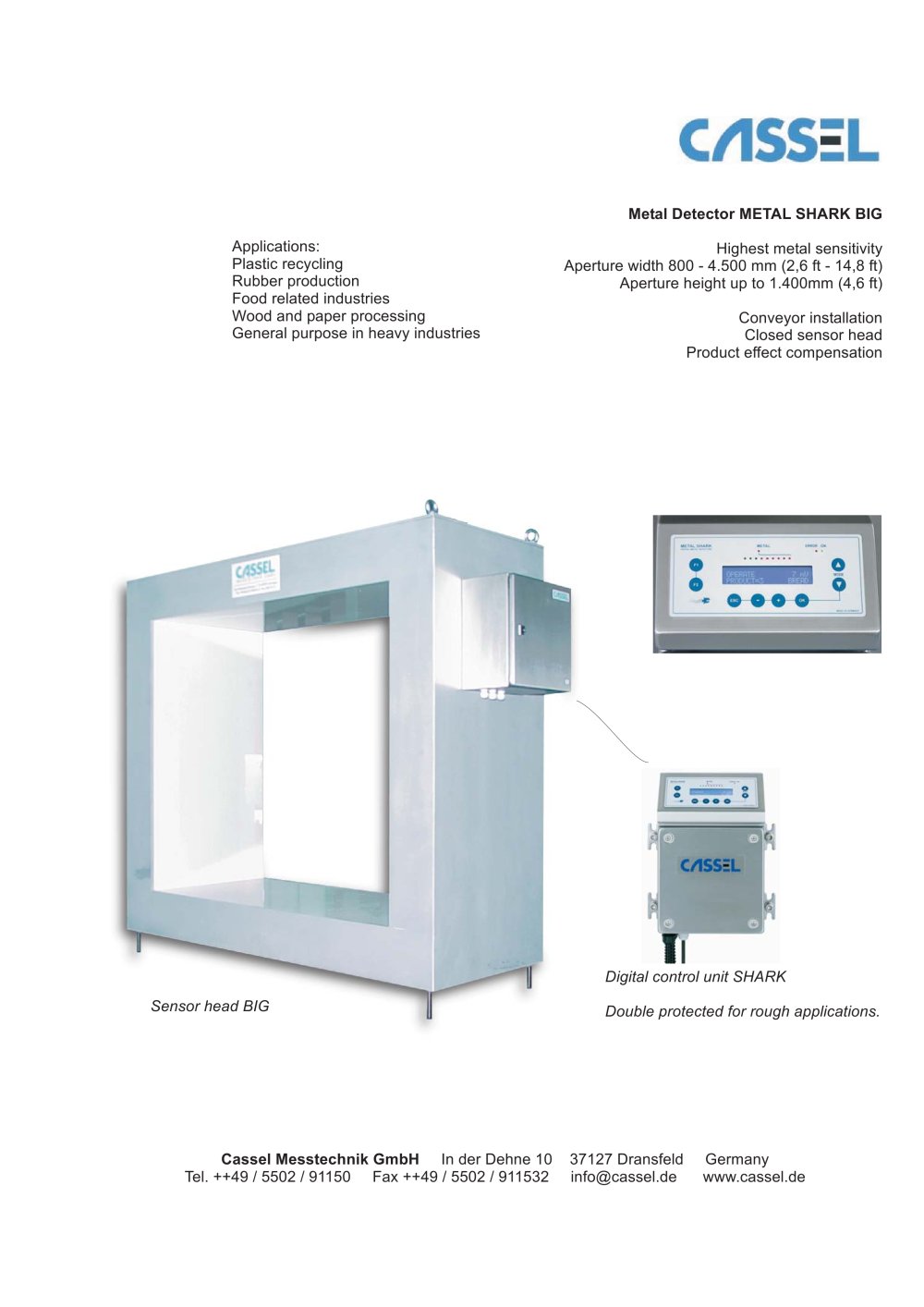

METAL SHARK BIG Product Catalogue

Product catalog summary

Overview: The METAL SHARK BIG is a high-sensitivity metal detector designed for various industrial applications, including plastic recycling, rubber production, food-related industries, and wood and paper processing. It features a robust design suitable for heavy industries.

Specifications:

Aperture Dimensions: Width ranges from 800 to 4,500 mm (2.6 ft to 14.8 ft), and height up to 1,400 mm (4.6 ft).
Installation: Conveyor installation with a closed sensor head.
Control Unit: Digital control unit SHARK with product effect compensation and double protection for rough applications.
Power Supply: 85-264 V / 50-60 Hz with a power input of 100 Watts.
Temperature Range: Ambient temperature from -10 to +50°C (15 to 120°F) and product temperature from -20 to +80°C (0 to 180°F).
Protection Degree: Control unit IP65 (Nema 4x, 12) and sensor IP67 (Nema 6P, 12).

Features:

Metal Sensitivity: Highest sensitivity with a sensor head made of corrosion-proof aluminum alloy.
Product Effect Library: Stores characteristics of up to 50 different products for quick learning and compensation.
Logging and Network Interface: RS232 for logging process data according to HACCP and optional RS485 network interface.
Signal Outputs: Includes metal relay changeover contact, metal alarm signal for PLC, and fault relay changeover contact.
Signal Inputs: Includes reject trigger, control air pressure of reject device, and remote metal reset push button.

Options:

Remote product selector switch.
Customized conveyor design and various belt types.
Belt control unit with frequency inverter.
Alarm flash light and horn.

Applications: Suitable for use in plastic recycling, rubber production, food-related industries, wood and paper processing, and general heavy industries.
