Product catalog summary
Overview: The METAL SHARK® BD is a metal detector designed for conveyor systems, manufactured by Cassel GmbH in Germany. It is known for its high sensitivity, stability, and ease of use, with over 5,000 installations worldwide.
No Maintenance Required: The device features automatic balance and calibration control, eliminating the need for routine manufacturer maintenance. It uses SMD technology for compact circuit design, allowing easy replacement by factory electricians if needed.
Intuitive Operation: The METAL SHARK® BD offers a user-friendly interface with essential information displayed. It includes a teaching menu for automatic product feature capture, a product library for storing up to 120 products, and password protection to prevent unauthorized use.
Sensitivity and Stability: The detector provides precise metal detection with digital noise filters and multi-channel technology, capable of detecting ferrous, non-ferrous, and stainless steel metals. It is designed for harsh environments with a sturdy sensor head encapsulated in epoxy.
Compliance and Validation: The device complies with HACCP and IFS standards, featuring performance validation prompts and operation history logs. It is compatible with SHARKNET® software for data documentation.
Wash-up Options: The METAL SHARK® BD offers LPW (IP66) and HPW (IP67) options for low and high-pressure wash-ups, respectively, ensuring durability in environments requiring frequent cleaning.
Specifications: The detector is housed in stainless steel, operates with a digital signal processor, and supports various input and output signals. It functions within a temperature range of -10 to +50°C and a humidity range of 30 to 85%.
Applications: Cassel supplies metal detection systems to industries such as food, plastics, pharmaceuticals, textiles, timber, and mining, with a significant portion of production exported globally.
See more

Catalog excerpts

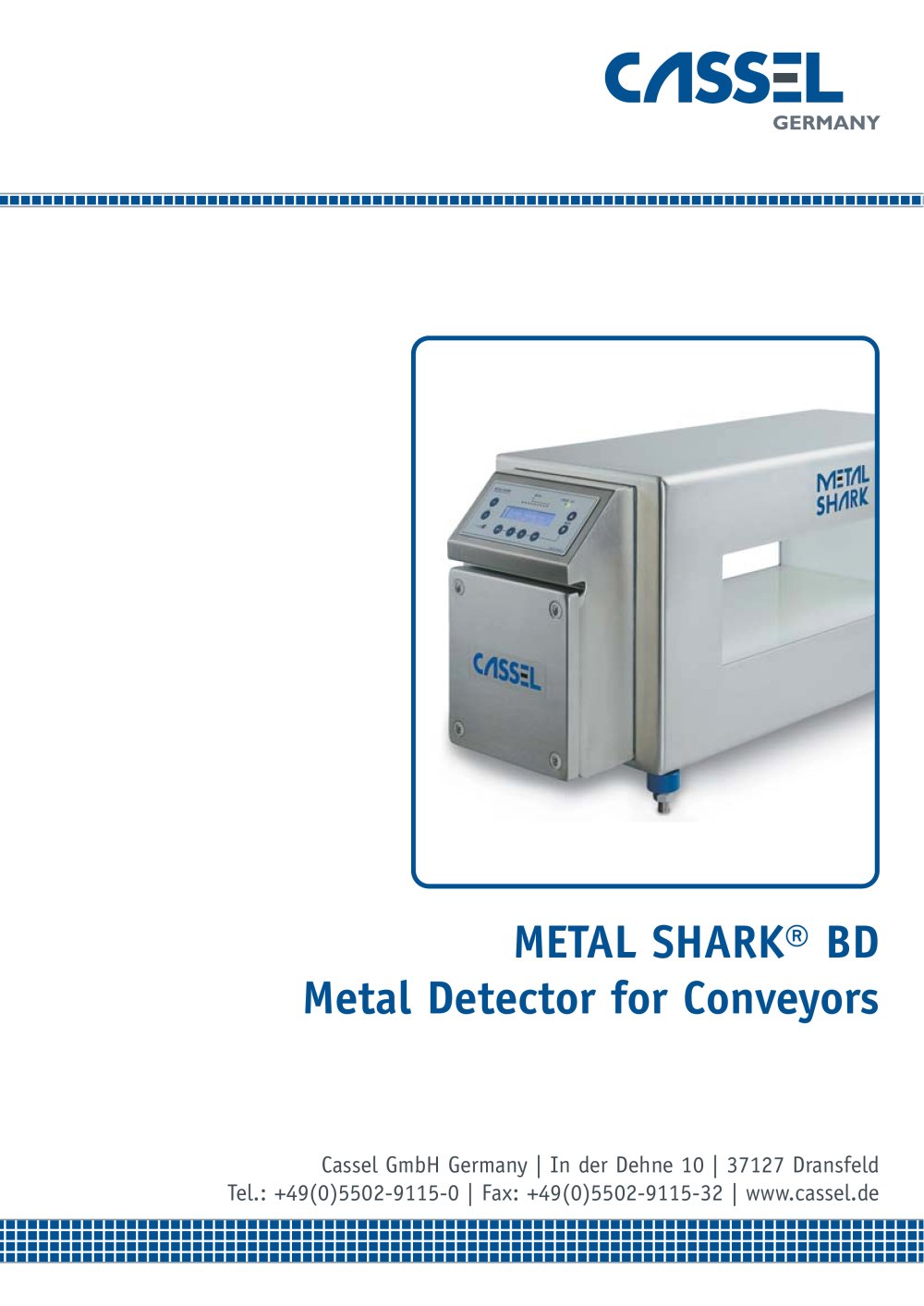

METAL SHARK BD Product Catalogue-1

Cassel GmbH Germany | In der Dehne 10 | 37127 DransfeldTel.: +49(0)5502-9115-0 | Fax: +49(0)5502-9115-32 | www.cassel.de >

 Open the catalog to page 1
METAL SHARK BD Product Catalogue-2

Phase Tracking product effects are com-pensated and readjusted in an intelligent way. Precise metal detection at highest level֖ Cassel has installed over 5,000 metal detectors all over the world. Local technical serv-ice is available in more than 40 countries performed by factory trained service support staff. Cassels strategy is offering our customers trustable high quality at low price (best product, best price, best service, best long-term performance). digital noise filters eliminate any undesired signals. Highest enduranceҖ Multi-channel technology the extra sturdy con-struction of the sensor...

 Open the catalog to page 2
METAL SHARK BD Product Catalogue-3

Ready for SHARKNET software ΖSHARKNETenables an automatic data documentation onto a Windows-based PC to fulfill HACCP and IFS standards. Operation history Ζ metal detections orchanges in parameter settings etc. are stored in a log list stating date and time. The list can be read on the display or exported via serial port. > Performance validation according toHACCP metal detectors are classified as criti- cal control points. Continuous checking is required to fulfill the standards. If desired our performance validation automatically prompts the operator to test the performance of the METAL SHARK֮...

 Open the catalog to page 3
METAL SHARK BD Product Catalogue-4

Cassel Metal Detectors SHARK椮 GF Fallrohr SHARK Checkweigher SHARKή HW SHARK PH Pharma SHARKή IN Liquid SHARKή IN MEAT > As a manufacturer Cassel is committed to highest standards of quality. For more thanten years our goal has been to ensure the quality of your products. Our reputation has been earned by protecting yours. We supply customers in different industries worldwide such as Foods, Plastics, Pharmaceuticals, Textile, Timber and Mining. Our headquarters and state of the art manufacturing facility are located near Hannoverin the heart of Germany. Each year we manufacture and deliver over...

 Open the catalog to page 4
