White Goods Clamp

White Goods Clamp
1 / 6 PagesView full catalog

White Goods Clamp

Product catalog summary
Overview: The document discusses the features and benefits of White Goods Clamps, designed to enhance productivity and reduce product damage in industries such as warehousing, beverage, white goods, appliance, and electronics. These clamps allow for palletless handling, improving warehouse space utilization.
Volumetric Force Control (VFC): The VFC system automatically adjusts clamping pressure based on the load's volume, reducing damage from excessive force. It includes sensors and a PLC computer to calculate and regulate the correct force, ensuring easy and safe movement of various loads without manual adjustments. The system improves productivity by maintaining constant speed and eliminating the need for three-position valves.
Types of Clamps:
  • Rotating Arm Clamp: Used for loading trailers with refrigerators, requiring a three-step operation.
  • Tipping Clamp: Versatile for handling various products, suitable for warehouse and trailer loading with a one-step operation.
  • Appliance Clamp with Forks: Known as the "shopping clamp," it allows for moving pallets and filling them by "shopping" around the warehouse.
Design Features: White Goods Clamps feature single or double articulation, thin arm profiles for visibility, and equalized clamp force distribution to reduce damage. They are equipped with durable, reversible rubber-faced pads and protected valves and cylinders for easy serviceability.
Additional Options: The document lists various optional features such as different opening ranges, pad configurations, bumpers, backrest styles, and advanced hydraulic and electric solenoid valves for enhanced functionality.
Key Benefits: The clamps offer improved productivity, reduced damage, excellent visibility, and smooth serviceability. They are designed for easy maintenance and durability, with features like low friction bearings and quick-change hydraulic couplers.
See more

Catalog excerpts

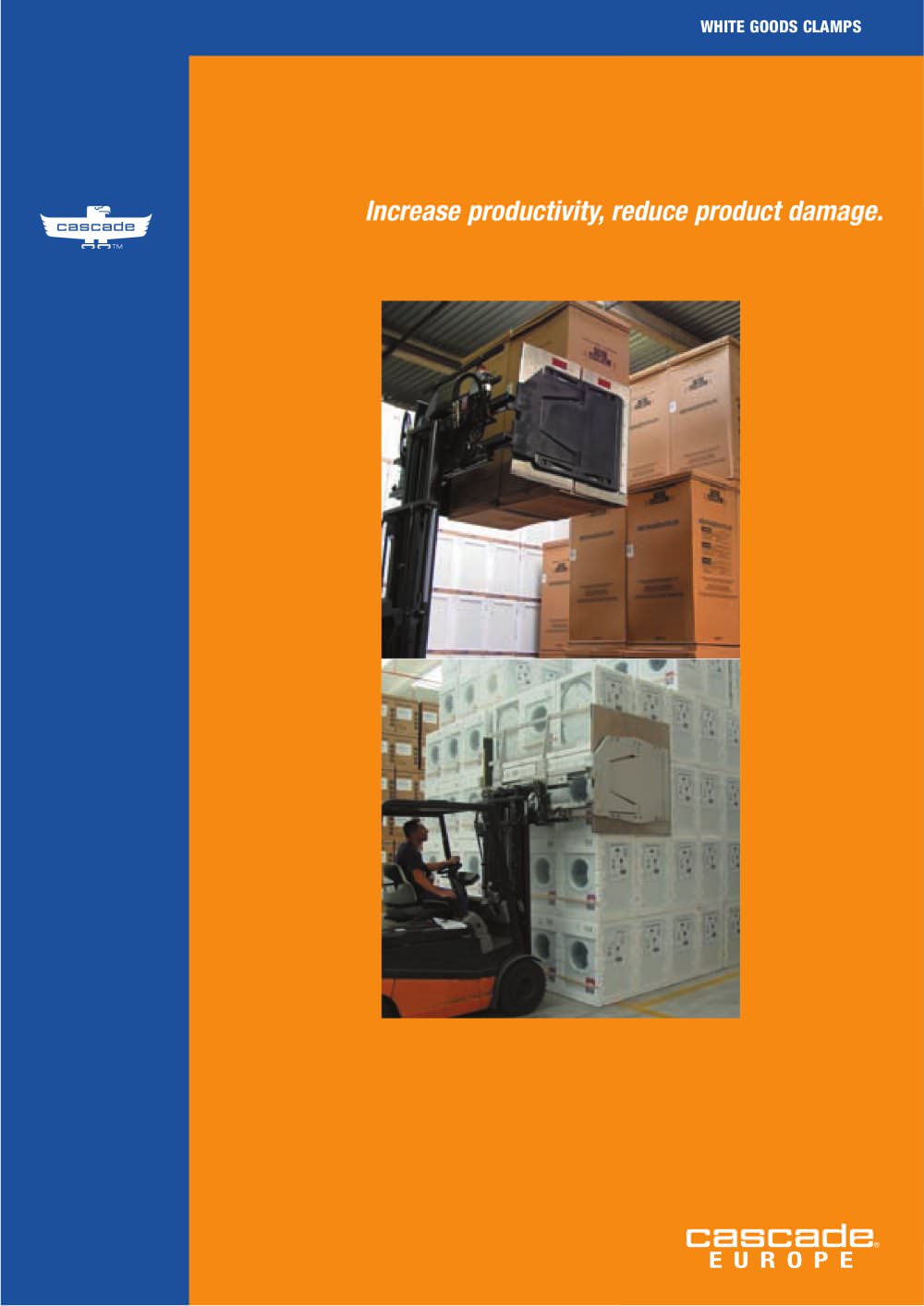

White Goods Clamp-1

WHITE GOODS CLAMPS Increase productivity,reduce product damage. >

 Open the catalog to page 1
White Goods Clamp-2

Tipping Clamp Can be used when handling a variety of products.More versatile than rotating arm clamp.Good for work in warehouse and trailer loading.Operation is one step. > Rotating Arm Clamp Appliance Clamp with Forks Designed to be used near loading trailer when T-loading refrigerators.Requires three steps:clamp and rotate,unclamp then reclamp before driving into the trailer. For applications that occasionally require the mov-ing of pallets.Also called the "shopping clamp" because you can start with an empty pallet and fill it by "shopping" around the warehouse. > 1. Sensors on the contactpads...

 Open the catalog to page 2
White Goods Clamp-3

Designed for the warehousing,beverage,white goods,appliance and electronics industries,white goods clamps allow palletless handling,which improves warehouse space utilization.Cascade offers a broad selection of carton clamps and white goods clamps for any application.With these features and a variety of options,the result is faster,safer and more precise handling,leading to improved productivity, less damage and happy customers. White Goods Clamps > Single articulation both arms.Preferred clamp for wide mix of products Good distribution of the clamping force Thin arm profile. size="-1">

 Open the catalog to page 3
White Goods Clamp-5

Low friction bearings are easily replaced. Thin arm profile permits knifing between loads. Arm design optimizes distribution of clamping force without effecting visibility. Large visibility windowimproves efficiency of the operator. >

 Open the catalog to page 5
White Goods Clamp-6

Four Position Pressure Regulator Single Pressure Setting Relief Valve The pressure regulator with three pressuresettings plus relief valve permits using the minimum hydraulic pressure required to satisfactorily clamp a load. Limits hydraulic pressure in 1 line toattachment.Two valves required per auxiliary function. Quick Change Mounting Kits Bi-Directional Pressure Relief Valve Increases versatility by allowing attachments to be easily interchanged. Allows single valve to be used for each auxiliary function to limit hydraulic pressure to attachment. Quick-Change hydraulic couplers > Anti-Spiking...

 Open the catalog to page 6
