CASAPPA

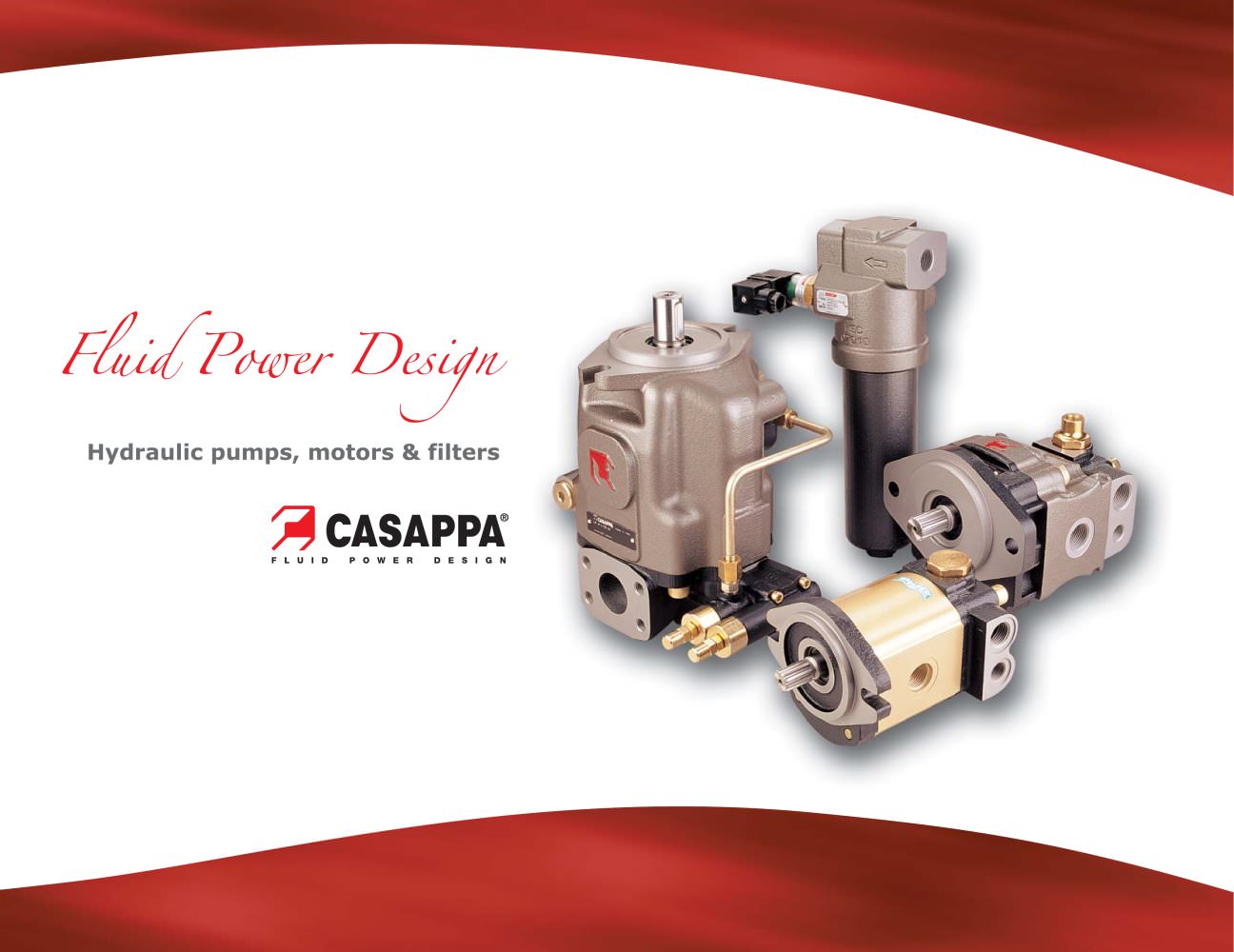

Products Presentation

Products Presentation

Product catalog summary

Company Overview: Casappa, founded in 1952, has grown from a hydraulic pump manufacturer to a major industrial player. It is part of Finrel S.p.A., which includes seven fully owned companies and eight with equity stakes. With over 1100 employees, Casappa reported sales of 195 million Euros in 2006. The company emphasizes employee skill development and R&D, focusing on hydraulic system components for various sectors such as construction, industrial vehicles, material handling, agriculture, and industry.

Product Offerings: Casappa provides a diverse range of hydraulic pumps, motors, and filters, integrating functions like valve controls to optimize system dimensions and costs. The company prioritizes quality and professionalism, adhering to ISO standards.

Global Presence: Casappa operates globally with subsidiaries in Korea, China, France, the USA, and India, under the Walvoil Fluid Power brand.

Technical Specifications: Casappa's products include aluminum and cast iron body hydraulic gear pumps and motors, available in various displacements. They can handle maximum peak pressures up to 4350 psi (300 bar) and speeds up to 4000 min-1, featuring high efficiencies, low noise emissions, and integrated outboard bearings for heavy-duty applications.

Innovations: The WHISPER technology, protected by international patents, is used in external gear pumps for low noise emissions. Casappa also offers custom designs and various valve options, including anti-cavitation, maximum pressure relief, priority, and by-pass electric valves.

Product Variants: Casappa's product lines include POLARIS, WHISPER, KAPPA, and New KAPPA Compact, each with different specifications and built-in valve options. They also offer gear flow dividers made of high resistance aluminum alloy and cast iron, used as flow equalizers, dividers, and pressure intensifiers.

Overview: The document details specifications and features of various hydraulic pumps and filtration systems, including fixed and variable displacement axial piston pumps, bent axis piston pumps, and hydraulic hand pumps, as well as fluid filtration products.

Fixed Displacement Axial Piston Pumps: These pumps come in different models with varying displacements and maximum speeds. The MAGNUM series offers high continuous pressure, suitable for PTO applications in vehicles, with features like low noise levels, compact design, and high efficiency.

Variable Displacement Axial Piston Pumps: The PLATA and MVP series are designed for open circuit applications, providing energy savings, low noise emission, and multiple control options. They are compact and suitable for direct mounting on engine motors.

Hydraulic Hand Pumps: Double acting hand pumps provide flow in both directions of lever movement, with a modular design for flexibility, suitable for auxiliary or emergency applications.

Fluid Filtration: Ikron specializes in hydraulic filters, offering a wide range of suction, return, and in-line filters. The company adheres to ISO 9001:2000 standards, ensuring high-quality products. Filters are available with various media and degrees of filtration, suitable for different pressure levels and flow rates.

Key Features and Specifications:

Max. peak pressure for pumps up to 5800 psi (400 bar).
Max. speed for pumps up to 3000 min-1.
Displacement ranges for pumps from 0.48 in3/rev to 6.71 in3/rev.
Filtration systems include clogging indicators and various filter media options.

Catalog excerpts

Luciano and Renato Casappa >

Open the catalog to page 4

Casappa Hydraulics LLC (Korea)100%Casappa Shanghai Rep. Office (China)100% Walvoil Fluid Power (France)100%Walvoil Fluid Power (China)100%Walvoil Fluid Power (Korea)100% Walvoil Fluid Power (USA)100%Walvoil Fluid Power (India)100% >

Open the catalog to page 5

Gear pumps and motors built in three pieces with anextruded body in high resistance aluminium alloy. The wide choice of shafts, flanges and ports, in compliance with all international standards (SAE, DINand EUROPEAN) allow for their use in an infinite varietyof applications. Displacements from 0.07 in High efficiencies ՕIntegrated outboard bearings for heavy duty applications Multiple units available in standard version, common inlet and separated stages Օ Electro-hydraulic fan drive system Custom design ՕAnti-cavitation valves Maximum pressure relief valves ՕPriority valves ՓLoad sensing priority...

Open the catalog to page 6

Gear pumps built in three pieces with an extrudedbody in high resistance aluminium alloy.WHISPER is a new and original technology protectedby international patents and applied to a family of external gear pumps that feature low noise emissions. The wide choice of shafts, flanges and ports, in compliance with all international standards (SAE, DINand EUROPEAN) allow for their use in an infinite varietyof applications. Displacements from 0.07 in > 3 /rev (96,85 cm > 3 /rev) available in groups 10,20 and 30 Max. peak pressure up to 4350 psi (300 bar)Max. speed up to 4000 min > -1 High efficiencies...

Open the catalog to page 8

Gear pumps and motors made of cast iron in twopieces. A rigid and compact structure that makes it possibleto incorporate a number of functions in a limitedspace. Wide range of displacements: from 0.30 in High operating pressure ՕHigh efficiency at high temperature Low noise emission ՕExceptional working life expectancy Solid and compact design ՕCustom design Antishock and anti-cavitation valves ՕPriority valves ՓLoad Sensing priority valves ԕBy-pass electric valves > 3 3 3 3 /rev (4,95cm /rev) to 9,20 in /rev (150,79 cm /rev) avaiablein groups 20, 30 and 40. Max. peak pressure up to 4785 psi...

Open the catalog to page 10

Gear pumps made of cast iron in two pieces.Ideal for truck application Displacements from 0.50 in High performance also at very low speed ՕDifferent ports position availability Low noise emission ՕShaft seal system no leakage guarantee Modular design ՕDirect mounting on the PTOs > 3 3 3 /rev (8,26 cm > 3 /rev) to9.20 in /rev (150,79 cm /rev) available in groups 20,30, 35 and 40. Max. peak pressure up to 4713 psi (325 bar)Max. speed up to 3000 min > -1 size="-1">

Open the catalog to page 12

Anti-cavitation valves, maximum pressure relief valves,priority valves and load sensingӔ priority valves builtin the following series of gear pumps and motors: POLARIS, WHISPER, KAPPA, New KAPPA Compact Reduced overall dimensions ՕSimplified plant design Wide choices of ports position >

Open the catalog to page 15

Giuliano BertelliChief Executive Officer >

Open the catalog to page 26

Every product is individually packaged with instructionsfor use and labeled, to ensure efficient warehousemanagement.Ikron offers a wide choice of suction filters, returnfilters, in line filters, spin-on, medium and high pressure filters. Clogging indicators, level and temperaturegauges, and filler breathers. >

Open the catalog to page 27

Filter type Nominal flow up to Filter media Degree of filtration US gpm (l/min) Phosphor bronzeSteel 60-125 90-250m HF 410 79.3 (300) >

Open the catalog to page 28

Filter type Nominal flow up to Working pressure Filter media Degree of filtration US gpm (l/min) Micro-fibre glassPhosphor bronzeSteelStainless steelCelluloseReinforced cellulose 3-6-10-2560-125 90-2502510-25 10-25 m HF 502HF 550 211.4 (800)158.5 (600) 116 (8)psi (bar) >

Open the catalog to page 29

Filter type Nominal flow up to Working pressure Filter media Degree of filtration US gpm (l/min) psi (bar)116 (8) m3-6-10-2560-12590-2502510-25 10-25 Micro-fibre glassPhosphor bronzeSteelStainless steelCelluloseReinforced cellulose HF 547HF 554 52.8 (200) >

Open the catalog to page 30

Filter type Nominal flow up to Working pressure Filter media Degree of filtration US gpm (l/min) HF 570HF 575 Micro-fibre glassCellulose 10-25 10-25m 264.2 (1000) 116 (8)psi (bar) >

Open the catalog to page 31

Filter type Nominal flow up to Working pressure Filter media Degree of filtration US gpm (l/min) HF 620HF 625HF 650 105.7 (400)52.8 (200)37 (140) 174 (12)363 (25)508 (35)psi (bar) Micro-fibre glassSteelCelluloseMicro-fibre glassReinforced cellulose 10-2560-90-12510-253-6-10-16-2510-25 m >

Open the catalog to page 32

Filter type Nominal flow up to Working pressure Filter media Degree of filtration US gpm (l/min) Micro-fibre glassReinforced cellulose 3-6-10-2510-25m HF 690 21.1 (80) 1595 (110)psi (bar) HF 7255075 (350)Micro-fibre glassStainless steel3-6-10-2510-2510.6 (40) HF 735HF 745 HF 7604640 (320)4060 (280) 6090 (420)Micro-fibre glass3-6-10-2539.7 (150)23.8 (90)105.7 (400) >

Open the catalog to page 33

Type Air flow up to Degree of filtration US gpm (l/min) HB 50 - HB 70HB 120AF 105 126.8 (480)422.7 (1600)264.2 (1000) Filler breathersAir filters 5-1010-40m AF 1065-10-25792.6 (3000) >

Open the catalog to page 34

Level and temperature gauges - Pressure gauges - Pressure/Vacuum gaugesclogging indicators: visual, electrical, visual differential and electrical visual differential >

Open the catalog to page 35
