HYDRAULIC CRAWLER DRILL P E R F O R AT R I C E I D R A U L I C A

 Open the catalog to page 1

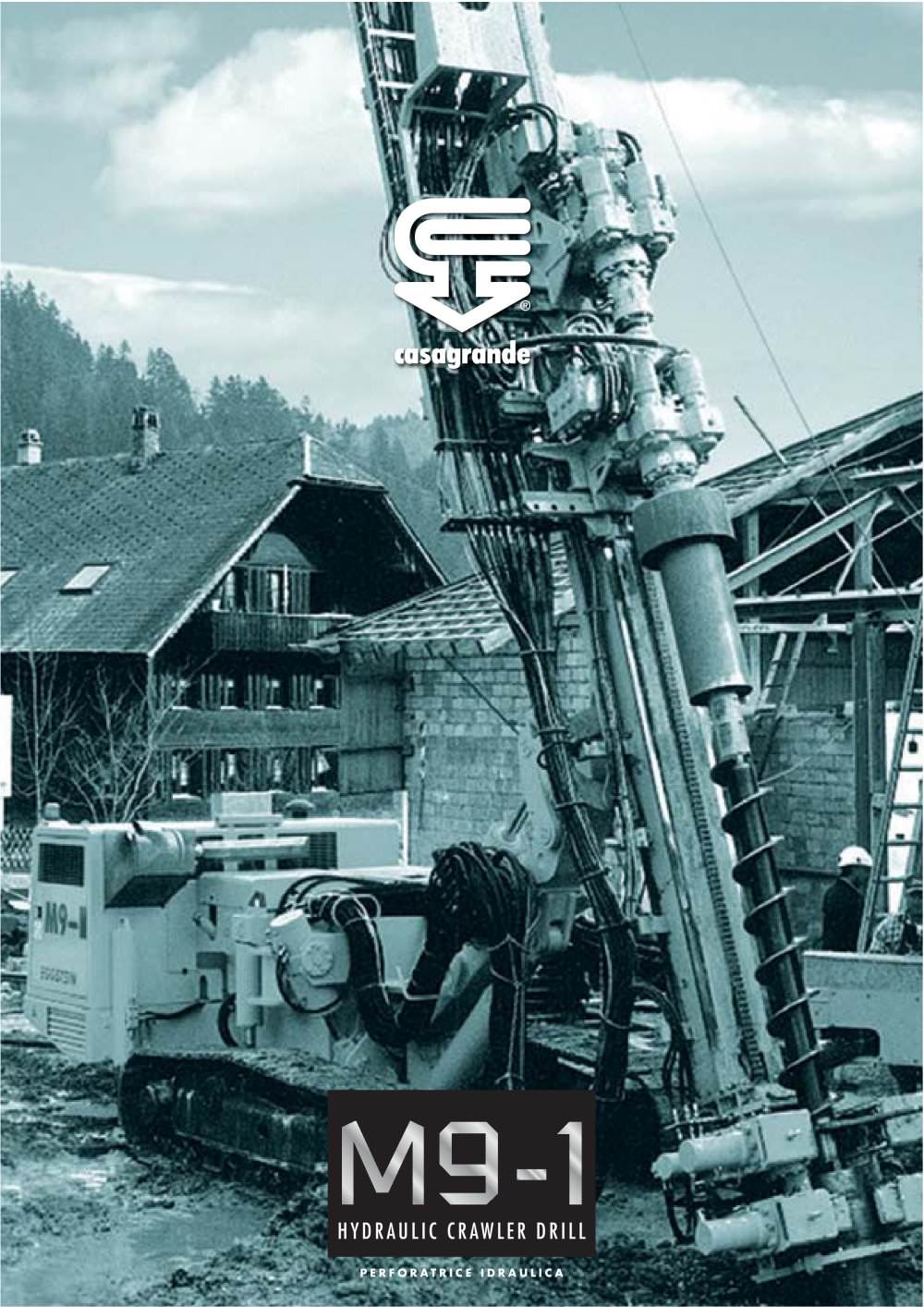

HYDRAULIC CRAWLER DRILL The M9-1 hydraulic crawler drill, another step forward in our production of the world’s best drilling rigs. Tougher, more powerful, more versatile than before, this machine provides better performance in the execution of all small bore drill holes. The key to its high maneuverability is in the kinematics of the new mast and mast support system which make it easy to set-up even in the most conned sites. The control panels and supports have been carefully engineered for comfort and good all-round operator visibility. A model of efciency and performance, the M9-1 with...

 Open the catalog to page 2

TECHNICAL SPECIFICATIONS DATI TECNICI HYDRAULIC CRAWLER DRILL CARATTERISTICHE CARRO Overall width of undercarriage Larghezza sottocarro Track shoes width Larghezza pattini Overall track length Lunghezza cingoli Travel speed Ground pressure Pressione specica al suolo Oscillating tracks Oscillazione cingoli Fuel tank capacity Capacità serbatoio gasolio Hydraulic oil tank capacity Capacità serbatoio olio idraulico Mast length Stroke of rotary head Extraction force Crowd force Lunghezza mast Corsa testa di rotazione Spinta sull’utensile Clamping force ROTARY HEAD Peso attrezzatura* * Depending...

 Open the catalog to page 5

DIMENSIONS DIMENSIONI HYDRAULIC CRAWLER DRILL CYLINDER FEED CYLINDER FEED DOPPIA TESTA DOUBLE ROTARY HEAD TRANSPORT DIMENSIONS DIMENSIONI DI TRASPORTO

 Open the catalog to page 7

JET GROUTING ARRANGEMENT ALLESTIMENTO JET GROUTING depth / prof. HYDRAULIC CRAWLER DRILL * Without jib / Senza falchetto

 Open the catalog to page 9

MAST MOVEMENTS MOVIMENTAZIONI MAST HYDRAULIC CRAWLER DRILL

 Open the catalog to page 10

CASAGRANDE CRAWLER DRILLS RANGE All data contained in this brochure are indicative and does not take power losses into account. All data can be changed without notice. Tutti i dati riportati su questo catalogo sono indicativi e non considerano perdite di carico. Tali dati possono variare senza preavviso. CASAGRANDE S.P.A. Via A. Malignani, 1 • IT 33074 Fontanafredda • Pordenone • Italy Tel. (+39) 0434 9941 • Fax (+39) 0434 997009 www.casagrandegroup.com • info@casagrandegroup.com
