Technical Specifications:

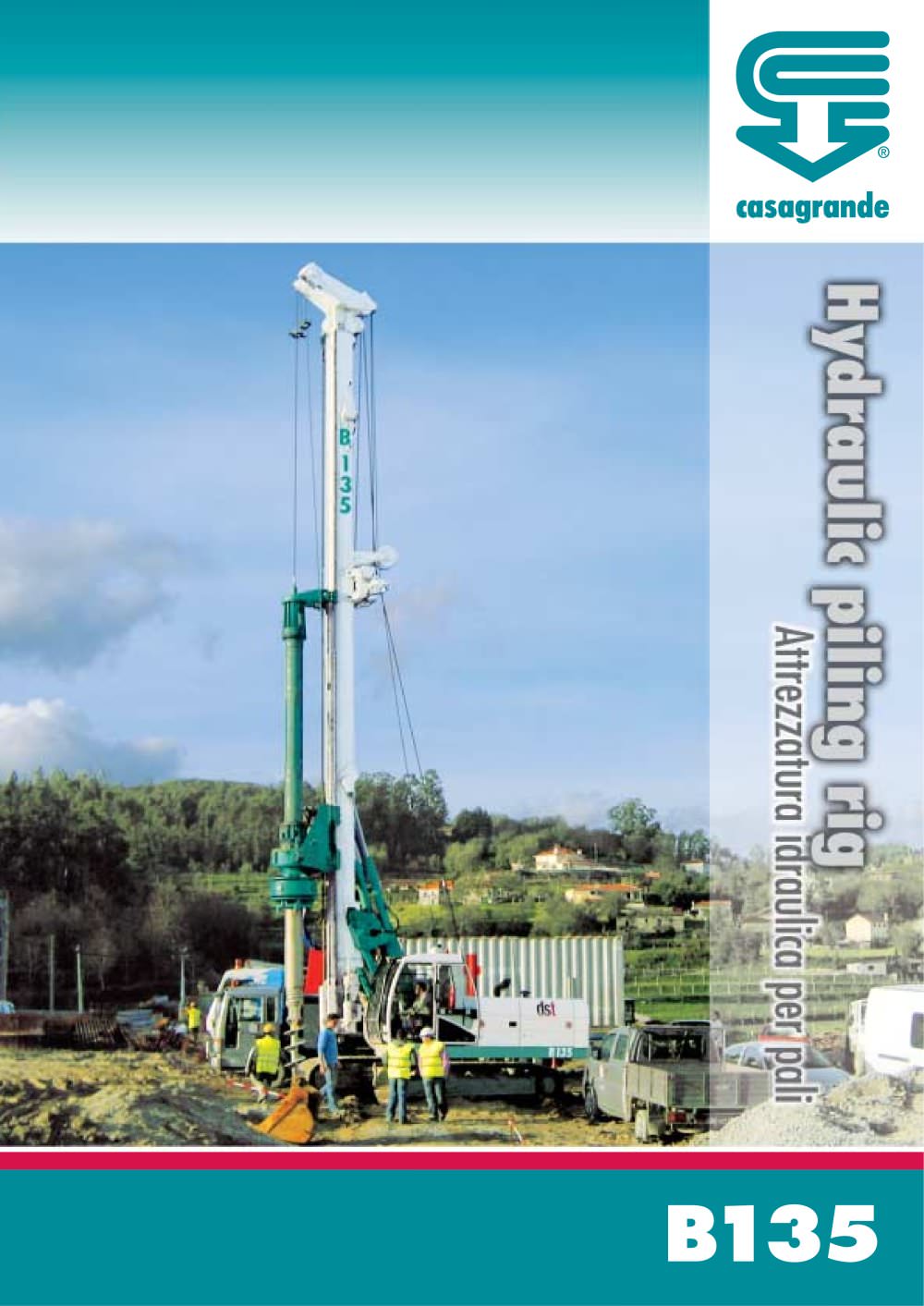

The document provides detailed technical specifications for the B135 construction equipment. Key performance metrics include maximum piling depth of 164 ft (50 m) and diameter of 47 in (1200 mm). For continuous flight auger (CFA), the maximum depth is 62 ft (19 m) with a diameter of 31.5 ft (800 mm). Diaphragm wall specifications include a maximum depth of 94 ft (28.7 m) and trench dimensions of 8.2 ft (2500 mm) in length and 31.5 ft (800 mm) in width.

Undercarriage Features:
The undercarriage has a width of 8.2 ft (2500 mm) with retracted tracks and 12.1 ft (3700 mm) with extended tracks. The tracks are 14.5 ft (4500 mm) long, and the shoe width is 24 in (600 mm).

Engine and Winches:
The equipment is powered by a Cummins QBS 6.7 engine with 220 HP (164 kW) at 2200 rpm. The main winch has a maximum line pull of 30,350 lbs (135 kN) and a line speed of 236 ft/min (72 m/min). The auxiliary winch has a maximum line pull of 15,750 lbs (70 kN) and a line speed of 230 ft/min (70 m/min).

Rotary Head and Weight:
The rotary head has a maximum torque of 82,607 lbs ft (112 kNm) and a drilling speed of 33 rpm. The equipment weighs approximately 88,200 lbs (40,000 kg) in working condition.

Optional Features:
Optional kits include a low-temperature starting kit, hydraulic circuit for casing oscillator, auxiliary lights, high-pressure water cleaning pump, cabin air-conditioning/heating system, and video units for monitoring. Additional features include a star type auger cleaner, hydraulic vibrator for cages, and Lutz instrumentation for measuring and recording various parameters such as drilling depth and concrete pressure.

General Arrangement and Dimensions:
The document outlines the general arrangement and dimensions, including nominal kelly bars length and maximum ground clearance. It also details the transport mode specifications for the CFA setup.
