The inno!weight® is a complete weighing system designed for rapid and precise weighing of vehicles up to 3,200 kg. It includes four wheel load scales, an intuitive app for visualization, and is conveniently stored in a trolley case for easy transport.
- Measuring Range: 0 – 800 kg per scale
- Overload Resistance: 150% of Full Scale
- Operating Temperature: -10 to +60°C (14 to 140°F)
- IP Protection Class: IP 42
- Power Supply: 2x AA batteries (1.5V)
- Battery Life: 200 hours
- Radio Frequency: 2.4 GHz BT-BLE
- Application Surface: Level and solid ground
- Scale Dimensions: 380 x 380 x 33 mm
- Case Dimensions: 425 x 275 x 575 mm
- Compatible with iOS, Android, and Windows
- Modes include Live, Center of Gravity, Details View, Axle View, and Corner Balancing
- Light and dark mode options
- Tare-function and battery status display
- Unit selection between kg, lb, and %
- Language options: English and German
The system features a lightweight die-cast aluminum structure and low profile design, eliminating the need for additional ramps. It offers flexibility with standard battery power and a runtime of over 200 hours. The system uses a floating master BT-BLE standard for stable radio connections, allowing greater range to mobile devices.
The app allows users to save weighing records on mobile devices, create comprehensive documentation, and retrieve records at any time for reprinting or forwarding. It supports multiple device types including smartphones, tablets, and PCs.
Cartesy GmbH, Am Industriepark 11, 84453 Mühldorf a. Inn, Germany. Phone: +49 8631 1869-0, Email: [email protected]
Catalog excerpts

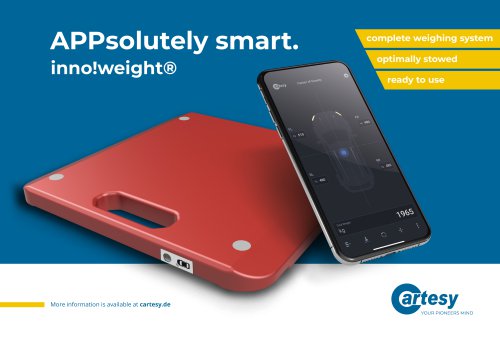

APPsolutely smart. inno!weight® More information is available at cartesy.de complete weighing system optimally stowed ready to use
Open the catalog to page 1
The groundbreaking all-in-one solution for rapid weighing of vehicles up to 3,200kg of total weight! The inno!weight® weighing system with a total capacity of 3,200kg consists of four wheel load scales, an intuitive app as visualization and is safely stowed in a trolley case for easy transport. Connection cable? Say good-bye to that! We use on an intelligent floating master BT-BLE standard for a stable radio connection with greater ranges to your mobile device. Due to the lightweight die-cast aluminum structure and low profile design, inno!weight® wheel load scales do not require additional ramps...
Open the catalog to page 2
Smartphone, tablet or PC? You decide! Features: • Available for iOS, Android and Windows • Modes: Live, Center of Gravity, Details View, Axle View, Corner Balancing • Light mode and dark mode • Tare-function • Battery status • Selection between kg / lb / % unit • Language selection: English / German Scan QR Code to get the inno!weig
Open the catalog to page 3
Cartesy GmbH Am Industriepark 11 84453 Mühldorf a. Inn Technical changes in the course of further development, misprints and errors excepted. Product images may vary slightly. Copyright © 2021
