RESISTOR OPAL High performance taps

Product catalog summary

Specifications:
Red ring taps are designed for tapping tough steels (up to 1000 N/mm²), titanium, and nickel alloys. The recommended coolant is full cutting oil or an emulsion at 4-5% concentration.

Procedures:
For optimal performance, the use of a coolant is advised during the tapping process.

Standards:
The taps conform to DIN 371 standards.

Recommendations:
Use the specified coolant types to ensure efficient tapping and prolong tool life.

Technical Data:

Various tap sizes are provided, with specifications such as diameter, length, and other dimensions.
Materials include soft steel, structural steel, hardening steel, automatic steel, stainless steel, unalloyed titanium, titanium alloys, unalloyed nickel, and nickel alloys.

Performance Parameters:
Different materials have specific hardness values (HV) and tensile strengths (N/mm²), which are crucial for selecting the appropriate tap.

Contact Information:
UTENSILERIA CARMON s.r.l., Via Matteotti, 162, 25014 Castenedolo (Bs) ITALY. Tel. +39 030 2130555, Fax +39 030 2731634, Website: www.carmon.it, Email: [email protected]

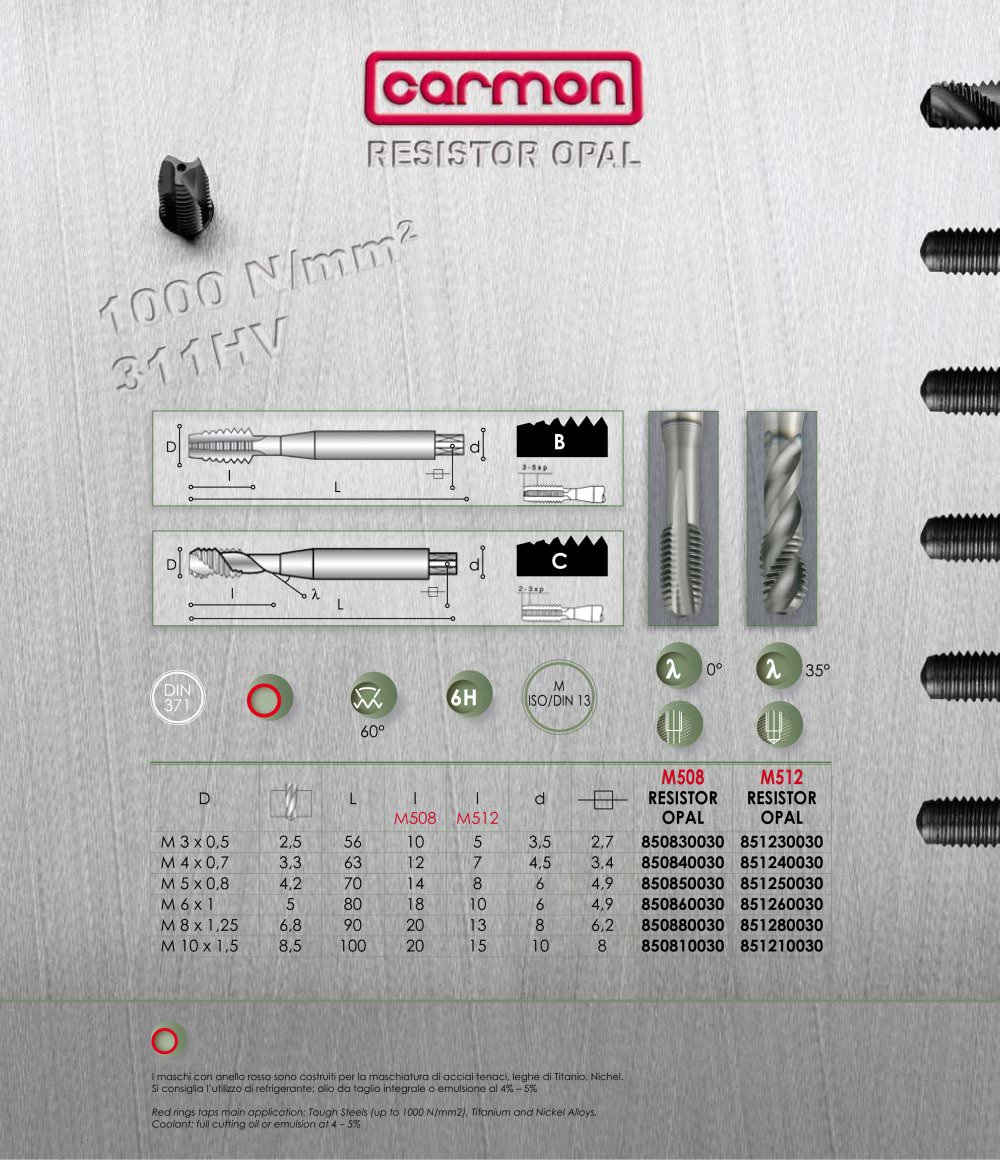

Catalog excerpts

M508 M512 M 3 x 0,52,5561053,52,7 850830030851230030 M 4 x 0,73,3631274,53,4 850840030851240030 M 5 x 0,84,27014864,9 850850030851250030 M 6 x 1580181064,9 850860030851260030 M 8 x 1,256,890201386,2 850880030851280030 M 10 x 1,58,51002015108 850810030851210030 > I maschi con anello rosso sono costruiti per la maschiatura di acciai tenaci, leghe di Titanio, Nichel.Si consiglia lВutilizzo di refrigerante; olio da taglio integrale o emulsione al 4% 5% Red rings taps main application: Tough Steels (up to 1000 N/mm2), Titanium and Nickel Alloys.Coolant: full cutting oil or emulsion at 4 ֖ 5% size="-3">

Open the catalog to page 1

rpm=( mt/min x 1000) / ( D x 3,14 ) =( mt/min ) M508 M512 TIPO DI ACCIAIO > 2 TYPE OF STEEL N/mm HV > mt/min mt/min Acciai teneri Soft steel > 500160 60605757 2727 1717 2727 2727 4040 3030 4040 2727 Acciai da costruzione Structural steel > 700220 Acciai da tempra Hardening steel > 900280 COMMON STEEL ACCIAI COMUNI Acciaio automatico Automatic steel > 1000311 Acciaio automatico Automatic steel > 850268 Austenitico > 850268 ACCIAI INOX STAINLESS STEEL Austenitic Titanio non legato Unalloyed titanium > 500160 TITANIO TITANIUM Leghe di titanio Titanium alloys > 900280 Nichel non legato Unalloyed...

Open the catalog to page 2
