Product catalog summary
Specifications:

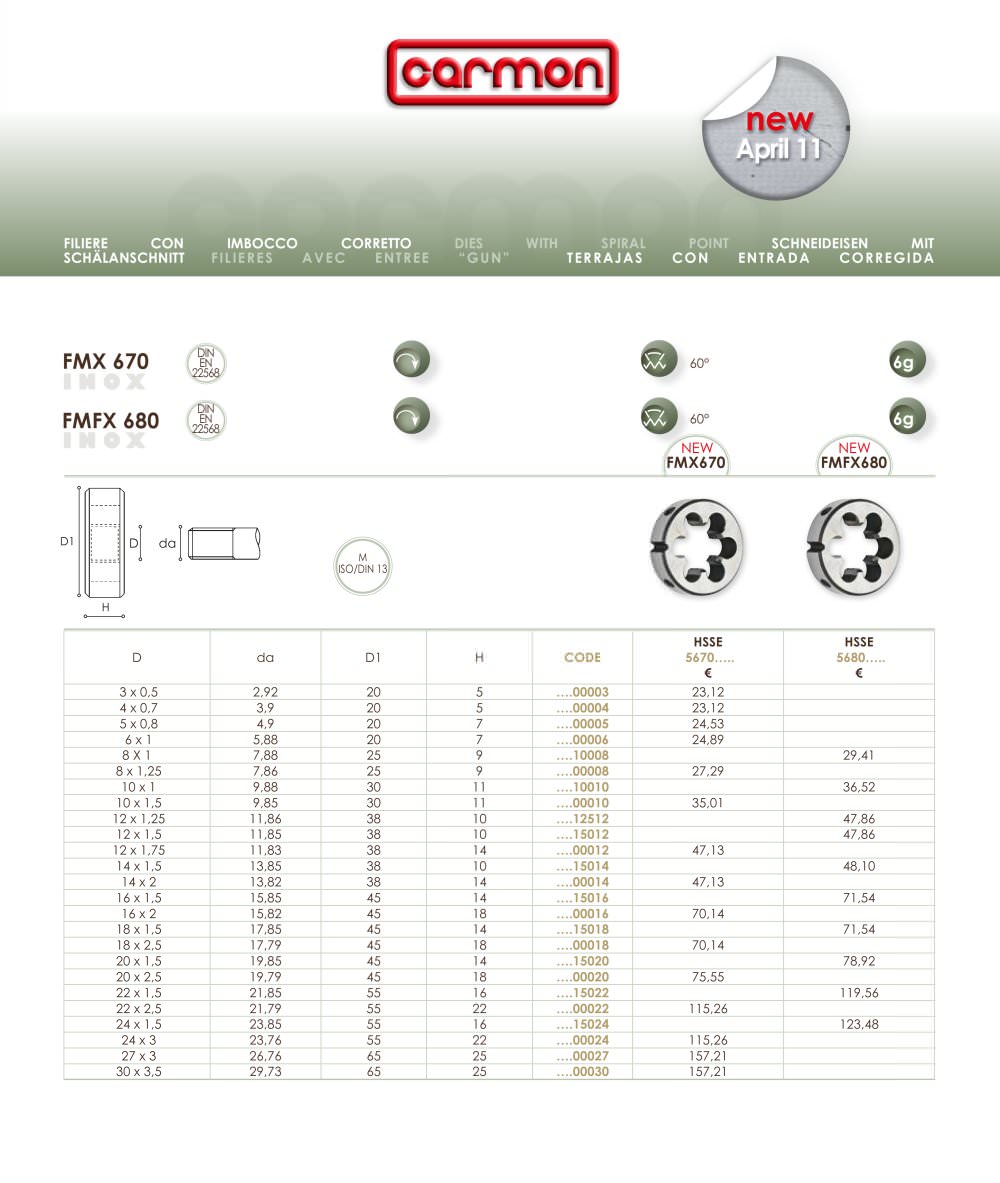

The document provides detailed specifications for various types of dies and taps, including dimensions, materials, and pricing. The dies are available in different sizes, with specifications such as diameter (D), pitch (da), and height (H). The materials used include HSSE and HSS, with specific codes assigned to each product.

Product Listings:
The document lists products with their respective sizes and prices. For example, a die with dimensions 3 x 0.5 has a price of €23.12, while a larger die, such as 30 x 3.5, is priced at €157.21. The listings include both metric and imperial sizes, catering to different standards like ISO/DIN and ANSI.

Standards and Norms:
The products adhere to various international standards, including DIN 1987, DIN EN 22568, and DIN EN 24231. These standards ensure compatibility and quality across different markets.

Availability and Customization:
Products are available in stock with options for reduced shank diameters (13 x 30 mm and 10 x 30 mm). Custom orders can be placed with a minimum quantity of 10 pieces, maintaining the same price as the standard diameter.

Additional Information:
The document also includes contact information for Utensileria Carmon S.r.l., the company responsible for these products, located in Castenedolo, Italy. They offer a range of tools and are open to inquiries through their website and contact numbers.
See more

Catalog excerpts

"Range expansion" Carmon-4

DIN 104 CR 338 N 25°-30° 118° STANDARD d h8 L l CODE HSS 5104….. € 13,5 160 108 ….01350R 18,62 14 160 108 ….01400R 18,62 14,5 169 114 ….01450R 21,08 15 169 114 ….01500R 21,08 15,5 178 120 ….01550R 24,21 16 178 120 ….01600R 25,50 16,5 184 125 ….01650R 27,59 17 184 125 ….01700R 27,59 17,5 191 130 ….01750R 30,72 18 191 130 ….01800R 30,72 18,5 198 135 ….01850R 35,14 19 198 135 ….01900R 35,14 19,5 205 140 ….01950R 37,92 20 205 140 ….02000R 40,93 Punte Corte Twist Drills, JOBBER Length KURZE Spiralbohrer Forets Courte Brocas Corta 104CR NEW D I ä Disponibili a magazzino con codolo ridotto Diam 13 x...

 Open the catalog to page 4
